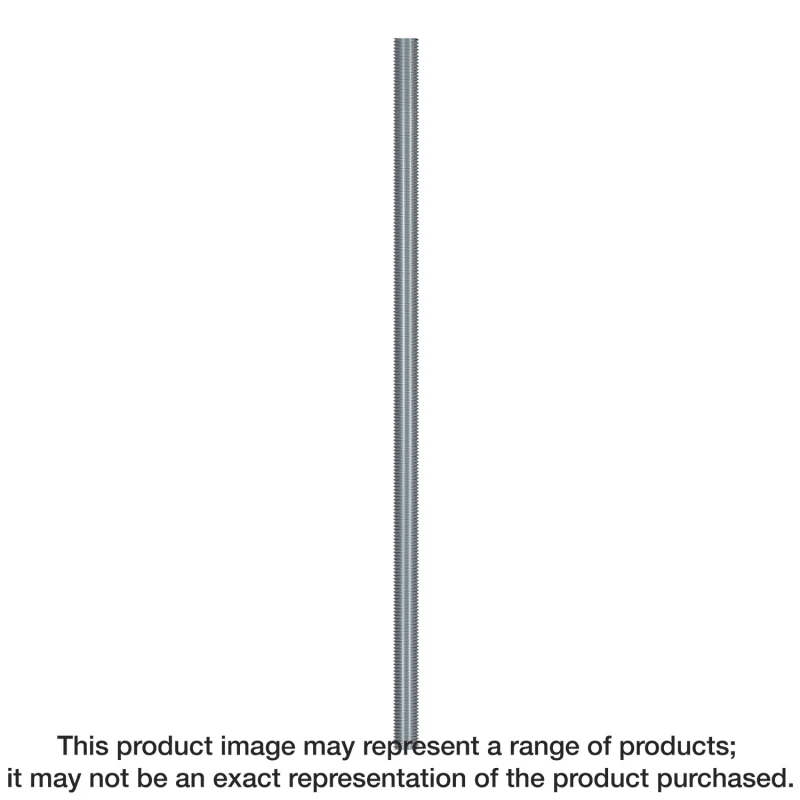

Simpson Strong-Tie ATR1-3/8X108 ATR 1-3/8 in. x 108 in. All-Thread Rod
Strong-Rod Systems

Simpson Strong-Tie ATR1-3/8X108 ATR 1-3/8 in. x 108 in. All-Thread Rod

SKU: ATR1-3/8X108
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

The Simpson Strong-Tie® ATR is a fully-threaded rod designed for tension transfer. These rods are threaded along their entire length and are ideal for a variety of applications. The ATR rod comes in a variety of sizes from 3/8-in. diameter up to 2-in. diameter.

Available Sizes & Options

SKUProductStatus
ATR1-3/8X108Simpson Strong-Tie ATR1-3/8X108 ATR 1-3/8 in. x 108 in. All-Thread Rod CurrentAvailable
ABL4-1Simpson Strong-Tie ABL4-1 ABL Anchor Bolt Locator with 1/2 in. NutAvailable
ABL5-1Simpson Strong-Tie ABL5-1 ABL Anchor Bolt Locator with 5/8 in. NutAvailable
ABL6-1Simpson Strong-Tie ABL6-1 ABL Anchor Bolt Locator with 3/4 in. NutAvailable
ABL7-1Simpson Strong-Tie ABL7-1 ABL Anchor Bolt Locator with 7/8 in. NutAvailable
ABL8-1Simpson Strong-Tie ABL8-1 ABL Anchor Bolt Locator with 1 in. NutAvailable
ABL9-1Simpson Strong-Tie ABL9-1 ABL Anchor Bolt Locator with 1-1/8 in. NutAvailable
ATR1-1/2X108Simpson Strong-Tie ATR1-1/2X108 ATR 1-1/2 in. x 108 in. All-Thread RodAvailable
ATR1-1/2X120Simpson Strong-Tie ATR1-1/2X120 ATR 1-1/2 in. x 120 in. All-Thread RodAvailable
ATR1-1/2X132Simpson Strong-Tie ATR1-1/2X132 ATR 1-1/2 in. x 132 in. All-Thread RodAvailable
ATR1-1/2X144Simpson Strong-Tie ATR1-1/2X144 ATR 1-1/2 in. x 144 in. All-Thread RodAvailable
ATR1-1/2X72Simpson Strong-Tie ATR1-1/2X72 ATR 1-1/2 in. x 72 in. All-Thread RodAvailable
ATR1-1/2X84Simpson Strong-Tie ATR1-1/2X84 ATR 1-1/2 in. x 84 in. All-Thread RodAvailable
ATR1-1/2X96Simpson Strong-Tie ATR1-1/2X96 ATR 1-1/2 in. x 96 in. All-Thread RodAvailable
ATR1-1/4X108Simpson Strong-Tie ATR1-1/4X108 ATR 1-1/4 in. x 108 in. All-Thread RodAvailable
ATR1-1/4X120Simpson Strong-Tie ATR1-1/4X120 ATR 1-1/4 in. x 120 in. All-Thread RodAvailable
ATR1-1/4X132Simpson Strong-Tie ATR1-1/4X132 ATR 1-1/4 in. x 132 in. All-Thread RodAvailable
ATR1-1/4X144Simpson Strong-Tie ATR1-1/4X144 ATR 1-1/4 in. x 144 in. All-Thread RodAvailable
ATR1-1/4X18Simpson Strong-Tie ATR1-1/4X18 ATR 1-1/4 in. x 18 in. All-Thread RodAvailable
ATR1-1/4X24Simpson Strong-Tie ATR1-1/4X24 ATR 1-1/4 in. x 24 in. All-Thread RodAvailable
ATR1-1/4X36Simpson Strong-Tie ATR1-1/4X36 ATR 1-1/4 in. x 36 in. All-Thread RodAvailable

Product Details

Key Features

  • Precut for convenience
  • Models available in standard-strength material
  • UNC Class 2A thread specifications

Material

  • ASTM F1554 Grade 36 or ASTM A307 Grade A; Fu = 58 ksi

Finish

  • Uncoated black steel

Installation

  • When placing the rod as part of the ATS run, the most commonly used procedure involves dropping in (or pushing up) the rod through the drilled holes in the flooring system after framing is completed
  • Holes in sole/top plates and floor system shall be drilled 1/4" larger than the rod diameter
  • Drilled holes through the sole/top plates and flooring system should be completed with one continuous drilling action
  • See installation video for further description
