Simpson Strong-Tie ABL4-1 ABL Anchor Bolt Locator with 1/2 in. Nut
Strong-Rod Systems

Simpson Strong-Tie ABL4-1 ABL Anchor Bolt Locator with 1/2 in. Nut

SKU: ABL4-1
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

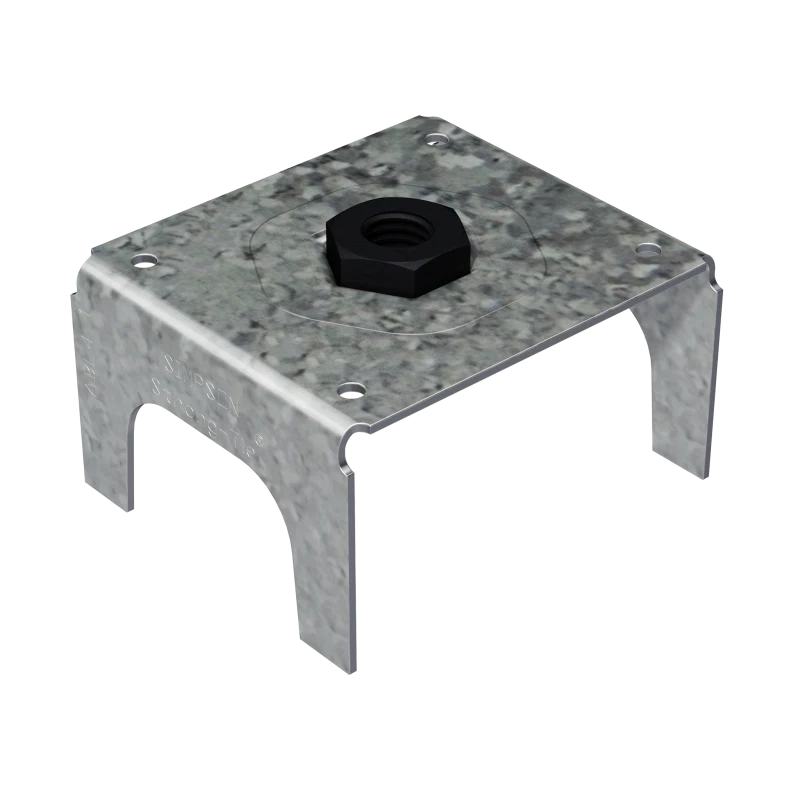

The ABL enables the accurate and secure placement of anchor bolts on concrete-deck forms prior to concrete placement. The structural heavy-hex nut is attached to a pre-formed steel "chair," which eliminates the need for an additional nut on the bottom of the anchor bolt. Electro-galvanized versions available for HDG anchor bolts.

Available Sizes & Options

SKUProductStatus
ABL4-1Simpson Strong-Tie ABL4-1 ABL Anchor Bolt Locator with 1/2 in. Nut CurrentAvailable
ABL5-1Simpson Strong-Tie ABL5-1 ABL Anchor Bolt Locator with 5/8 in. NutAvailable
ABL6-1Simpson Strong-Tie ABL6-1 ABL Anchor Bolt Locator with 3/4 in. NutAvailable
ABL7-1Simpson Strong-Tie ABL7-1 ABL Anchor Bolt Locator with 7/8 in. NutAvailable
ABL8-1Simpson Strong-Tie ABL8-1 ABL Anchor Bolt Locator with 1 in. NutAvailable
ABL9-1Simpson Strong-Tie ABL9-1 ABL Anchor Bolt Locator with 1-1/8 in. NutAvailable
ATR1-1/2X108Simpson Strong-Tie ATR1-1/2X108 ATR 1-1/2 in. x 108 in. All-Thread RodAvailable
ATR1-1/2X120Simpson Strong-Tie ATR1-1/2X120 ATR 1-1/2 in. x 120 in. All-Thread RodAvailable
ATR1-1/2X132Simpson Strong-Tie ATR1-1/2X132 ATR 1-1/2 in. x 132 in. All-Thread RodAvailable
ATR1-1/2X144Simpson Strong-Tie ATR1-1/2X144 ATR 1-1/2 in. x 144 in. All-Thread RodAvailable
ATR1-1/2X72Simpson Strong-Tie ATR1-1/2X72 ATR 1-1/2 in. x 72 in. All-Thread RodAvailable
ATR1-1/2X84Simpson Strong-Tie ATR1-1/2X84 ATR 1-1/2 in. x 84 in. All-Thread RodAvailable
ATR1-1/2X96Simpson Strong-Tie ATR1-1/2X96 ATR 1-1/2 in. x 96 in. All-Thread RodAvailable
ATR1-1/4X108Simpson Strong-Tie ATR1-1/4X108 ATR 1-1/4 in. x 108 in. All-Thread RodAvailable
ATR1-1/4X120Simpson Strong-Tie ATR1-1/4X120 ATR 1-1/4 in. x 120 in. All-Thread RodAvailable
ATR1-1/4X132Simpson Strong-Tie ATR1-1/4X132 ATR 1-1/4 in. x 132 in. All-Thread RodAvailable
ATR1-1/4X144Simpson Strong-Tie ATR1-1/4X144 ATR 1-1/4 in. x 144 in. All-Thread RodAvailable
ATR1-1/4X18Simpson Strong-Tie ATR1-1/4X18 ATR 1-1/4 in. x 18 in. All-Thread RodAvailable
ATR1-1/4X24Simpson Strong-Tie ATR1-1/4X24 ATR 1-1/4 in. x 24 in. All-Thread RodAvailable
ATR1-1/4X36Simpson Strong-Tie ATR1-1/4X36 ATR 1-1/4 in. x 36 in. All-Thread RodAvailable
ATR1-1/4X72Simpson Strong-Tie ATR1-1/4X72 ATR 1-1/4 in. x 72 in. All-Thread RodAvailable

Product Details

Key Features

  • Designed for optimum concrete flow
  • Installs with (2) nails or (2) screws
  • Provides 1" standoff (clear cover)
  • Available for anchor rod diameters from 1/2" to 2"
  • For use with hot-dip galvanized anchor rods, specify “OST” for oversized threads

Material

  • Nut — heavy hex; chair — 14 ga. steel

Finish

  • Nut — none or electro-galvanized; chair — G90

Related Links

Strong-Rod Systems

Catalog Pages

Patent Information

  • US Patents 8,621,816; 8,381,482
