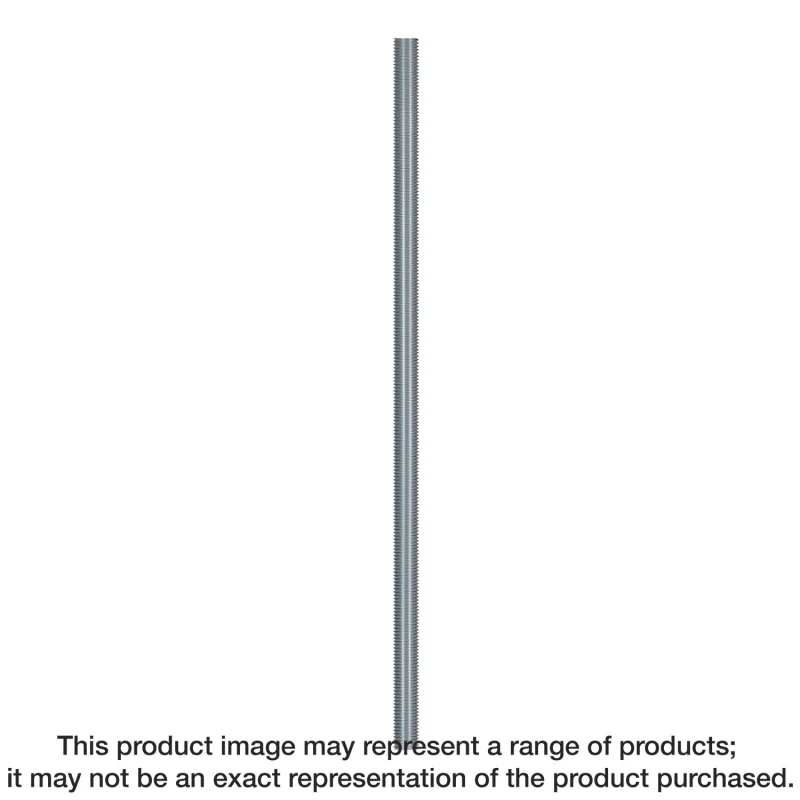

Simpson Strong-Tie ATR1/2X48 ATR 1/2 in. x 48 in. All-Thread Rod
SKU: ATR1/2X48
Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
Product Description
The Simpson Strong-Tie® ATR is a fully-threaded rod designed for tension transfer. These rods are threaded along their entire length and are ideal for a variety of applications. The ATR rod comes in a variety of sizes from 3/8-in. diameter up to 2-in. diameter.
Available Sizes & Options
Product Details
Key Features
- Precut for convenience
- Models available in standard-strength material
- UNC Class 2A thread specifications
Material
- ASTM F1554 Grade 36 or ASTM A307 Grade A; Fu = 58 ksi
Finish
- Uncoated black steel
Installation
- When placing the rod as part of the ATS run, the most commonly used procedure involves dropping in (or pushing up) the rod through the drilled holes in the flooring system after framing is completed
- Holes in sole/top plates and floor system shall be drilled 1/4" larger than the rod diameter
- Drilled holes through the sole/top plates and flooring system should be completed with one continuous drilling action
- See installation video for further description
