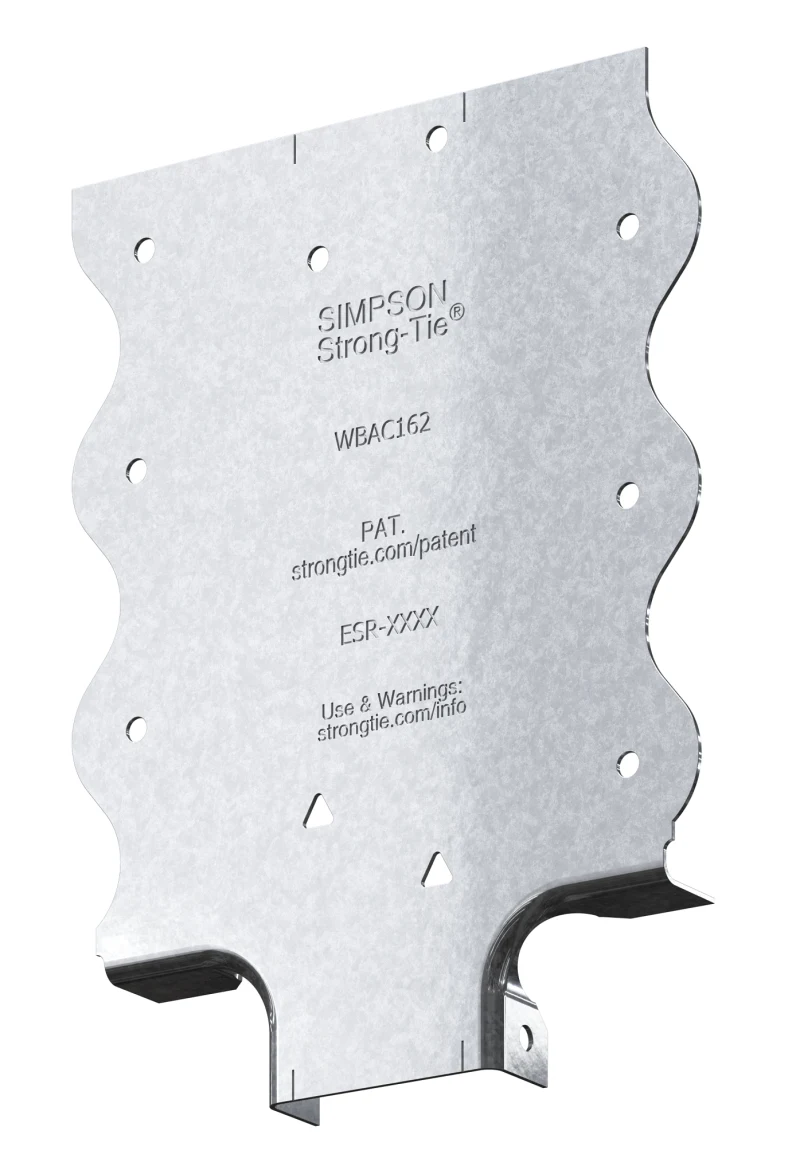

Simpson Strong-Tie WBAC162-R50 WBAC Wood Backing Steel Connector for 1-1/4 in. to 1-5/8 in. Flange (50-Qty)
Steel Studs

Simpson Strong-Tie WBAC162-R50 WBAC Wood Backing Steel Connector for 1-1/4 in. to 1-5/8 in. Flange (50-Qty)

SKU: WBAC162-R50
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

The WBAC wood backing steel connector is the ideal solution for connecting wood backing to cold-formed steel studs. Perfect for cabinets, shelves, handrails, heavy wall hangings and more, this versatile connector installs easily and provides tested strength. The WBAC is designed to eliminate alignment issues and reduce installation time. Since stiffness and strength are critical for these applications, the fastening pattern into both steel and wood has been engineered to optimize performance.

Available Sizes & Options

SKUProductStatus
WBAC162-R50Simpson Strong-Tie WBAC162-R50 WBAC Wood Backing Steel Connector for 1-1/4 in. to 1-5/8 in. Flange (50-Qty) CurrentAvailable
D150Simpson Strong-Tie D150 Ready Track Benderâ„¢ Deluxe ToolAvailable
DBC2.5-R200Simpson Strong-Tie DBC2.5-R200 DBC Drywall Bridging Connector (Qty-200)Available
DBR/30-R20Simpson Strong-Tie DBR/30-R20 DBR 22-Gauge Galvanized Drywall Spacer Bracer (20-Qty) (Pack of 68)Available
DBR/30-R680Simpson Strong-Tie DBR/30-R680 DBR 22-Gauge Galvanized Drywall Spacer Bracer (680-Qty)Available
DSHS-R100Simpson Strong-Tie DSHS-R100 DSHS Drift Stopper (100-Qty)Available
DSSCB43.5-KT25Simpson Strong-Tie DSSCB43.5-KT25 DSSCB 4 in. x 3-1/2 in. Bypass Framing Drift Strut Connector w/ Screws (25-Qty)Available
DSSCB46-KT25Simpson Strong-Tie DSSCB46-KT25 DSSCB 4 in. x 6 in. Bypass Framing Drift Strut Connector w/ Screws (25-Qty)Available
DSSCB48-KT25Simpson Strong-Tie DSSCB48-KT25 DSSCB 4 in. x 8 in. Bypass Framing Drift Strut Connector w/ Screws (25-Qty)Available
FC32-5/97-R25Simpson Strong-Tie FC32-5/97-R25 FC 2 in. x 3-1/2 in. x 5 in. 12-Gauge Bypass Framing Fixed-Clip Connector (Qty-25)Available
FC62-5/118-R25Simpson Strong-Tie FC62-5/118-R25 FC 2 in. x 6 in. x 5 in. 10-Gauge Bypass Framing Fixed-Clip Connector (Qty-25)Available
FC62-5/97-R25Simpson Strong-Tie FC62-5/97-R25 FC 2 in. x 6 in. x 5 in. 12-Gauge Bypass Framing Fixed-Clip Connector (Qty-25) (Pack of 96)Available
FC82-5/118-R25Simpson Strong-Tie FC82-5/118-R25 FC 2 in. x 8 in. x 5 in. 10-Gauge Bypass Framing Fixed-Clip Connector (Qty-25) (Pack of 96)Available
FCB411.5-R25Simpson Strong-Tie FCB411.5-R25 FCB 11-1/2-in. Bypass Framing Fixed-Clip Connector (25-Qty)Available
FCB43.5-R25Simpson Strong-Tie FCB43.5-R25 FCB 3-1/2-in. Bypass Framing Fixed-Clip Connector (25-Qty)Available
FCB45.5-R25Simpson Strong-Tie FCB45.5-R25 FCB 5-1/2-in. Bypass Framing Fixed-Clip Connector (25-Qty)Available
FCB47.5-R25Simpson Strong-Tie FCB47.5-R25 FCB 7-1/2-in. Bypass Framing Fixed-Clip Connector (25-Qty)Available
FCB49.5-R25Simpson Strong-Tie FCB49.5-R25 FCB 9-1/2-in. Bypass Framing Fixed-Clip Connector (25-Qty)Available
FSB3.518-R25Simpson Strong-Tie FSB3.518-R25 FSB Bypass Framing Fixed-Clip Strut Connector (Qty-25)Available
GP1212/68-R15Simpson Strong-Tie GP1212/68-R15 GP 12 in. x 12 in. Galvanized Gusset Plate (15-Qty)Available
GP1212/97-R10Simpson Strong-Tie GP1212/97-R10 GP 12 in. x 12 in. Galvanized Gusset Plate (10-Qty)Available

Product Details

Key Features

  • Simple installation using prepunched holes allowing the same screw to be used for both backing and stud attachment
  • Not limited to just a 1 5/8" flange, the WBAC has been tested to accommodate 1 1/4" flanges, 1 5/8" flanges and 2" flanges
  • Works for any stud spacing, predetermined or typical stud spacing not required
  • Sight lines to guide installation alignment
  • Unique rolled support bottom tabs provide extra strength and stiffness

Material

  • 33 mil (20 ga.), 33 ksi

Finish

  • Galvanized (G90)

Codes

  • Testing performed in accordance with ICC-ES AC261

Installation

  • Attach to grade lumber or 5/8" fire-rated board or CFS backing
  • Use WBAC162 for 1 1/4" and 1 5/8" flanges, and WBAC200 for 2" flanges
  • Drywall stud (1 1/4" flange): Align top of connector with markings and attach using (4) #8-18 modified truss-head self-drilling screws to stud flange and (3) #8-18 modified truss-head screws to each block
  • Structural studs (1 5/8" and 2" flange): Attach using (4) #8-18 modified truss-head SDS screws [(2) to stud flange, (1) to lip, and (1) to web] and (3) #8-18 modified truss-head screws to each block
