Simpson Strong-Tie SC32-5/97-KT25 SC 3-1/2 in. 12 ga. Bypass Framing Slide-Clip Connector w/ Screws (Qty-25)
Steel Studs

Simpson Strong-Tie SC32-5/97-KT25 SC 3-1/2 in. 12 ga. Bypass Framing Slide-Clip Connector w/ Screws (Qty-25)

SKU: SC32-5/97-KT25
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

Ideal for high-seismic areas, Simpson Strong-Tie® SC connectors are the optimal solution for slide-clip bypass framing. SC clips are often welded to the structure in high-seismic zones, but they also feature anchorage holes so that concrete screws or powder-actuated fasteners can be used to attach the clip to the structure. In addition to anchorage versatility, the SC clips include No-Equal® stamps at the center of the slots to ensure proper shouldered screw placement. SC connectors are manufactured using heavy-duty steel to provide exceptional resistance to in-plane seismic load.

Available Sizes & Options

SKUProductStatus
SC32-5/97-KT25Simpson Strong-Tie SC32-5/97-KT25 SC 3-1/2 in. 12 ga. Bypass Framing Slide-Clip Connector w/ Screws (Qty-25) CurrentAvailable
D150Simpson Strong-Tie D150 Ready Track Bender™ Deluxe ToolAvailable
DBC2.5-R200Simpson Strong-Tie DBC2.5-R200 DBC Drywall Bridging Connector (Qty-200)Available
DBR/30-R20Simpson Strong-Tie DBR/30-R20 DBR 22-Gauge Galvanized Drywall Spacer Bracer (20-Qty) (Pack of 68)Available
DBR/30-R680Simpson Strong-Tie DBR/30-R680 DBR 22-Gauge Galvanized Drywall Spacer Bracer (680-Qty)Available
DSHS-R100Simpson Strong-Tie DSHS-R100 DSHS Drift Stopper (100-Qty)Available
DSSCB43.5-KT25Simpson Strong-Tie DSSCB43.5-KT25 DSSCB 4 in. x 3-1/2 in. Bypass Framing Drift Strut Connector w/ Screws (25-Qty)Available
DSSCB46-KT25Simpson Strong-Tie DSSCB46-KT25 DSSCB 4 in. x 6 in. Bypass Framing Drift Strut Connector w/ Screws (25-Qty)Available
DSSCB48-KT25Simpson Strong-Tie DSSCB48-KT25 DSSCB 4 in. x 8 in. Bypass Framing Drift Strut Connector w/ Screws (25-Qty)Available
FC32-5/97-R25Simpson Strong-Tie FC32-5/97-R25 FC 2 in. x 3-1/2 in. x 5 in. 12-Gauge Bypass Framing Fixed-Clip Connector (Qty-25)Available
FC62-5/118-R25Simpson Strong-Tie FC62-5/118-R25 FC 2 in. x 6 in. x 5 in. 10-Gauge Bypass Framing Fixed-Clip Connector (Qty-25)Available
FC62-5/97-R25Simpson Strong-Tie FC62-5/97-R25 FC 2 in. x 6 in. x 5 in. 12-Gauge Bypass Framing Fixed-Clip Connector (Qty-25) (Pack of 96)Available
FC82-5/118-R25Simpson Strong-Tie FC82-5/118-R25 FC 2 in. x 8 in. x 5 in. 10-Gauge Bypass Framing Fixed-Clip Connector (Qty-25) (Pack of 96)Available
FCB411.5-R25Simpson Strong-Tie FCB411.5-R25 FCB 11-1/2-in. Bypass Framing Fixed-Clip Connector (25-Qty)Available
FCB43.5-R25Simpson Strong-Tie FCB43.5-R25 FCB 3-1/2-in. Bypass Framing Fixed-Clip Connector (25-Qty)Available
FCB45.5-R25Simpson Strong-Tie FCB45.5-R25 FCB 5-1/2-in. Bypass Framing Fixed-Clip Connector (25-Qty)Available
FCB47.5-R25Simpson Strong-Tie FCB47.5-R25 FCB 7-1/2-in. Bypass Framing Fixed-Clip Connector (25-Qty)Available
FCB49.5-R25Simpson Strong-Tie FCB49.5-R25 FCB 9-1/2-in. Bypass Framing Fixed-Clip Connector (25-Qty)Available
FSB3.518-R25Simpson Strong-Tie FSB3.518-R25 FSB Bypass Framing Fixed-Clip Strut Connector (Qty-25)Available
GP1212/68-R15Simpson Strong-Tie GP1212/68-R15 GP 12 in. x 12 in. Galvanized Gusset Plate (15-Qty)Available
GP1212/97-R10Simpson Strong-Tie GP1212/97-R10 GP 12 in. x 12 in. Galvanized Gusset Plate (10-Qty)Available

Product Details

Key Features

  • The clips come in lengths of 3 1/2", 6" and 8" for use with 3 5/8", 6" and 8" studs, respectively
  • The maximum standoff distance is 1" for 3 5/8" studs and 1 1/2" for 6"and 8" studs
  • Provides a full 3/4" of both upward and downward deflection
  • Embossments in the bend line provide increased strength and stiffness in the F1 and F2 load directions, but are positioned towards the center of the clip so that 1 1/2"-long welds can be applied at the top and bottom of the clip
  • Prepunched large-diameter anchor holes accommodate 1/4"-diameter concrete screws like the Simpson Strong-Tie Titen HD®
  • Prepunched small-diameter anchor holes accommodate powder-actuated fasteners like the 0.157"-diameter Simpson Strong-Tie PDPAT or the #12 self-drilling Simpson Strong-Tie Strong-Drive® XL Large-Head Metal screw

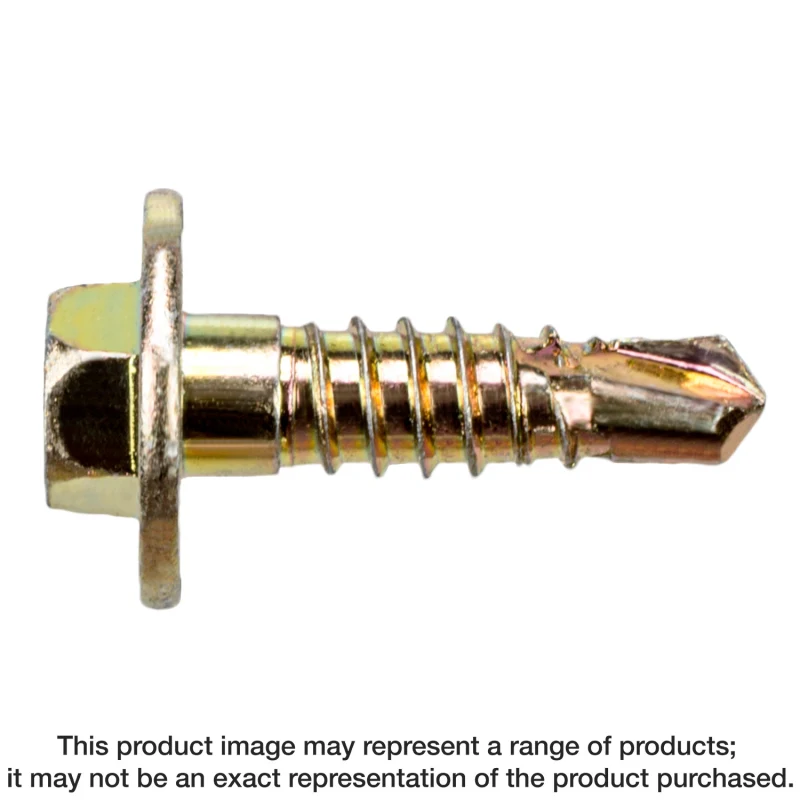

  • Precision-manufactured shouldered screws, provided with SC connectors, are designed to prevent overdriving and to ensure the clip functions properly

Material

  • 12 ga. (97 mil) and 10 ga. (118 mil), 50 ksi

Finish

  • Galvanized (G90)

Installation

  • Use the specified type and number of anchors.
  • Use the specified number of XLSH78B1414 #14 shouldered screws (included). Install the screws in the slots adjacent to the No-Equal stamps.
  • Use one shouldered screw per slot (maximum).
