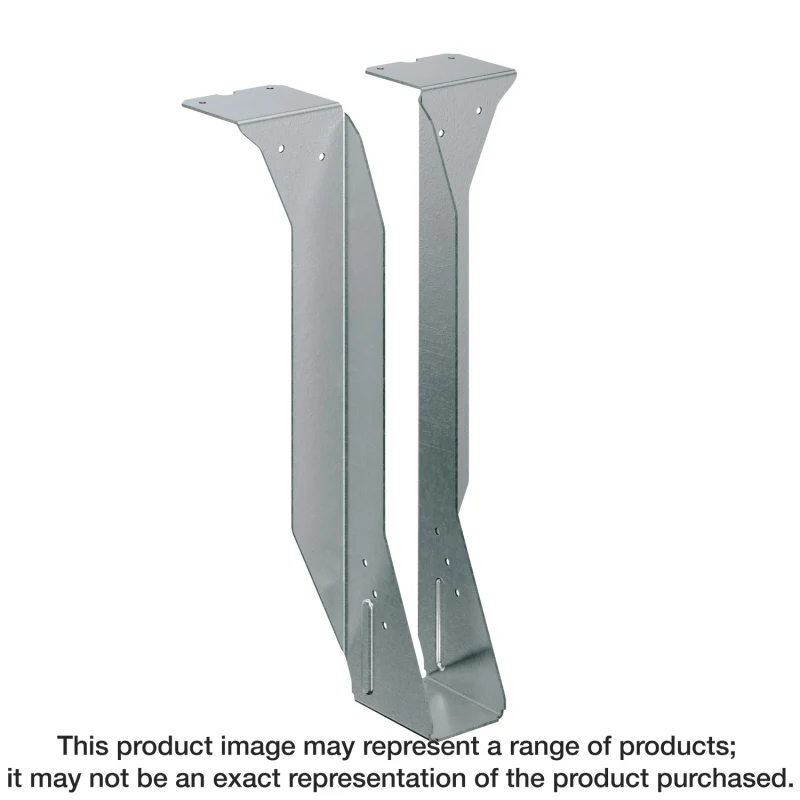

Simpson Strong-Tie S/LBV3.38/8 S/LBV 14 ga. Hanger for (2) 1-5/8 in. x 8 in. Cold-Formed-Steel Joists
SKU: S/LBV3.38/8
Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
Product Description
Simpson Strong-Tie® cold-formed steel connectors are designed to provide the strength and performance required in every cold-formed steel (CFS) application. From hangers, holdowns and steel studs to hand-bendable framing members for creating curved walls on CFS jobsites, Simpson Strong-Tie offers a wide variety of sizes, materials and finishes for every project, big and small. The S/LBV hanger installs to structural steel or cold-formed steel beams for support of cold-formed steel joists.
Available Sizes & Options
Product Details
Key Features
- Attaches to cold-formed steel members with screws or to structural steel with powder-actuated fasteners or welds
- Can be skewed to a maximum of 45°
- These load-rated hangers have been tested and code listed
Material
- 68mil (14 ga.)
Finish
- Galvanized (G90)
Options
Skew hanger limitations:
- May be skewed up to a maximum of 45º. Widths for skewable sections are limited to a maximum of 5 1/4" (specify right or left skew).
Installation
Cold-Formed Steel:
- May be attached to cold-formed steel supporting members with screws to the face and top flanges and provide capacities for downward and uplift.
Structural Steel:
- May be attached to structural steel support members with powder-actuated fasteners or welds. For powder-actuated fasteners use PDPAT-62KP (0.157" x 5/8") and provide full penetration as required. For welds, use a minimum of 1/8" x 2" fillet weld on each top flange as required. Distribute the weld equally on both flanges. Capacities are provided for downward loads.
