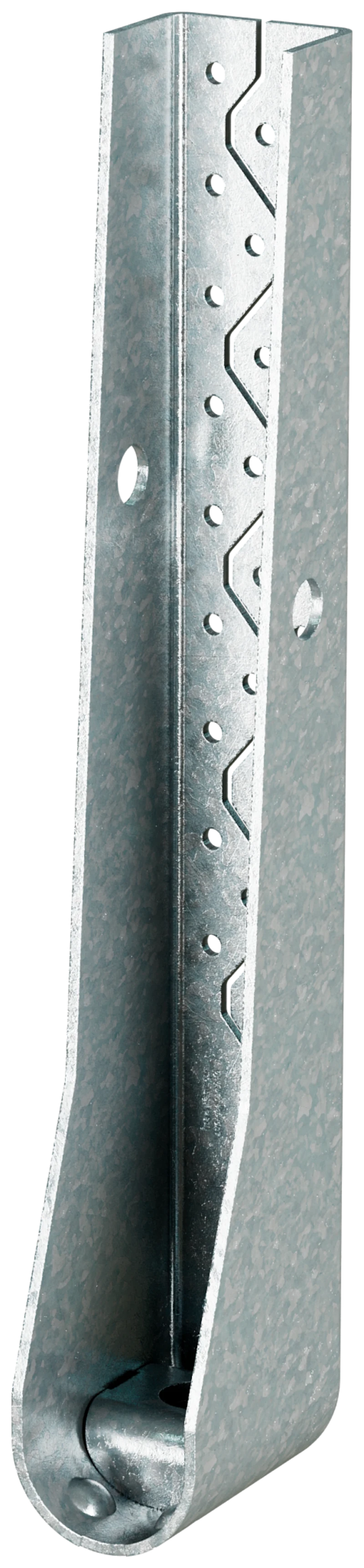

Simpson Strong-Tie S/HDU11 S/HDU 16-5/8 in. Holdown for Cold-Formed Steel
Steel Studs

Simpson Strong-Tie S/HDU11 S/HDU 16-5/8 in. Holdown for Cold-Formed Steel

SKU: S/HDU11
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

Simpson Strong-Tie® cold-formed steel connectors are designed to provide the strength and performance required in every cold-formed steel (CFS) application. From hangers, holdowns and steel studs to hand-bendable framing members for creating curved walls on CFS jobsites, Simpson Strong-Tie offers a wide variety of sizes, materials and finishes for every project, big and small. The S/HDU series of holdowns combines performance with ease of installation. The pre-deflected geometry virtually eliminates material stretch, resulting in low deflection under load. Installation using self-drilling tapping screws into the studs reduces installation time and saves labor cost.

Available Sizes & Options

SKUProductStatus
S/HDU11Simpson Strong-Tie S/HDU11 S/HDU 16-5/8 in. Holdown for Cold-Formed Steel CurrentAvailable
D150Simpson Strong-Tie D150 Ready Track Bender™ Deluxe ToolAvailable
DBC2.5-R200Simpson Strong-Tie DBC2.5-R200 DBC Drywall Bridging Connector (Qty-200)Available
DBR/30-R20Simpson Strong-Tie DBR/30-R20 DBR 22-Gauge Galvanized Drywall Spacer Bracer (20-Qty) (Pack of 68)Available
DBR/30-R680Simpson Strong-Tie DBR/30-R680 DBR 22-Gauge Galvanized Drywall Spacer Bracer (680-Qty)Available
DSHS-R100Simpson Strong-Tie DSHS-R100 DSHS Drift Stopper (100-Qty)Available
DSSCB43.5-KT25Simpson Strong-Tie DSSCB43.5-KT25 DSSCB 4 in. x 3-1/2 in. Bypass Framing Drift Strut Connector w/ Screws (25-Qty)Available
DSSCB46-KT25Simpson Strong-Tie DSSCB46-KT25 DSSCB 4 in. x 6 in. Bypass Framing Drift Strut Connector w/ Screws (25-Qty)Available
DSSCB48-KT25Simpson Strong-Tie DSSCB48-KT25 DSSCB 4 in. x 8 in. Bypass Framing Drift Strut Connector w/ Screws (25-Qty)Available
FC32-5/97-R25Simpson Strong-Tie FC32-5/97-R25 FC 2 in. x 3-1/2 in. x 5 in. 12-Gauge Bypass Framing Fixed-Clip Connector (Qty-25)Available
FC62-5/118-R25Simpson Strong-Tie FC62-5/118-R25 FC 2 in. x 6 in. x 5 in. 10-Gauge Bypass Framing Fixed-Clip Connector (Qty-25)Available
FC62-5/97-R25Simpson Strong-Tie FC62-5/97-R25 FC 2 in. x 6 in. x 5 in. 12-Gauge Bypass Framing Fixed-Clip Connector (Qty-25) (Pack of 96)Available
FC82-5/118-R25Simpson Strong-Tie FC82-5/118-R25 FC 2 in. x 8 in. x 5 in. 10-Gauge Bypass Framing Fixed-Clip Connector (Qty-25) (Pack of 96)Available
FCB411.5-R25Simpson Strong-Tie FCB411.5-R25 FCB 11-1/2-in. Bypass Framing Fixed-Clip Connector (25-Qty)Available
FCB43.5-R25Simpson Strong-Tie FCB43.5-R25 FCB 3-1/2-in. Bypass Framing Fixed-Clip Connector (25-Qty)Available
FCB45.5-R25Simpson Strong-Tie FCB45.5-R25 FCB 5-1/2-in. Bypass Framing Fixed-Clip Connector (25-Qty)Available
FCB47.5-R25Simpson Strong-Tie FCB47.5-R25 FCB 7-1/2-in. Bypass Framing Fixed-Clip Connector (25-Qty)Available
FCB49.5-R25Simpson Strong-Tie FCB49.5-R25 FCB 9-1/2-in. Bypass Framing Fixed-Clip Connector (25-Qty)Available
FSB3.518-R25Simpson Strong-Tie FSB3.518-R25 FSB Bypass Framing Fixed-Clip Strut Connector (Qty-25)Available
GP1212/68-R15Simpson Strong-Tie GP1212/68-R15 GP 12 in. x 12 in. Galvanized Gusset Plate (15-Qty)Available
GP1212/97-R10Simpson Strong-Tie GP1212/97-R10 GP 12 in. x 12 in. Galvanized Gusset Plate (10-Qty)Available

Product Details

Material

  • 118 mil (10 ga.)

Finish

  • Galvanized (G90)

Installation

  • Specially designed to fit inside open side of stud
  • Use all specified fasteners; see General Notes
  • Use standard #14 self-drilling screws to fasten to studs
  • Anchor bolt washer is not required
  • See SABR™ and PAB® anchor bolts for cast-in-place anchorage options
  • See SET-3G® and AT-3G™ adhesive products for anchor bolt retrofit options
  • Crescent washer is included with the holdowns; to order replacements, order parts S/HDU4-03 (for S/HDU4 and S/HDU6) or S/HDU9-03 (for S/HDU9 and S/HDU11)
