Simpson Strong-Tie S/HD10B S/HDB 13-1/2 in. Light Steel Bolted Holdown
Steel Studs

Simpson Strong-Tie S/HD10B S/HDB 13-1/2 in. Light Steel Bolted Holdown

SKU: S/HD10B
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

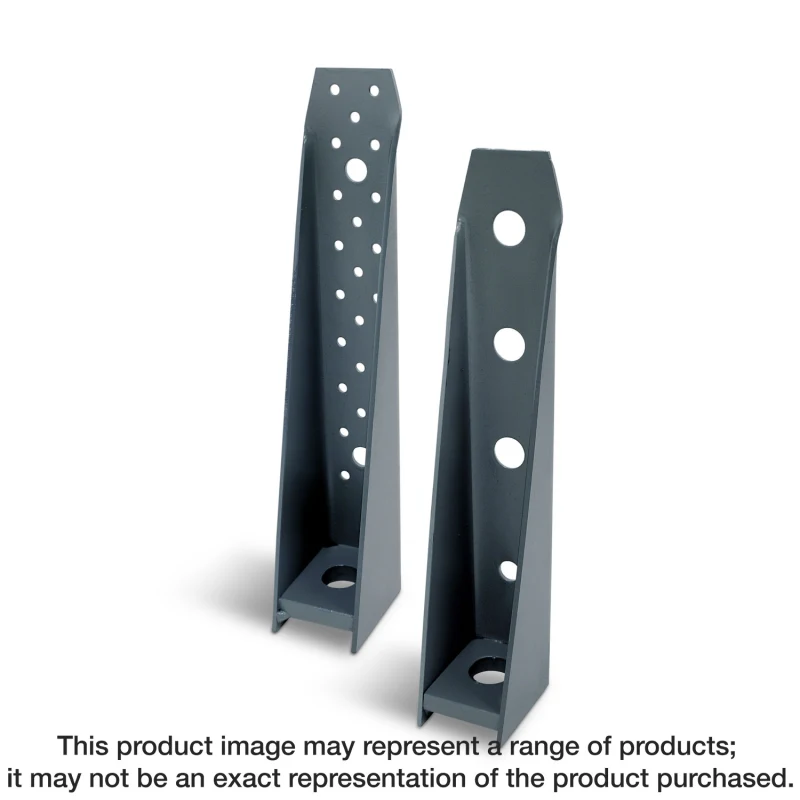

The Simpson Strong-Tie® S/HDB is designed to provide loads for high-load shearwalls, braced-wall panels and lateral applications and is ideal for bolt-on applications where the cold-formed steel stud manufacturer can prepunch the bolt holes. The holdown features a unique seat that greatly minimizes deflection under load. Designed for installation with bolts into the studs or column.

Available Sizes & Options

SKUProductStatus
S/HD10BSimpson Strong-Tie S/HD10B S/HDB 13-1/2 in. Light Steel Bolted Holdown CurrentAvailable
D150Simpson Strong-Tie D150 Ready Track Bender™ Deluxe ToolAvailable
DBC2.5-R200Simpson Strong-Tie DBC2.5-R200 DBC Drywall Bridging Connector (Qty-200)Available
DBR/30-R20Simpson Strong-Tie DBR/30-R20 DBR 22-Gauge Galvanized Drywall Spacer Bracer (20-Qty) (Pack of 68)Available
DBR/30-R680Simpson Strong-Tie DBR/30-R680 DBR 22-Gauge Galvanized Drywall Spacer Bracer (680-Qty)Available
DSHS-R100Simpson Strong-Tie DSHS-R100 DSHS Drift Stopper (100-Qty)Available
DSSCB43.5-KT25Simpson Strong-Tie DSSCB43.5-KT25 DSSCB 4 in. x 3-1/2 in. Bypass Framing Drift Strut Connector w/ Screws (25-Qty)Available
DSSCB46-KT25Simpson Strong-Tie DSSCB46-KT25 DSSCB 4 in. x 6 in. Bypass Framing Drift Strut Connector w/ Screws (25-Qty)Available
DSSCB48-KT25Simpson Strong-Tie DSSCB48-KT25 DSSCB 4 in. x 8 in. Bypass Framing Drift Strut Connector w/ Screws (25-Qty)Available
FC32-5/97-R25Simpson Strong-Tie FC32-5/97-R25 FC 2 in. x 3-1/2 in. x 5 in. 12-Gauge Bypass Framing Fixed-Clip Connector (Qty-25)Available
FC62-5/118-R25Simpson Strong-Tie FC62-5/118-R25 FC 2 in. x 6 in. x 5 in. 10-Gauge Bypass Framing Fixed-Clip Connector (Qty-25)Available
FC62-5/97-R25Simpson Strong-Tie FC62-5/97-R25 FC 2 in. x 6 in. x 5 in. 12-Gauge Bypass Framing Fixed-Clip Connector (Qty-25) (Pack of 96)Available
FC82-5/118-R25Simpson Strong-Tie FC82-5/118-R25 FC 2 in. x 8 in. x 5 in. 10-Gauge Bypass Framing Fixed-Clip Connector (Qty-25) (Pack of 96)Available
FCB411.5-R25Simpson Strong-Tie FCB411.5-R25 FCB 11-1/2-in. Bypass Framing Fixed-Clip Connector (25-Qty)Available
FCB43.5-R25Simpson Strong-Tie FCB43.5-R25 FCB 3-1/2-in. Bypass Framing Fixed-Clip Connector (25-Qty)Available
FCB45.5-R25Simpson Strong-Tie FCB45.5-R25 FCB 5-1/2-in. Bypass Framing Fixed-Clip Connector (25-Qty)Available
FCB47.5-R25Simpson Strong-Tie FCB47.5-R25 FCB 7-1/2-in. Bypass Framing Fixed-Clip Connector (25-Qty)Available
FCB49.5-R25Simpson Strong-Tie FCB49.5-R25 FCB 9-1/2-in. Bypass Framing Fixed-Clip Connector (25-Qty)Available
FSB3.518-R25Simpson Strong-Tie FSB3.518-R25 FSB Bypass Framing Fixed-Clip Strut Connector (Qty-25)Available
GP1212/68-R15Simpson Strong-Tie GP1212/68-R15 GP 12 in. x 12 in. Galvanized Gusset Plate (15-Qty)Available
GP1212/97-R10Simpson Strong-Tie GP1212/97-R10 GP 12 in. x 12 in. Galvanized Gusset Plate (10-Qty)Available

Product Details

Key Features

  • Can be installed directly on the bottom track or raised above it and is suitable for back-to-back applications where eccentricity is a concern.
  • Features a unique seat design that greatly minimizes deflection under load.
  • The S/HDB model is designed for installation with bolts. Refer to the S/HDS model for attachment to post/column with screws.

Material

  • See table

Finish

  • Simpson Strong‑Tie® gray paint. Hot-dip galvanized available; see Corrosion Information.

Installation

  • Use all specified fasteners; some models have extra fastener holes. See General Notes.
  • Anchor bolt washer is not required.
  • Standard washers are required on stud bolt nuts for S/HDB models.
  • Thin wall socket (OD = 2" maximum) is required for S/HD15 to tighten the 1" anchor bolt.
  • Stud bolts — use A307.
  • Boundary members (back-to-back studs) design shall be by designer.
  • Holdowns can be welded per designer’s recommendation and specification. To tie back-to-back stud members together, the designer must determine the fasteners required to bind members to act as one unit. Welders and welding procedures shall be qualified as specified in AWS D1.3. Welded connections used for cold-formed steel structural members in which the thickness of the thinnest connected part is 0.18 inch or less shall comply to AISI S100 Specification Section E2.
  • See SABR™ and PAB™ anchor bolts for anchorage options.
  • See SET-3G® and AT-3G™ adhesive products for anchor bolt retrofit options.
