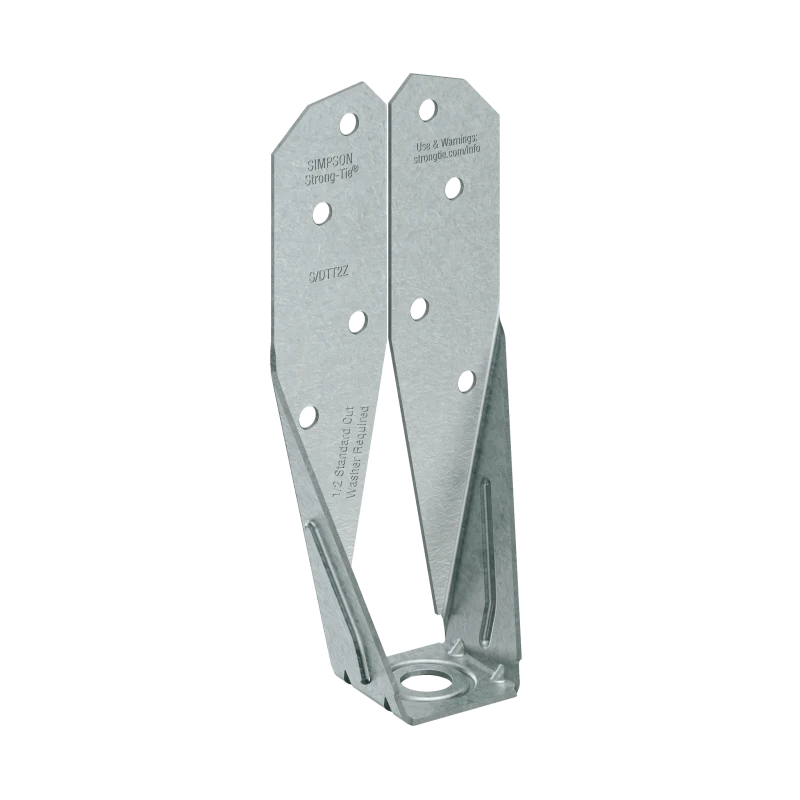

Simpson Strong-Tie S/DTT2Z S/DTT ZMAX® Galvanized Light Tension Tie
Steel Studs

Simpson Strong-Tie S/DTT2Z S/DTT ZMAX® Galvanized Light Tension Tie

SKU: S/DTT2Z
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

Simpson Strong-Tie® cold-formed steel connectors are designed to provide the strength and performance required in every cold-formed steel (CFS) application. From hangers, holdowns and steel studs to hand-bendable framing members for creating curved walls on CFS jobsites, Simpson Strong-Tie offers a wide variety of sizes, materials and finishes for every project, big and small. The S/DTT is suitable for lighter-duty hold-down (holdown) applications on single or back-to-back studs and installs easily with #14 self-drilling screws. This light tension tie is ideal for retrofit or new construction projects, providing high-strength, post-pour, concrete-to-steel connections.

Available Sizes & Options

SKUProductStatus
S/DTT2ZSimpson Strong-Tie S/DTT2Z S/DTT ZMAX® Galvanized Light Tension Tie CurrentAvailable
D150Simpson Strong-Tie D150 Ready Track Bender™ Deluxe ToolAvailable
DBC2.5-R200Simpson Strong-Tie DBC2.5-R200 DBC Drywall Bridging Connector (Qty-200)Available
DBR/30-R20Simpson Strong-Tie DBR/30-R20 DBR 22-Gauge Galvanized Drywall Spacer Bracer (20-Qty) (Pack of 68)Available
DBR/30-R680Simpson Strong-Tie DBR/30-R680 DBR 22-Gauge Galvanized Drywall Spacer Bracer (680-Qty)Available
DSHS-R100Simpson Strong-Tie DSHS-R100 DSHS Drift Stopper (100-Qty)Available
DSSCB43.5-KT25Simpson Strong-Tie DSSCB43.5-KT25 DSSCB 4 in. x 3-1/2 in. Bypass Framing Drift Strut Connector w/ Screws (25-Qty)Available
DSSCB46-KT25Simpson Strong-Tie DSSCB46-KT25 DSSCB 4 in. x 6 in. Bypass Framing Drift Strut Connector w/ Screws (25-Qty)Available
DSSCB48-KT25Simpson Strong-Tie DSSCB48-KT25 DSSCB 4 in. x 8 in. Bypass Framing Drift Strut Connector w/ Screws (25-Qty)Available
FC32-5/97-R25Simpson Strong-Tie FC32-5/97-R25 FC 2 in. x 3-1/2 in. x 5 in. 12-Gauge Bypass Framing Fixed-Clip Connector (Qty-25)Available
FC62-5/118-R25Simpson Strong-Tie FC62-5/118-R25 FC 2 in. x 6 in. x 5 in. 10-Gauge Bypass Framing Fixed-Clip Connector (Qty-25)Available
FC62-5/97-R25Simpson Strong-Tie FC62-5/97-R25 FC 2 in. x 6 in. x 5 in. 12-Gauge Bypass Framing Fixed-Clip Connector (Qty-25) (Pack of 96)Available
FC82-5/118-R25Simpson Strong-Tie FC82-5/118-R25 FC 2 in. x 8 in. x 5 in. 10-Gauge Bypass Framing Fixed-Clip Connector (Qty-25) (Pack of 96)Available
FCB411.5-R25Simpson Strong-Tie FCB411.5-R25 FCB 11-1/2-in. Bypass Framing Fixed-Clip Connector (25-Qty)Available
FCB43.5-R25Simpson Strong-Tie FCB43.5-R25 FCB 3-1/2-in. Bypass Framing Fixed-Clip Connector (25-Qty)Available
FCB45.5-R25Simpson Strong-Tie FCB45.5-R25 FCB 5-1/2-in. Bypass Framing Fixed-Clip Connector (25-Qty)Available
FCB47.5-R25Simpson Strong-Tie FCB47.5-R25 FCB 7-1/2-in. Bypass Framing Fixed-Clip Connector (25-Qty)Available
FCB49.5-R25Simpson Strong-Tie FCB49.5-R25 FCB 9-1/2-in. Bypass Framing Fixed-Clip Connector (25-Qty)Available
FSB3.518-R25Simpson Strong-Tie FSB3.518-R25 FSB Bypass Framing Fixed-Clip Strut Connector (Qty-25)Available
GP1212/68-R15Simpson Strong-Tie GP1212/68-R15 GP 12 in. x 12 in. Galvanized Gusset Plate (15-Qty)Available
GP1212/97-R10Simpson Strong-Tie GP1212/97-R10 GP 12 in. x 12 in. Galvanized Gusset Plate (10-Qty)Available

Product Details

Key Features

  • Can be installed with cast-in-place or post-installed anchor bolts
  • Short profile height

Material

  • 68 mil (14 ga.)

Finish

  • ZMAX® coating

Options

  • Special sizes can be made to order; contact Simpson Strong-Tie

Installation

  • Use all specified fasteners.
  • Use the specified number of type of screws to attach the strap portion to the steel stud. Bolt the base to the wall or foundation with a suitable anchor; see table for the required bolt diameter.
  • S/DTT2Z requires a standard cut washer (included) be installed between the nut and the seat.
  • See SABR™ anchor bolt for anchorage options.
  • See SET-3G® and AT-3G™ adhesive products for anchor bolt retrofit options.

Related Links

Catalog Pages

Patent Information

  • US Patent 8,555,580
