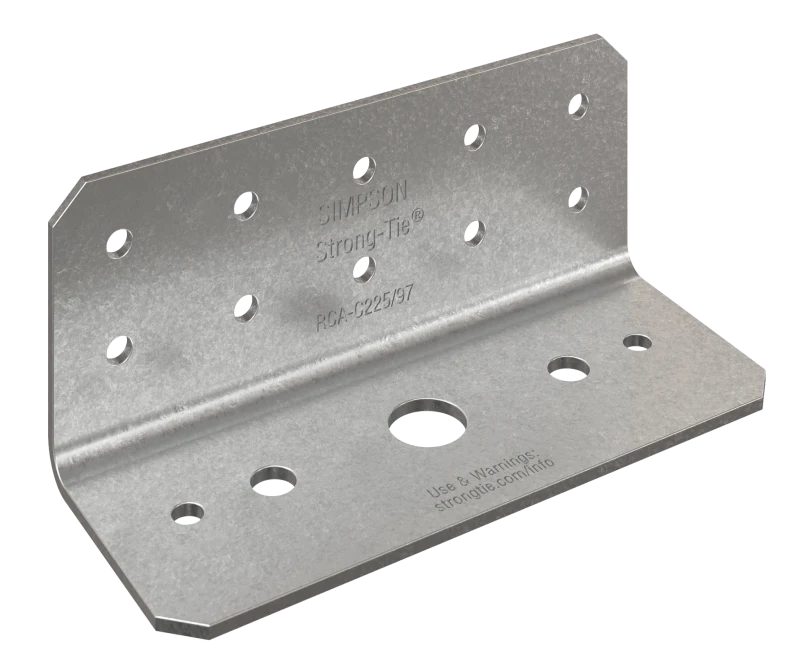

Simpson Strong-Tie RCA-C225/97-R55 RCA-C™ 2 in. x 2 in. x 5 in. 12-Gauge Rigid Connector Angle for Concrete (55-Qty)
SKU: RCA-C225/97-R55
Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
Product Description
The Simpson Strong-Tie® RCA-C is an ideal solution for attaching stud framing to concrete supports. The connector’s design includes holes for a 1/2-in. diameter anchor screw or bolt, or for two 1/4-in. diameter concrete screws, positioned in a wide array of fastening options — thus saving the installer the time and cost of drilling connector holes at the jobsite. In addition, the RCA-C connector has been rigorously tested and load rated, giving you the confidence of quality and performance for your job.
Available Sizes & Options
Product Details
Key Features
- 2" x 2" legs provide plenty of room to make attachments to structure and stud framing.
- Multiple screw pattern options to stud framing for different load rating.
- Can be used as either a heavy-duty shear and tension connector or light-duty moment connection.
- Prepunched holes for screws to stud framing and attachment to concrete. Prepunched holes on anchor leg provide options for (1) 1/2"-diameter anchor, (2) 1/4"-diameter anchors, or (2) 1/4"-diameter concrete screws.
- Attachment to concrete or masonry can be achieved with 1/2"-diameter Titen HD®, 1/2"-diameter Strong-Bolt® 2, 1/4"-diameter Titen HD, or 1/4"-diameter Titen Turbo™.
Material
- RCA-C — 97 mil (12 ga.), 50 ksi
Finish
- Galvanized (G90)
Installation
- Use all specified fasteners
