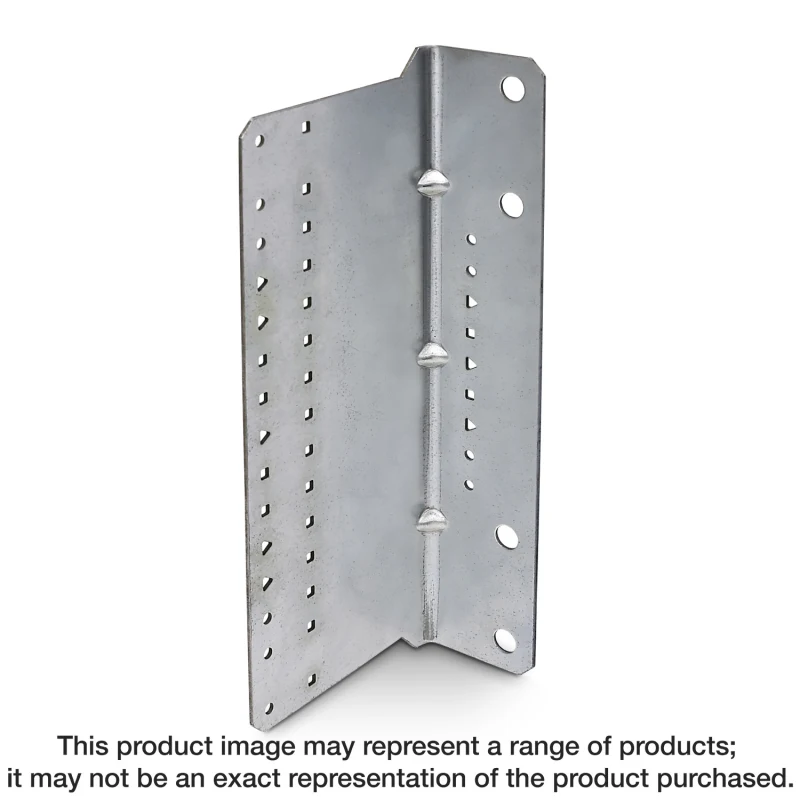

Simpson Strong-Tie MSJC8.25-R15 MSJC 2 in. x 4-1/2 in. x 8-1/4 in. 12-Gauge Galvanized Steel-Joist Connector (15-Qty)
Steel Studs

Simpson Strong-Tie MSJC8.25-R15 MSJC 2 in. x 4-1/2 in. x 8-1/4 in. 12-Gauge Galvanized Steel-Joist Connector (15-Qty)

SKU: MSJC8.25-R15
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

Simpson Strong-Tie® SJC connectors have been specifically designed for various CFS joist, rafter and underside of metal-deck applications. The unique clip dimensions enable easy installation on the open side of joists and rafters with up to 3-1/2 in. flanges and return lips up to 3/4 in. For metal-deck applications, the prepunched 3/8-in. holes easily accommodate 6-in., 8-in., 10-in. and 12-in. on-center metal-deck flutes.

Available Sizes & Options

SKUProductStatus
MSJC8.25-R15Simpson Strong-Tie MSJC8.25-R15 MSJC 2 in. x 4-1/2 in. x 8-1/4 in. 12-Gauge Galvanized Steel-Joist Connector (15-Qty) CurrentAvailable
D150Simpson Strong-Tie D150 Ready Track Bender™ Deluxe ToolAvailable
DBC2.5-R200Simpson Strong-Tie DBC2.5-R200 DBC Drywall Bridging Connector (Qty-200)Available
DBR/30-R20Simpson Strong-Tie DBR/30-R20 DBR 22-Gauge Galvanized Drywall Spacer Bracer (20-Qty) (Pack of 68)Available
DBR/30-R680Simpson Strong-Tie DBR/30-R680 DBR 22-Gauge Galvanized Drywall Spacer Bracer (680-Qty)Available
DSHS-R100Simpson Strong-Tie DSHS-R100 DSHS Drift Stopper (100-Qty)Available
DSSCB43.5-KT25Simpson Strong-Tie DSSCB43.5-KT25 DSSCB 4 in. x 3-1/2 in. Bypass Framing Drift Strut Connector w/ Screws (25-Qty)Available
DSSCB46-KT25Simpson Strong-Tie DSSCB46-KT25 DSSCB 4 in. x 6 in. Bypass Framing Drift Strut Connector w/ Screws (25-Qty)Available
DSSCB48-KT25Simpson Strong-Tie DSSCB48-KT25 DSSCB 4 in. x 8 in. Bypass Framing Drift Strut Connector w/ Screws (25-Qty)Available
FC32-5/97-R25Simpson Strong-Tie FC32-5/97-R25 FC 2 in. x 3-1/2 in. x 5 in. 12-Gauge Bypass Framing Fixed-Clip Connector (Qty-25)Available
FC62-5/118-R25Simpson Strong-Tie FC62-5/118-R25 FC 2 in. x 6 in. x 5 in. 10-Gauge Bypass Framing Fixed-Clip Connector (Qty-25)Available
FC62-5/97-R25Simpson Strong-Tie FC62-5/97-R25 FC 2 in. x 6 in. x 5 in. 12-Gauge Bypass Framing Fixed-Clip Connector (Qty-25) (Pack of 96)Available
FC82-5/118-R25Simpson Strong-Tie FC82-5/118-R25 FC 2 in. x 8 in. x 5 in. 10-Gauge Bypass Framing Fixed-Clip Connector (Qty-25) (Pack of 96)Available
FCB411.5-R25Simpson Strong-Tie FCB411.5-R25 FCB 11-1/2-in. Bypass Framing Fixed-Clip Connector (25-Qty)Available
FCB43.5-R25Simpson Strong-Tie FCB43.5-R25 FCB 3-1/2-in. Bypass Framing Fixed-Clip Connector (25-Qty)Available
FCB45.5-R25Simpson Strong-Tie FCB45.5-R25 FCB 5-1/2-in. Bypass Framing Fixed-Clip Connector (25-Qty)Available
FCB47.5-R25Simpson Strong-Tie FCB47.5-R25 FCB 7-1/2-in. Bypass Framing Fixed-Clip Connector (25-Qty)Available
FCB49.5-R25Simpson Strong-Tie FCB49.5-R25 FCB 9-1/2-in. Bypass Framing Fixed-Clip Connector (25-Qty)Available
FSB3.518-R25Simpson Strong-Tie FSB3.518-R25 FSB Bypass Framing Fixed-Clip Strut Connector (Qty-25)Available
GP1212/68-R15Simpson Strong-Tie GP1212/68-R15 GP 12 in. x 12 in. Galvanized Gusset Plate (15-Qty)Available
GP1212/97-R10Simpson Strong-Tie GP1212/97-R10 GP 12 in. x 12 in. Galvanized Gusset Plate (10-Qty)Available

Product Details

Key Features

  • Prepunched holes reduce installation cost by eliminating predrilling
  • Intuitive fastener hole positions ensure accurate clip installation in accordance with design, support a wide range of design and application requirements and provide installation flexibility
  • Angle lengths accommodate either hard-side or soft-side attachment for joists with return lips up to 3/4"
  • 4 1/2" leg length enables soft-side connections for joists with flanges up to 3 1/2"
  • Also accommodates kicker-to-metal-deck applications

Material

  • SJC — 68 mil (50 ksi); MSJC — 97 mil (50 ksi)

Finish

  • Galvanized (G90)

Installation

  • Use all specified fasteners/anchors
  • For 6" and 8" joists: SSC connectors are recommended

Related Links

Catalog Pages

Patent Information

  • US Patent D730,545
