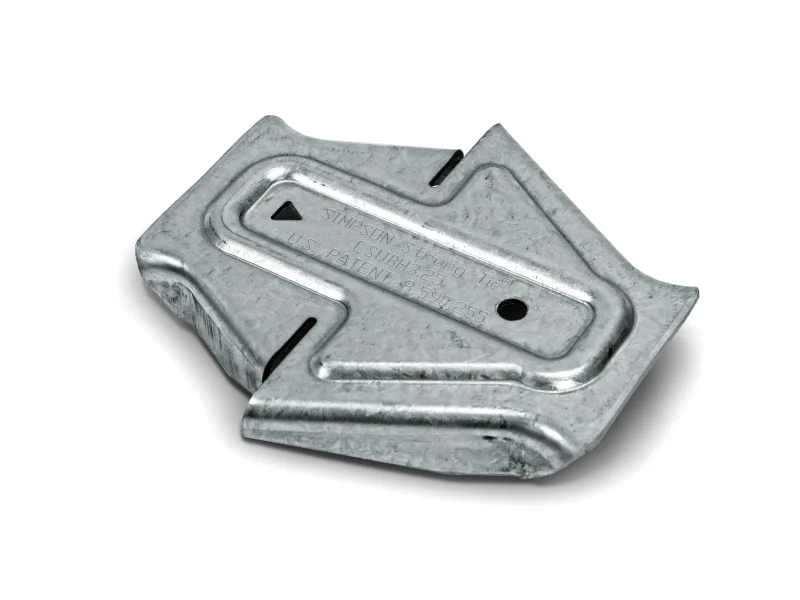

Simpson Strong-Tie LSUBH3.25-R150 LSUBH 3-1/4 in. 20 ga. Bridging Connector (Qty-150)
SKU: LSUBH3.25-R150
Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
Product Description
Simpson Strong-Tie® cold-formed steel connectors are designed to provide the strength and performance required in every cold-formed steel (CFS) application. From hangers, holdowns and steel studs to hand-bendable framing members for creating curved walls on CFS jobsites, Simpson Strong-Tie offers a wide variety of sizes, materials and finishes for every project, big and small. SUBH wall stud bridging connectors for cold-formed steel framing feature a compact profile that allows standard 1-5/8 in. studs to be sistered directly against adjacent studs.
Available Sizes & Options
Product Details
Key Features
- Tested to include stud-web strength and stiffness in the tabulated design values
- Design values ensure compliance with AISI S100 Sections C2.2.1 and C2.3 for axially and laterally-loaded studs
- Flexible design solutions for web thicknesses of 33 mil (20 ga.) through 97 mil (12 ga.) and stud sizes from 3 5/8" to 8"
- SUBH and LSUBH accommodate single studs 33 mil (20 ga.) to 54 mil (16 ga.)
- MSUBH accommodates single studs 54 mil (16 ga.) to 97 mil (12 ga.) and back-to-back built-up members ranging from 33 mil (20 ga.) to 54 mil (16 ga.)
Material
- LSUBH3.25 — 33 mil (20 ga.); SUBH3.25 — 43 mil (18 ga.); MSUBH3.25 — 68 mil (14 ga.)
Finish
- Galvanized (G90)
Installation
- See gallery for installation images
Related Links
Patent Information
- US Patents 8,813,456; 8,590,255
