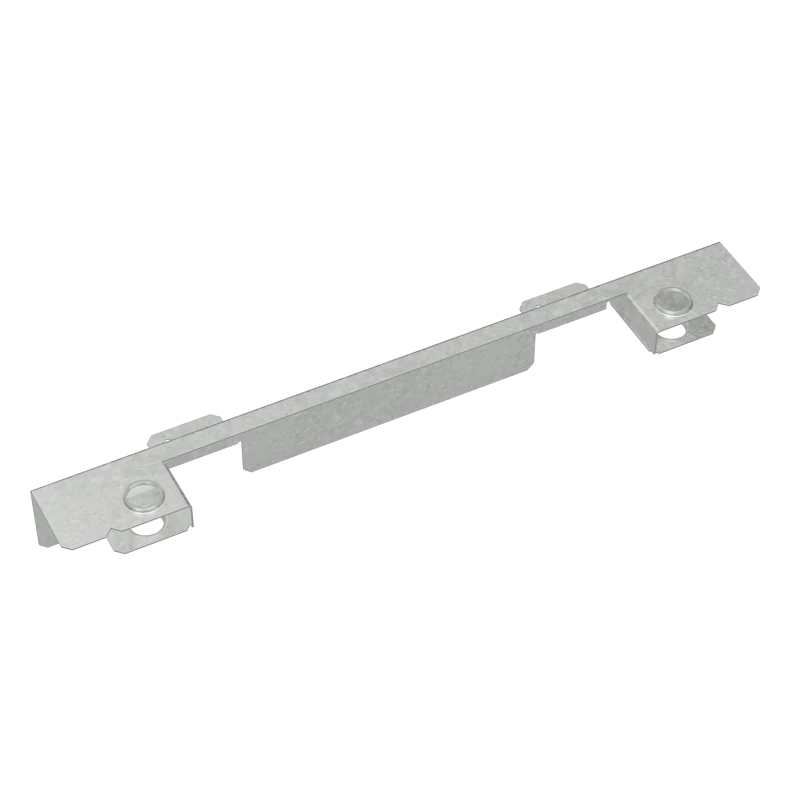

Simpson Strong-Tie SSWT24 Reversible Anchor Bolt Template for 24-in. Steel Strong-Wall® Shearwall
Shearwalls

Simpson Strong-Tie SSWT24 Reversible Anchor Bolt Template for 24-in. Steel Strong-Wall® Shearwall

SKU: SSWT24
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

Simpson Strong-Tie® Steel Strong-Wall anchor bolt templates are designed to help accurately locate SSWAB preassembled anchor bolts. These anchor bolt templates simplify installation and greatly reduce the likelihood of voids in the concrete. The Steel Strong-Wall anchor bolt templates are reusable and designed to work with the common foundation types used for Steel Strong-Wall shearwalls.

Available Sizes & Options

SKUProductStatus
SSWT24Simpson Strong-Tie SSWT24 Reversible Anchor Bolt Template for 24-in. Steel Strong-Wall® Shearwall CurrentAvailable
SSW18X10Simpson Strong-Tie SSW18X10 18 in. x Nominal 10 ft. Steel Strong-Wall® ShearwallAvailable
SSW18X9Simpson Strong-Tie SSW18X9 18 in. x Nominal 9 ft. Steel Strong-Wall® ShearwallAvailable
SSW24X8Simpson Strong-Tie SSW24X8 24 in. x Nominal 8 ft. Steel Strong-Wall® ShearwallAvailable
SSW24X9Simpson Strong-Tie SSW24X9 24 in. x Nominal 9 ft. Steel Strong-Wall® ShearwallAvailable
SSWAB1X36HS-USimpson Strong-Tie SSWAB1X36HS-U SSWAB 1 in. x 36 in. Steel Strong-Wall® Anchor Bolt with Un-peened Compression NutAvailable
SSWT18Simpson Strong-Tie SSWT18 Reversible Anchor Bolt Template for 18-in. Steel Strong-Wall® ShearwallAvailable
WSWH-AB1X36HSSimpson Strong-Tie WSWH-AB1X36HS 1 in. x 36 in. Strong-Wall® High-Strength Wood Shearwall High-Strength Anchor BoltAvailable
WSWH-RT18Simpson Strong-Tie WSWH-RT18 Reversible Anchor Bolt Template for 18 in. Strong-Wall® High-Strength Wood ShearwallAvailable
WSWH-RT24Simpson Strong-Tie WSWH-RT24 Reversible Anchor Bolt Template for 24 in. Strong-Wall® High-Strength Wood ShearwallAvailable
WSWH18X8Simpson Strong-Tie WSWH18X8 18 in. x 96 in. Strong-Wall® High-Strength Wood ShearwallAvailable
WSWH18X9Simpson Strong-Tie WSWH18X9 18 in. x 108 in. Strong-Wall® High-Strength Wood ShearwallAvailable
WSWH24X10Simpson Strong-Tie WSWH24X10 24 in. x 120 in. Strong-Wall® High-Strength Wood ShearwallAvailable
WSWH24X9Simpson Strong-Tie WSWH24X9 24 in. x 108 in. Strong-Wall® High-Strength Wood ShearwallAvailable

Product Details

Key Features

  • Accurately locates anchor bolts for Steel Strong-Wall shearwalls
  • Templates can be used with various anchor bolt models
  • Variety of templates to fit all application needs

Applications

  • Anchorage for: standard application on concrete foundation; garage portal systems on concrete foundations; first-story wood floor systems; balloon framing on concrete foundations; two-story stacked on concrete foundations; cold formed steel on concrete foundations

Installation

  • Installation of Steel Strong-Wall anchor bolt templates varies by application
