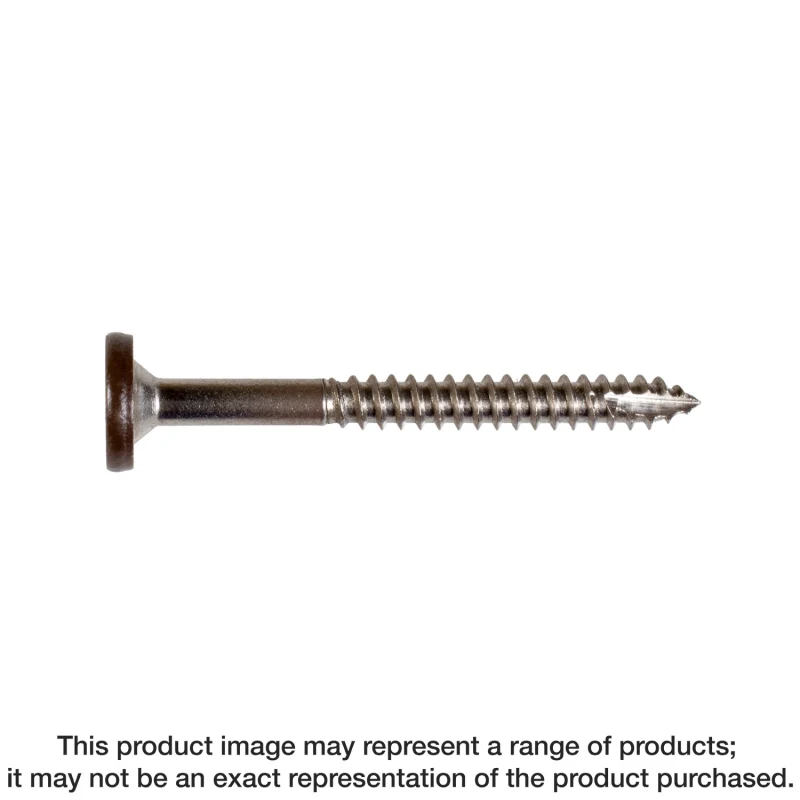

Simpson Strong-Tie T08175FS75TN02 Fascia Board Screw — #8 x 1-3/4 in. T-20 6-Lobe Pancake Head Type 316, Tan 02 (75-Qty)

• Type-17 tip for fast starts
• Type 316 stainless steel provides severe-level corrosion resistance
• Low-profile pancake head resists pullover (available in 12 colors)
• Underhead chamfer for increased shear resistance
• Deep T20 6-lobe recess for reduced cam-outs (bit part number: BIT20T-2-RC3)

• PVC and composite fascia board installations

• Fascia screws include a 6-lobe BIT20T-2 driver bit

Easy and efficient. Use the fascia counterbore bit to predrill the oversized, counterbore holes into your fascia material. Refer to the spacing diagram in the Gallery, Installation tab.

1. Starting at the upper left corner, position the first hole 2" from the upper and left edges (top left corner). Then continue predrilling holes every 24" on center, with the final hole positioned 2" from the right edge. Repeat this process, starting 2" from the bottom and left edges (bottom left corner), but place the second hole 12" from the first and then stagger predrill holes every 24" after that, with the final hole 2" from the bottom and right edges.
2. Using a drill-driver motor with torsion setting adjusted to drive the screw flush with the board surface, install fascia screws into each hole. Do not overdrive or over tighten.
