Simpson Strong-Tie T08175FS75BR01 Fascia Board Screw — #8 x 1-3/4 in. T-20 6-Lobe Pancake Head Type 316, Brown 01 (75-Qty)
Screws

Simpson Strong-Tie T08175FS75BR01 Fascia Board Screw — #8 x 1-3/4 in. T-20 6-Lobe Pancake Head Type 316, Brown 01 (75-Qty)

SKU: T08175FS75BR01
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

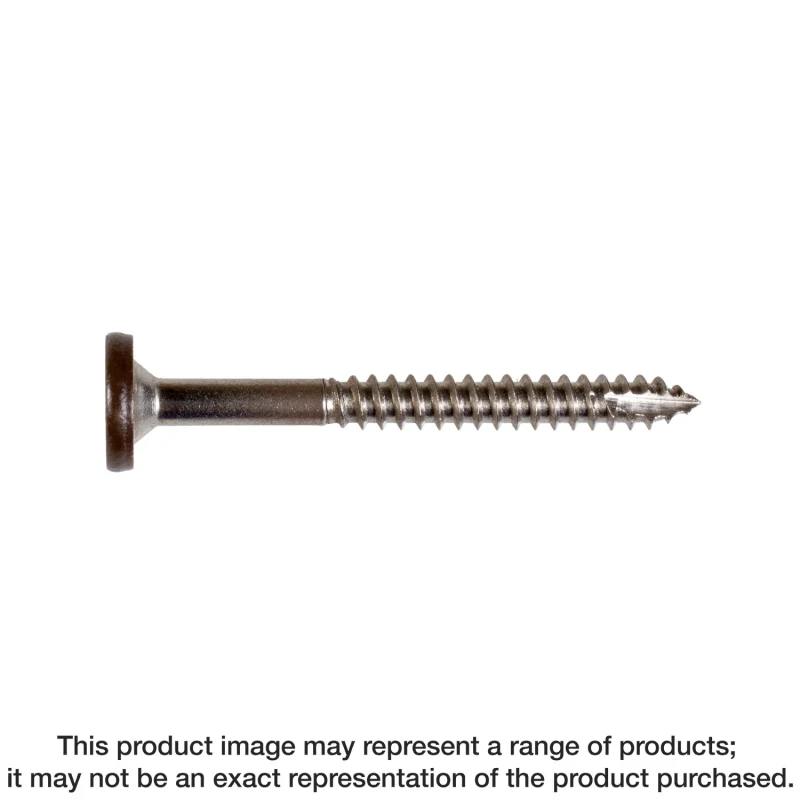

Type 316 stainless steel #8 x 1-3/4 in. fascia board screws with a T-20 6-lobe pancake head, sold in 75-count boxes. Designed for composite decking fascia applications where corrosion resistance is critical.

Available Sizes & Options

SKUProductStatus
T08175FS75BR01Simpson Strong-Tie T08175FS75BR01 Fascia Board Screw — #8 x 1-3/4 in. T-20 6-Lobe Pancake Head Type 316, Brown 01 (75-Qty) CurrentAvailable
87040000000001SIMPSON STRONG-DRIVE FR SCREWSAvailable
87050000000001SIMPSON STRONG-DRIVE TRUSS SCREWAvailable
SDS112SSimpson Strong-Tie #9 1 1/2 Structural Screw 100 CountAvailable
SDS212SSimpson Strong-Tie #9 2 1/2 Structural Screw 100 CountAvailable
112CONNECTORSimpson Strong-Tie 100 Count #10 x 1 1/2 Connector ScrewAvailable
10D5HDGRSimpson Strong-Tie 250ct 10d x 3 Conn Nail HdgAvailable
38THHDG4Simpson Strong-Tie 3/8 x 4 T/hex Screw HdgAvailable
5LED250Simpson Strong-Tie 5 Ledgerlok Screws 250pcAvailable
5T50BLKSimpson Strong-Tie 5" Truss-ply Screw 50 PackAvailable
5EWP50Simpson Strong-Tie 50 Pack 5 Ewp-plt Screws I/gAvailable
N10D5HDGRSimpson Strong-Tie 600ct 10d x 1 1/2 Conn Nail HdgAvailable
N8D5HDGRSimpson Strong-Tie 750 Count 8d x 1-1/2" Hot-dipped Galvanized Connector NailsAvailable
3SDF75Simpson Strong-Tie 75pk 3 S/d Framing ScrewsAvailable
CB3BLG114SSimpson Strong-Tie CB3BLG114S CB3BLG Fiber-Cement Board Screw (Collated) — #10 x 1-1/4 in. #3 SQU (1500-Qty)Available
CB3BLG158SSimpson Strong-Tie CB3BLG158S CB3BLG Fiber-Cement Board Screw (Collated) — #10 x 1-5/8 in. #3 SQU (1500-Qty)Available
CB3BLGHL114SSimpson Strong-Tie CB3BLGHL114S CB3BLGHL Fiber-Cement Board Screw (Collated)— #9 x 1-1/4 in. #3 SQU (1500-Qty)Available
CB3BLGHL158SSimpson Strong-Tie CB3BLGHL158S CB3BLGHL Fiber-Cement Board Screw (Collated)— #9 x 1-5/8 in. #3 SQU (1500-Qty)Available
CBSDQ106-5KSimpson Strong-Tie CBSDQ106-5K CBSDQ Sheathing-to-CFS Screw — #8 x 1-1/16 in. #2 Square Undersized, Quik Guard® (5000-Qty)Available
CBSDQ106SSimpson Strong-Tie CBSDQ106S CBSDQ Sheathing-to-CFS Screw (Collated) — #8 x 1-1/16 in. #2 Square Undersized (2500-Qty)Available
CBSDQ138-5KSimpson Strong-Tie CBSDQ138-5K CBSDQ Sheathing-to-CFS Screw — #10 x 1-3/8 in. #2 Square Undersized, Quik Guard® (5000-Qty)Available

Product Details

Key Features

  • Type-17 tip for fast starts
  • Type 316 stainless steel provides severe-level corrosion resistance
  • Low-profile pancake head resists pullover (available in 12 colors)
  • Underhead chamfer for increased shear resistance
  • Deep T20 6-lobe recess for reduced cam-outs (bit part number: BIT20T-2-RC3)

Applications

  • PVC and composite fascia board installations

Product Includes

  • Fascia screws include a 6-lobe BIT20T-2 driver bit

Installation

Easy and efficient. Use the fascia counterbore bit to predrill the oversized, counterbore holes into your fascia material. Refer to the spacing diagram in the Gallery, Installation tab.

  1. Starting at the upper left corner, position the first hole 2" from the upper and left edges (top left corner). Then continue predrilling holes every 24" on center, with the final hole positioned 2" from the right edge. Repeat this process, starting 2" from the bottom and left edges (bottom left corner), but place the second hole 12" from the first and then stagger predrill holes every 24" after that, with the final hole 2" from the bottom and right edges.
  2. Using a drill-driver motor with torsion setting adjusted to drive the screw flush with the board surface, install fascia screws into each hole. Do not overdrive or over tighten.
