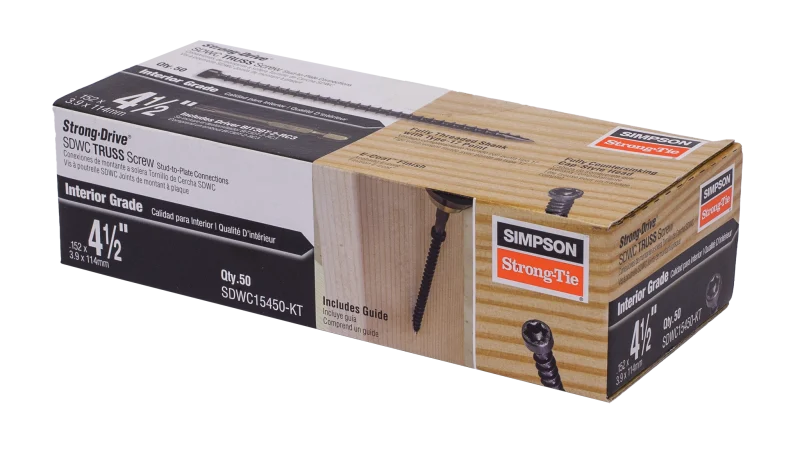

Simpson Strong-Tie SDWC15450-KT Strong-Drive® SDWC® TRUSS Screw — .155 in. x 4-1/2 in. T30 6-Lobe E-coat®, Black (50-Qty)
Screws

Simpson Strong-Tie SDWC15450-KT Strong-Drive® SDWC® TRUSS Screw — .155 in. x 4-1/2 in. T30 6-Lobe E-coat®, Black (50-Qty)

SKU: SDWC15450-KT
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

The Strong-Drive® SDWC® Truss screw provides a time-saving and reliable option to fastening trusses and rafters to wall top plates. This high-strength structural wood screw is designed with a shorter thread length to fasten multi-ply members such as plated trusses, engineered-lumber products and solid-sawn lumber. The fully-threaded shank engages the entire length of the fastener, providing a secure connection between the roof and wall framing members.

Available Sizes & Options

SKUProductStatus
SDWC15450-KTSimpson Strong-Tie SDWC15450-KT Strong-Drive® SDWC® TRUSS Screw — .155 in. x 4-1/2 in. T30 6-Lobe E-coat®, Black (50-Qty) CurrentAvailable
87040000000001SIMPSON STRONG-DRIVE FR SCREWSAvailable
87050000000001SIMPSON STRONG-DRIVE TRUSS SCREWAvailable
SDS112SSimpson Strong-Tie #9 1 1/2 Structural Screw 100 CountAvailable
SDS212SSimpson Strong-Tie #9 2 1/2 Structural Screw 100 CountAvailable
112CONNECTORSimpson Strong-Tie 100 Count #10 x 1 1/2 Connector ScrewAvailable
10D5HDGRSimpson Strong-Tie 250ct 10d x 3 Conn Nail HdgAvailable
38THHDG4Simpson Strong-Tie 3/8 x 4 T/hex Screw HdgAvailable
5LED250Simpson Strong-Tie 5 Ledgerlok Screws 250pcAvailable
5T50BLKSimpson Strong-Tie 5" Truss-ply Screw 50 PackAvailable
5EWP50Simpson Strong-Tie 50 Pack 5 Ewp-plt Screws I/gAvailable
N10D5HDGRSimpson Strong-Tie 600ct 10d x 1 1/2 Conn Nail HdgAvailable
N8D5HDGRSimpson Strong-Tie 750 Count 8d x 1-1/2" Hot-dipped Galvanized Connector NailsAvailable
3SDF75Simpson Strong-Tie 75pk 3 S/d Framing ScrewsAvailable
CB3BLG114SSimpson Strong-Tie CB3BLG114S CB3BLG Fiber-Cement Board Screw (Collated) — #10 x 1-1/4 in. #3 SQU (1500-Qty)Available
CB3BLG158SSimpson Strong-Tie CB3BLG158S CB3BLG Fiber-Cement Board Screw (Collated) — #10 x 1-5/8 in. #3 SQU (1500-Qty)Available
CB3BLGHL114SSimpson Strong-Tie CB3BLGHL114S CB3BLGHL Fiber-Cement Board Screw (Collated)— #9 x 1-1/4 in. #3 SQU (1500-Qty)Available
CB3BLGHL158SSimpson Strong-Tie CB3BLGHL158S CB3BLGHL Fiber-Cement Board Screw (Collated)— #9 x 1-5/8 in. #3 SQU (1500-Qty)Available
CBSDQ106-5KSimpson Strong-Tie CBSDQ106-5K CBSDQ Sheathing-to-CFS Screw — #8 x 1-1/16 in. #2 Square Undersized, Quik Guard® (5000-Qty)Available
CBSDQ106SSimpson Strong-Tie CBSDQ106S CBSDQ Sheathing-to-CFS Screw (Collated) — #8 x 1-1/16 in. #2 Square Undersized (2500-Qty)Available
CBSDQ138-5KSimpson Strong-Tie CBSDQ138-5K CBSDQ Sheathing-to-CFS Screw — #10 x 1-3/8 in. #2 Square Undersized, Quik Guard® (5000-Qty)Available

Product Details

Key Features

  • Fully threaded shank engages the entire length of the fastener, providing a secure connection between the roof and wall framing members
  • Cap-style head countersinks fully into the double top plate to avoid interference with drywall or finish trades
  • Wide tolerance on installation angle makes it easy to install the SDWC correctly
  • Can be installed from inside the structure, eliminating exterior work on the upper stories and enhancing job safety
  • 6-lobe, T30 driver bit provides positive engagement that makes the screw easy to drive and improves bit life (replacement driver bit — BIT30T-2-R2)
  • Fastening can be performed before or after exterior sheathing is applied for added flexibility
  • Metal installation guide tool (included) to help ensure proper installation
  • 6" SDWC Truss screw has orange coating for easy inspection
  • Type-17 point for faster starts and easier driving
  • SDWC15450 is recognized for use in chemically treated wood as described in the evaluation report

Applications

  • Truss/rafter-to-plate and stud-to-plate connections

Product Includes

SDWC15450-KT and SDWC15600-KT contain:

  • (50) Strong-Drive SDWC screws
  • (1) Matched-tolerance driver bit (part no. BIT30T-2-R2; also sold separately)
  • (1) Metal installation guide tool
    • SDWC-GUIDE (for SDWC15600 only)
  • (500) Strong-Drive SDWC screws
  • (2) Matched-tolerance driver bits (part no. BIT30T-2-R2; also sold separately)
  • (2) Metal installation guide tools
    • SDWC-GUIDE (for SDWC15600 only)
      or
    • SDWC-GUIDE275 (for SDWC15450 only)

Installation
