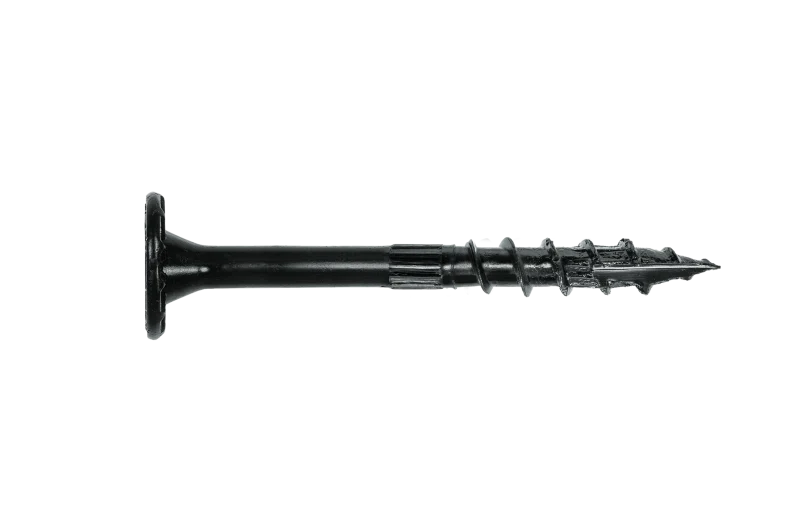

Simpson Strong-Tie SDW22300-R50 Strong-Drive® SDW™ TRUSS-PLY Screw — .220 in. x 3 in. T40 6-Lobe E-coat® (50-Qty)
Screws

Simpson Strong-Tie SDW22300-R50 Strong-Drive® SDW™ TRUSS-PLY Screw — .220 in. x 3 in. T40 6-Lobe E-coat® (50-Qty)

SKU: SDW22300-R50
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

The Strong-Drive SDW Truss-Ply screw is a high-strength structural wood screw specifically designed for fastening multi-ply members, such as joining plated trusses and solid sawn lumber. The SDW installs easily with no predrilling and is available in optimized lengths for fastening 2-, 3- and 4-ply trusses. With the SDW Truss-Ply screw, multi-ply trusses and beams can be fastened from one side without requiring the lifting and flipping of heavy assemblies. It is code listed and meets IRC® and IBC® code requirements for several common framing applications.

Available Sizes & Options

SKUProductStatus
SDW22300-R50Simpson Strong-Tie SDW22300-R50 Strong-Drive® SDW™ TRUSS-PLY Screw — .220 in. x 3 in. T40 6-Lobe E-coat® (50-Qty) CurrentAvailable
87040000000001SIMPSON STRONG-DRIVE FR SCREWSAvailable
87050000000001SIMPSON STRONG-DRIVE TRUSS SCREWAvailable
SDS112SSimpson Strong-Tie #9 1 1/2 Structural Screw 100 CountAvailable
SDS212SSimpson Strong-Tie #9 2 1/2 Structural Screw 100 CountAvailable
112CONNECTORSimpson Strong-Tie 100 Count #10 x 1 1/2 Connector ScrewAvailable
10D5HDGRSimpson Strong-Tie 250ct 10d x 3 Conn Nail HdgAvailable
38THHDG4Simpson Strong-Tie 3/8 x 4 T/hex Screw HdgAvailable
5LED250Simpson Strong-Tie 5 Ledgerlok Screws 250pcAvailable
5T50BLKSimpson Strong-Tie 5" Truss-ply Screw 50 PackAvailable
5EWP50Simpson Strong-Tie 50 Pack 5 Ewp-plt Screws I/gAvailable
N10D5HDGRSimpson Strong-Tie 600ct 10d x 1 1/2 Conn Nail HdgAvailable
N8D5HDGRSimpson Strong-Tie 750 Count 8d x 1-1/2" Hot-dipped Galvanized Connector NailsAvailable
3SDF75Simpson Strong-Tie 75pk 3 S/d Framing ScrewsAvailable
CB3BLG114SSimpson Strong-Tie CB3BLG114S CB3BLG Fiber-Cement Board Screw (Collated) — #10 x 1-1/4 in. #3 SQU (1500-Qty)Available
CB3BLG158SSimpson Strong-Tie CB3BLG158S CB3BLG Fiber-Cement Board Screw (Collated) — #10 x 1-5/8 in. #3 SQU (1500-Qty)Available
CB3BLGHL114SSimpson Strong-Tie CB3BLGHL114S CB3BLGHL Fiber-Cement Board Screw (Collated)— #9 x 1-1/4 in. #3 SQU (1500-Qty)Available
CB3BLGHL158SSimpson Strong-Tie CB3BLGHL158S CB3BLGHL Fiber-Cement Board Screw (Collated)— #9 x 1-5/8 in. #3 SQU (1500-Qty)Available
CBSDQ106-5KSimpson Strong-Tie CBSDQ106-5K CBSDQ Sheathing-to-CFS Screw — #8 x 1-1/16 in. #2 Square Undersized, Quik Guard® (5000-Qty)Available
CBSDQ106SSimpson Strong-Tie CBSDQ106S CBSDQ Sheathing-to-CFS Screw (Collated) — #8 x 1-1/16 in. #2 Square Undersized (2500-Qty)Available
CBSDQ138-5KSimpson Strong-Tie CBSDQ138-5K CBSDQ Sheathing-to-CFS Screw — #10 x 1-3/8 in. #2 Square Undersized, Quik Guard® (5000-Qty)Available

Product Details

Key Features

  • Large washer head with nibs provides maximum bearing area; stamped with the Simpson Strong-Tie “≠” sign and fastener length for easy identification after installation
  • 6-lobe, T40 drive provides positive engagement that makes the screw easy to drive and improves bit life (replacement bit — BIT40T-134-R2)
  • Low-profile head results in less interference after installation; makes stacking and sliding members easier and allows installation of hardware and finishes to be virtually flush
  • Higher shear values than competitive products enable wider spacing, saving time and money
  • Bold thread design provides superior holding power and cinches fastened members together for consistent installation
  • SawTooth® point ensures fast starts, reduces installation torque and eliminates the need for predrilling in most applications
  • Retail and mini-bulk packs include one 6-lobe, T40 driver bit; bulk packs include two driver bits

Applications

  • Truss-ply fastening

Related Links

Catalog Pages

Patent Information

  • US Patents 9,523,383; 11,181,138
