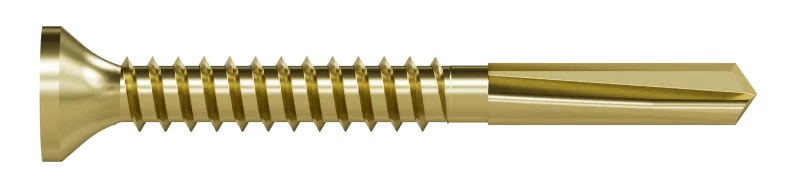

Simpson Strong-Tie PPHD134B1016-4K Strong-Drive® PPHD SHEATHING-TO-CFS Screw — #10 x 1-3/4 in. T25, Yellow Zinc (4000-Qty)
Screws

Simpson Strong-Tie PPHD134B1016-4K Strong-Drive® PPHD SHEATHING-TO-CFS Screw — #10 x 1-3/4 in. T25, Yellow Zinc (4000-Qty)

SKU: PPHD134B1016-4K
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

Simpson Strong-Tie® metal screws are designed to provide strength and superior performance in steel and other metal applications. With a variety of features, these fasteners meet the requirements for residential, agricultural and commercial projects. The Strong-Drive PPHD Sheathing-to-CFS screw is designed to drive through sheathing materials and into cold-formed steel (CFS) using its long #5 drill point and buttressed thread design. The Strong-Drive PPHD Sheathing-to-CFS screw comes collated for use in Quik Drive auto-feed screw driving systems and in bulk for hand drive applications.

Available Sizes & Options

SKUProductStatus
PPHD134B1016-4KSimpson Strong-Tie PPHD134B1016-4K Strong-Drive® PPHD SHEATHING-TO-CFS Screw — #10 x 1-3/4 in. T25, Yellow Zinc (4000-Qty) CurrentAvailable
87040000000001SIMPSON STRONG-DRIVE FR SCREWSAvailable
87050000000001SIMPSON STRONG-DRIVE TRUSS SCREWAvailable
SDS112SSimpson Strong-Tie #9 1 1/2 Structural Screw 100 CountAvailable
SDS212SSimpson Strong-Tie #9 2 1/2 Structural Screw 100 CountAvailable
112CONNECTORSimpson Strong-Tie 100 Count #10 x 1 1/2 Connector ScrewAvailable
10D5HDGRSimpson Strong-Tie 250ct 10d x 3 Conn Nail HdgAvailable
38THHDG4Simpson Strong-Tie 3/8 x 4 T/hex Screw HdgAvailable
5LED250Simpson Strong-Tie 5 Ledgerlok Screws 250pcAvailable
5T50BLKSimpson Strong-Tie 5" Truss-ply Screw 50 PackAvailable
5EWP50Simpson Strong-Tie 50 Pack 5 Ewp-plt Screws I/gAvailable
N10D5HDGRSimpson Strong-Tie 600ct 10d x 1 1/2 Conn Nail HdgAvailable
N8D5HDGRSimpson Strong-Tie 750 Count 8d x 1-1/2" Hot-dipped Galvanized Connector NailsAvailable
3SDF75Simpson Strong-Tie 75pk 3 S/d Framing ScrewsAvailable
CB3BLG114SSimpson Strong-Tie CB3BLG114S CB3BLG Fiber-Cement Board Screw (Collated) — #10 x 1-1/4 in. #3 SQU (1500-Qty)Available
CB3BLG158SSimpson Strong-Tie CB3BLG158S CB3BLG Fiber-Cement Board Screw (Collated) — #10 x 1-5/8 in. #3 SQU (1500-Qty)Available
CB3BLGHL114SSimpson Strong-Tie CB3BLGHL114S CB3BLGHL Fiber-Cement Board Screw (Collated)— #9 x 1-1/4 in. #3 SQU (1500-Qty)Available
CB3BLGHL158SSimpson Strong-Tie CB3BLGHL158S CB3BLGHL Fiber-Cement Board Screw (Collated)— #9 x 1-5/8 in. #3 SQU (1500-Qty)Available
CBSDQ106-5KSimpson Strong-Tie CBSDQ106-5K CBSDQ Sheathing-to-CFS Screw — #8 x 1-1/16 in. #2 Square Undersized, Quik Guard® (5000-Qty)Available
CBSDQ106SSimpson Strong-Tie CBSDQ106S CBSDQ Sheathing-to-CFS Screw (Collated) — #8 x 1-1/16 in. #2 Square Undersized (2500-Qty)Available
CBSDQ138-5KSimpson Strong-Tie CBSDQ138-5K CBSDQ Sheathing-to-CFS Screw — #10 x 1-3/8 in. #2 Square Undersized, Quik Guard® (5000-Qty)Available

Product Details

Key Features

  • 6-lobe drive (driver bit in each box; use replacement bit model BIT25T-2-R2)
  • Fine threads
  • Pilot point
  • Quik Guard® and yellow zinc coating
  • PPHD screws may be used as prescribed by the codes for shearwalls and diaphragms as described in AISI S240 and AISI S400
  • Designed for use in dry service, low-corrosion environments and some fire-rated sheathing

Applications

  • Fastening wood structural panels and other building materials to cold-formed steel framing.

Warning

  • Industry studies show that hardened fasteners can experience performance problems in wet or corrosive environments. Accordingly, use this product in dry, interior, and noncorrosive environments only.

Installation

  • #8 — maximum thickness 16 ga.
  • #10 and #12 — maximum thickness two layers of 12 ga. (0.218" total)
  • Recommended maximum wood panel sheathing thickness are as follows: #8 x 1 15/16" — 7/8"; #10 x 1 3/4" — 19/32"; #12 — 19/32"
