Product Description

Use this screw for securing wood, plywood and fiber cement to steel (up to 0.209" thick). Wings bore through wood to create a clearance hole so piece does not climb up shank and then break off as they engage with steel.

Available Sizes & Options

SKUProductStatus
F12C250FDBSimpson Strong-Tie F12C250FDB Self-Drilling Flat-Head Screw with Wings — #12 x 2-1/2 in. #3 Square Type 410 (1800-Qty) CurrentAvailable
87040000000001SIMPSON STRONG-DRIVE FR SCREWSAvailable
87050000000001SIMPSON STRONG-DRIVE TRUSS SCREWAvailable
SDS112SSimpson Strong-Tie #9 1 1/2 Structural Screw 100 CountAvailable
SDS212SSimpson Strong-Tie #9 2 1/2 Structural Screw 100 CountAvailable
112CONNECTORSimpson Strong-Tie 100 Count #10 x 1 1/2 Connector ScrewAvailable
10D5HDGRSimpson Strong-Tie 250ct 10d x 3 Conn Nail HdgAvailable
38THHDG4Simpson Strong-Tie 3/8 x 4 T/hex Screw HdgAvailable
5LED250Simpson Strong-Tie 5 Ledgerlok Screws 250pcAvailable
5T50BLKSimpson Strong-Tie 5" Truss-ply Screw 50 PackAvailable
5EWP50Simpson Strong-Tie 50 Pack 5 Ewp-plt Screws I/gAvailable
N10D5HDGRSimpson Strong-Tie 600ct 10d x 1 1/2 Conn Nail HdgAvailable
N8D5HDGRSimpson Strong-Tie 750 Count 8d x 1-1/2" Hot-dipped Galvanized Connector NailsAvailable
3SDF75Simpson Strong-Tie 75pk 3 S/d Framing ScrewsAvailable
CB3BLG114SSimpson Strong-Tie CB3BLG114S CB3BLG Fiber-Cement Board Screw (Collated) — #10 x 1-1/4 in. #3 SQU (1500-Qty)Available
CB3BLG158SSimpson Strong-Tie CB3BLG158S CB3BLG Fiber-Cement Board Screw (Collated) — #10 x 1-5/8 in. #3 SQU (1500-Qty)Available
CB3BLGHL114SSimpson Strong-Tie CB3BLGHL114S CB3BLGHL Fiber-Cement Board Screw (Collated)— #9 x 1-1/4 in. #3 SQU (1500-Qty)Available
CB3BLGHL158SSimpson Strong-Tie CB3BLGHL158S CB3BLGHL Fiber-Cement Board Screw (Collated)— #9 x 1-5/8 in. #3 SQU (1500-Qty)Available
CBSDQ106-5KSimpson Strong-Tie CBSDQ106-5K CBSDQ Sheathing-to-CFS Screw — #8 x 1-1/16 in. #2 Square Undersized, Quik Guard® (5000-Qty)Available
CBSDQ106SSimpson Strong-Tie CBSDQ106S CBSDQ Sheathing-to-CFS Screw (Collated) — #8 x 1-1/16 in. #2 Square Undersized (2500-Qty)Available
CBSDQ138-5KSimpson Strong-Tie CBSDQ138-5K CBSDQ Sheathing-to-CFS Screw — #10 x 1-3/8 in. #2 Square Undersized, Quik Guard® (5000-Qty)Available

Product Details

Key Features

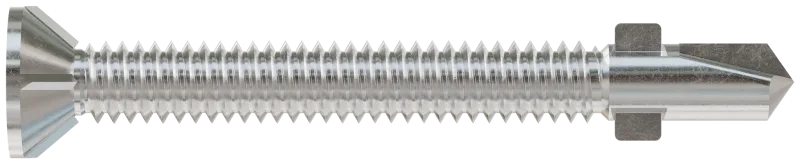

  • Flat countersunk head with self-countersinking nibs.
  • #3 square drive (replacement bit model BIT3S-2-R2).
  • Machine screw thread, threaded full length.
  • Shank slot enhances thread formation in steel and removes exhaust.
  • Wings above drill point provide clearance hole in work piece so it won’t climb up the shank; wings break off as point engages the steel substrate.
  • 2 1/2" length for 2x wood; 2" length for 1" and 5/4" boards.
  • Type 410 stainless steel can be hardened through heat treatment, giving it the ability to drill through metal. It does not offer the same level of corrosion resistance of either Type 316 or 305 stainless steel.

Applications

  • Fasten wood, plywood and fiber cement to steel — up to 0.209" thick

Warning

  • Hardened stainless-steel fasteners should not be used with steel framing in environments with high humidity, condensation or other moisture that will be present at the dissimilar-metal interface

Ordering Information

  • These products are subject to quantities on hand or may require special ordering and are subject to minimum order quantities and longer lead times. Call Simpson Strong‑Tie for details (800) 999-5099.
