Product Description

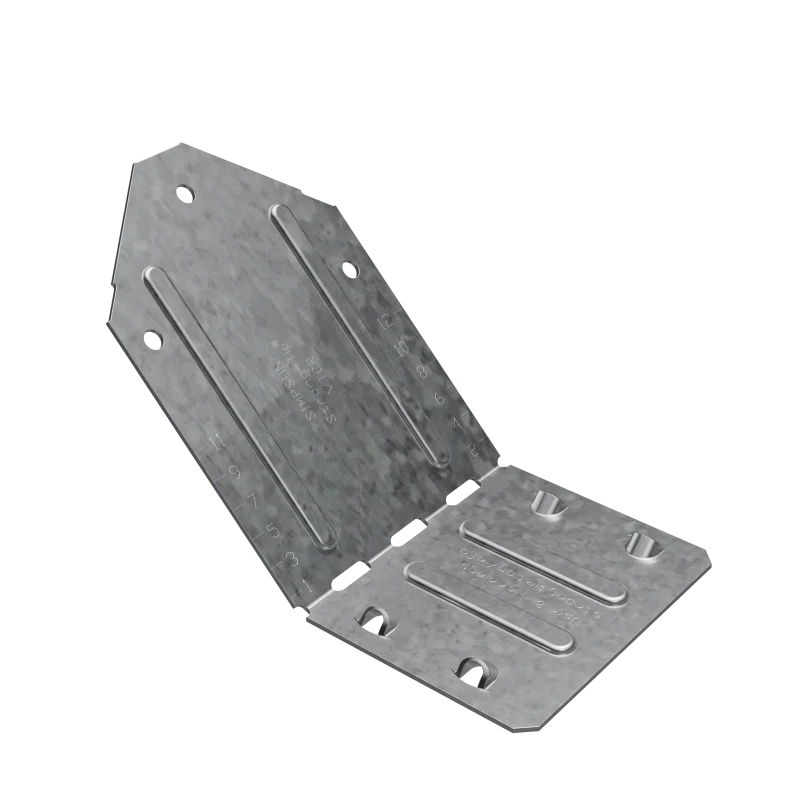

The VTCR is a single-sided valley truss clip that provides a positive connection between the valley truss and the supporting framing below. Installed on top of the roof sheathing, it eliminates the need to add a support wedge under the valley truss or to bevel the bottom chord to match the roof pitch. The clip installs with nails or Simpson Strong-Tie Strong-Drive® SD Connector screws.

Available Sizes & Options

SKUProductStatus
VTCRSimpson Strong-Tie VTCR VTCR Single-Sided Valley Truss Clip CurrentAvailable
IUS1811188Simpson Strong-Tie 1 3/4 x 11-7/8 I Joist HangerAvailable
HUS18110Simpson Strong-Tie 1 3/4 x 9 1/2 Sloped Face Mount HangerAvailable
SUR18111Simpson Strong-Tie 1-3/4 x 11-7/8 Skew 45 R I-beam/lvlAvailable
IUS18195Simpson Strong-Tie 1-3/4 x 9-1/2 Side Mount SingAvailable
1212HLSimpson Strong-Tie 1212HL HL 12 in. x 12 in. 7-Gauge Galvanized Heavy L StrapAvailable
1212HLHDGSimpson Strong-Tie 1212HLHDG HL 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy L StrapAvailable
1212HLPCSimpson Strong-Tie 1212HLPC HLPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental L StrapAvailable
1212HTSimpson Strong-Tie 1212HT HT 12 in. x 12 in. 7-Gauge Galvanized Heavy T StrapAvailable
1212HTHDGSimpson Strong-Tie 1212HTHDG HT 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1212HTPCSimpson Strong-Tie 1212HTPC HTPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1212LSimpson Strong-Tie 1212L 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212L-RSimpson Strong-Tie 1212L-R 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212TSimpson Strong-Tie 1212T 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
1212T-RSimpson Strong-Tie 1212T-R 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
128TSimpson Strong-Tie 128T 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
128T-RSimpson Strong-Tie 128T-R 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
1616HTSimpson Strong-Tie 1616HT HT 16 in. x 16 in. 7-Gauge Galvanized Heavy T StrapAvailable
1616HTHDGSimpson Strong-Tie 1616HTHDG HT 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1616HTPCSimpson Strong-Tie 1616HTPC HTPC 16 in. x 16 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1616HTQSimpson Strong-Tie 1616HTQ HTQ 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable

Product Details

Key Features

  • Single-sided for new construction or retrofit applications — can be installed after the valley truss is set in place
  • Accommodates pitches from 0/12 to 12/12
  • Can be installed on either beveled or non-beveled bottom chords
  • Installs with nails or Strong-Drive® SD Connector screws

Material

  • 18 gauge

Finish

  • Galvanized

Installation

  • The dome holes assist in installing the fasteners into the supporting framing at approximately 45°
