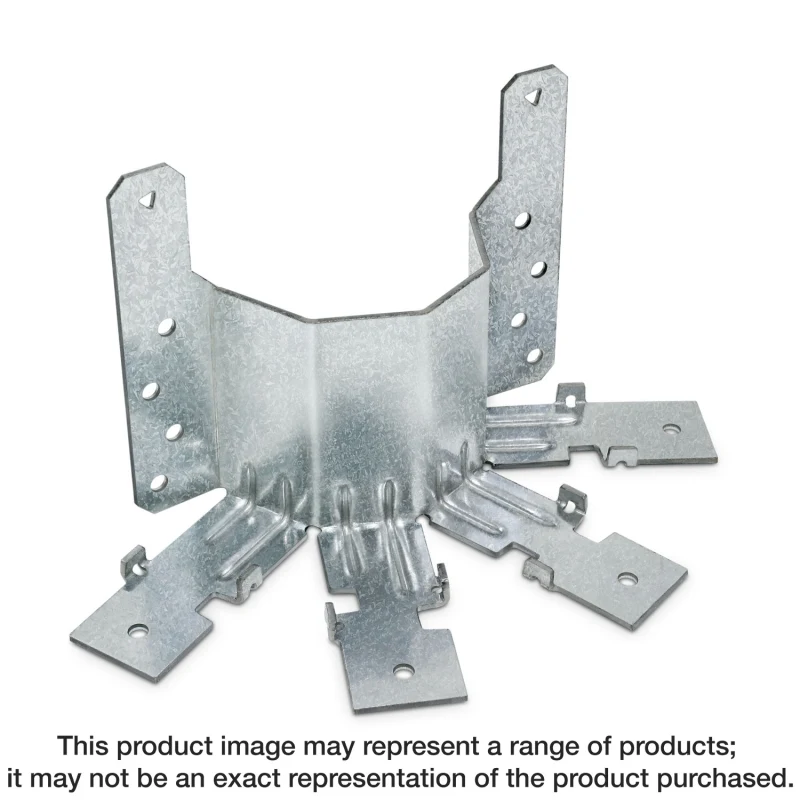

Simpson Strong-Tie Truss Hangers
SKU: THJM2-4-SDS3
Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
Product Description
Simpson Strong-Tie product. Category: Wood Construction Connectors > Truss Hangers >. More info: https://www.strongtie.com/facemounthangersforplatedtruss_hangersforplatedtruss/thjm_hanger/p/thjm
Available Sizes & Options
Product Details
Key Features
- The THJM hangers are designed for installation with 1/4" x 3" Strong-Drive SDS Heavy-Duty Connector screws that are included with the parts.
- The THJM2-4-SDS3 is designed for four incoming jack trusses with the outer jacks being 22 1/2° from the face of the girder and the inner jacks being 45° from each other and the outer jacks.
- The THJM2-5-SDS3 is designed for five jacks coming into the hanger at 30° from the girder and each other.
- Tabs on the seats of the THJM assist in the placement of the jacks and also include obround holes for optional slant nails (0.148" x 1 1/2") when increased uplift is required.
Material
- 12 gauge
Finish
- Galvanized
Installation
- Use all specified fasteners; see General Notes
- Each carried jack truss requires one 1/4" x 3" Strong-Drive SDS Heavy-Duty Connector screw installed into the bottom chord through the bottom of the hanger seat
- For installation on girders with 2x6 or 2x8 bottom chords, install one additional 1/4" x 3" Strong-Drive SDS Heavy-Duty Connector screw in the triangular hole on each vertical strap
- Install two 0.148" x 1 1/2" slant nails in the obround holes on each of the seat tabs to achieve the additional uplift load noted in the table footnotes
Catalog Pages
Patent Information
- US Patent 8,443,569
- Canadian Patent 2,719,864
