Product Description

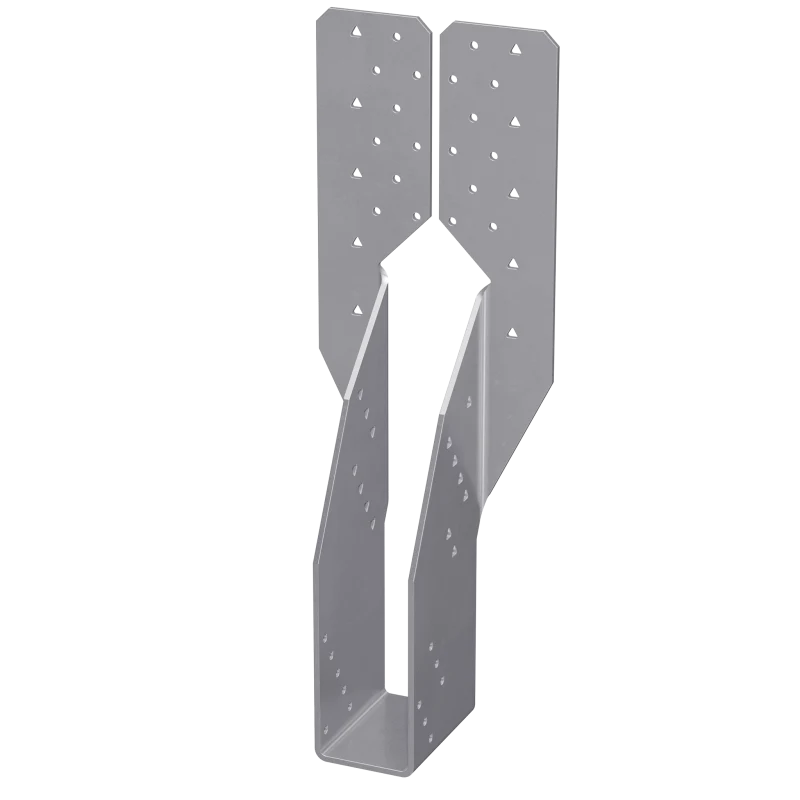

The THGQH is a heavy hanger designed for a girder truss or a structural composite lumber beam attached to a girder truss. A lower-cost alternative to bolted hangers, the THGQH uses Strong-Drive SDS Heavy-Duty Connector screws to provide high load capacities and easier installation. The THGQH offers minimum and maximum fastener quantities to accommodate varying design needs.

Available Sizes & Options

SKUProductStatus
THGQH2-SDS3Simpson Strong-Tie THGQH2-SDS3 THGQH 3-5/16 in. Heavy-Duty Girder Truss Hanger with Strong-Drive® SDS Screws CurrentAvailable
IUS1811188Simpson Strong-Tie 1 3/4 x 11-7/8 I Joist HangerAvailable
HUS18110Simpson Strong-Tie 1 3/4 x 9 1/2 Sloped Face Mount HangerAvailable
SUR18111Simpson Strong-Tie 1-3/4 x 11-7/8 Skew 45 R I-beam/lvlAvailable
IUS18195Simpson Strong-Tie 1-3/4 x 9-1/2 Side Mount SingAvailable
1212HLSimpson Strong-Tie 1212HL HL 12 in. x 12 in. 7-Gauge Galvanized Heavy L StrapAvailable
1212HLHDGSimpson Strong-Tie 1212HLHDG HL 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy L StrapAvailable
1212HLPCSimpson Strong-Tie 1212HLPC HLPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental L StrapAvailable
1212HTSimpson Strong-Tie 1212HT HT 12 in. x 12 in. 7-Gauge Galvanized Heavy T StrapAvailable
1212HTHDGSimpson Strong-Tie 1212HTHDG HT 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1212HTPCSimpson Strong-Tie 1212HTPC HTPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1212LSimpson Strong-Tie 1212L 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212L-RSimpson Strong-Tie 1212L-R 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212TSimpson Strong-Tie 1212T 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
1212T-RSimpson Strong-Tie 1212T-R 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
128TSimpson Strong-Tie 128T 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
128T-RSimpson Strong-Tie 128T-R 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
1616HTSimpson Strong-Tie 1616HT HT 16 in. x 16 in. 7-Gauge Galvanized Heavy T StrapAvailable
1616HTHDGSimpson Strong-Tie 1616HTHDG HT 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1616HTPCSimpson Strong-Tie 1616HTPC HTPC 16 in. x 16 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1616HTQSimpson Strong-Tie 1616HTQ HTQ 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable

Product Details

Key Features

  • Strong-Drive SDS Heavy-Duty Connector screws are included to help transfer the load between the plies of the supporting girder when they penetrate all plies
  • Increased allowable loads available when wider vertical web is used
  • Various models may be skewed 45°

Material

  • 3 ga.

Finish

  • Simpson Strong-Tie gray paint

Options

  • For hem-fir or spruce-pine-fir members, multiply tabulated allowable loads for the skewed THGQH by 0.86. Connector must be installed centered on girder vertical webs.

Installation

  • Use all specified fasteners; see General Notes.
  • Fill all round holes; additionally, fill triangle holes to obtain maximum values.
  • Strong-Drive SDS Heavy-Duty Connector screws are supplied for all round and triangle holes.
  • All multi-ply carried and carrying members must be fastened together to act as a single unit.
  • The screw length should be equal to the assembly thickness of the supporting girder. For applications where the length of the supplied SDS screws does not match the thickness, appropriate-length SDS screws should be used instead.
  • Girders must have adequate lateral bracing to prevent excessive displacement due to secondary torsional stresses (refer to ANSI/TPI 1-2014 Section 7.5.3.5).

Related Links

Catalog Pages

Patent Information

  • US Patent 9,228,338
