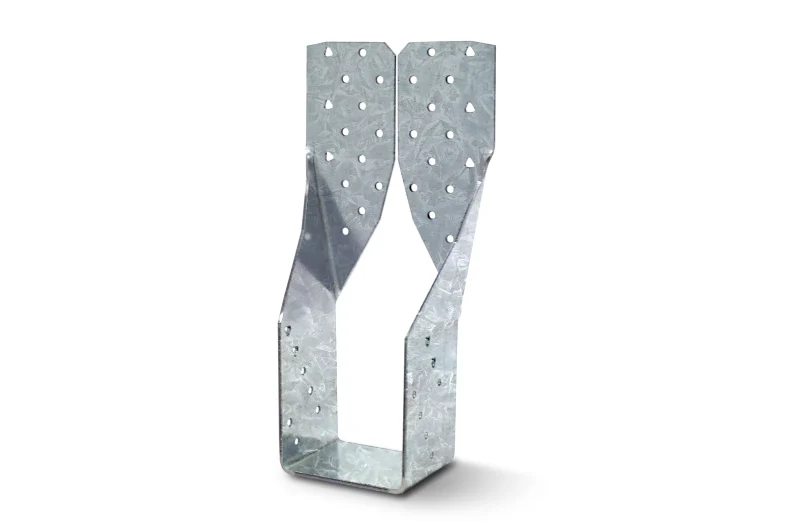

Simpson Strong-Tie THGQ3-SDS4.5 THGQ 4-15/16 in. Heavy-Duty Girder Truss Hanger with Strong-Drive® SDS Screws
Hangers

Simpson Strong-Tie THGQ3-SDS4.5 THGQ 4-15/16 in. Heavy-Duty Girder Truss Hanger with Strong-Drive® SDS Screws

SKU: THGQ3-SDS4.5
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

A lower-cost alternative to bolted hangers, the THGQ hangers for multi-ply girder trusses use Simpson Strong-Tie® Strong-Drive® SDS Heavy-Duty Connector screws to provide high load capacities and easier installation compared to bolts. The Strong-Drive SDS Heavy-Duty Connector screws help transfer the load between the plies of the supporting girder when they penetrate all plies. THGQ models offer minimum and optional maximum fastener quantities to accommodate varying design needs.

Available Sizes & Options

SKUProductStatus
THGQ3-SDS4.5Simpson Strong-Tie THGQ3-SDS4.5 THGQ 4-15/16 in. Heavy-Duty Girder Truss Hanger with Strong-Drive® SDS Screws CurrentAvailable
IUS1811188Simpson Strong-Tie 1 3/4 x 11-7/8 I Joist HangerAvailable
HUS18110Simpson Strong-Tie 1 3/4 x 9 1/2 Sloped Face Mount HangerAvailable
SUR18111Simpson Strong-Tie 1-3/4 x 11-7/8 Skew 45 R I-beam/lvlAvailable
IUS18195Simpson Strong-Tie 1-3/4 x 9-1/2 Side Mount SingAvailable
1212HLSimpson Strong-Tie 1212HL HL 12 in. x 12 in. 7-Gauge Galvanized Heavy L StrapAvailable
1212HLHDGSimpson Strong-Tie 1212HLHDG HL 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy L StrapAvailable
1212HLPCSimpson Strong-Tie 1212HLPC HLPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental L StrapAvailable
1212HTSimpson Strong-Tie 1212HT HT 12 in. x 12 in. 7-Gauge Galvanized Heavy T StrapAvailable
1212HTHDGSimpson Strong-Tie 1212HTHDG HT 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1212HTPCSimpson Strong-Tie 1212HTPC HTPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1212LSimpson Strong-Tie 1212L 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212L-RSimpson Strong-Tie 1212L-R 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212TSimpson Strong-Tie 1212T 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
1212T-RSimpson Strong-Tie 1212T-R 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
128TSimpson Strong-Tie 128T 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
128T-RSimpson Strong-Tie 128T-R 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
1616HTSimpson Strong-Tie 1616HT HT 16 in. x 16 in. 7-Gauge Galvanized Heavy T StrapAvailable
1616HTHDGSimpson Strong-Tie 1616HTHDG HT 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1616HTPCSimpson Strong-Tie 1616HTPC HTPC 16 in. x 16 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1616HTQSimpson Strong-Tie 1616HTQ HTQ 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable

Product Details

Key Features

  • Strong-Drive SDS Heavy-Duty Connector screws are included to help transfer the load between the plies of the supporting girder when they penetrate all plies
  • Increased allowable loads available when wider vertical web is used

Material

  • 7 ga.

Finish

  • Galvanized

Installation

  • Use all specified fasteners; see General Notes.
  • Fill all round holes; additionally, fill triangle holes to obtain maximum values.
  • Strong-Drive SDS Heavy-Duty Connector screws are supplied for all round and triangle holes.
  • All multi-ply carried and carrying members must be fastened together to act as a single unit.
  • The screw length should be equal to the assembly thickness of the supporting girder. For applications where the length of the supplied SDS screws does not match the thickness, appropriate-length SDS screws should be used instead.
  • Girders must have adequate lateral bracing to prevent excessive displacement due to secondary torsional stresses (refer to ANSI/TPI 1-2014 Section 7.5.3.5).

Related Links

Catalog Pages

Patent Information

  • US Patent 9,228,338
