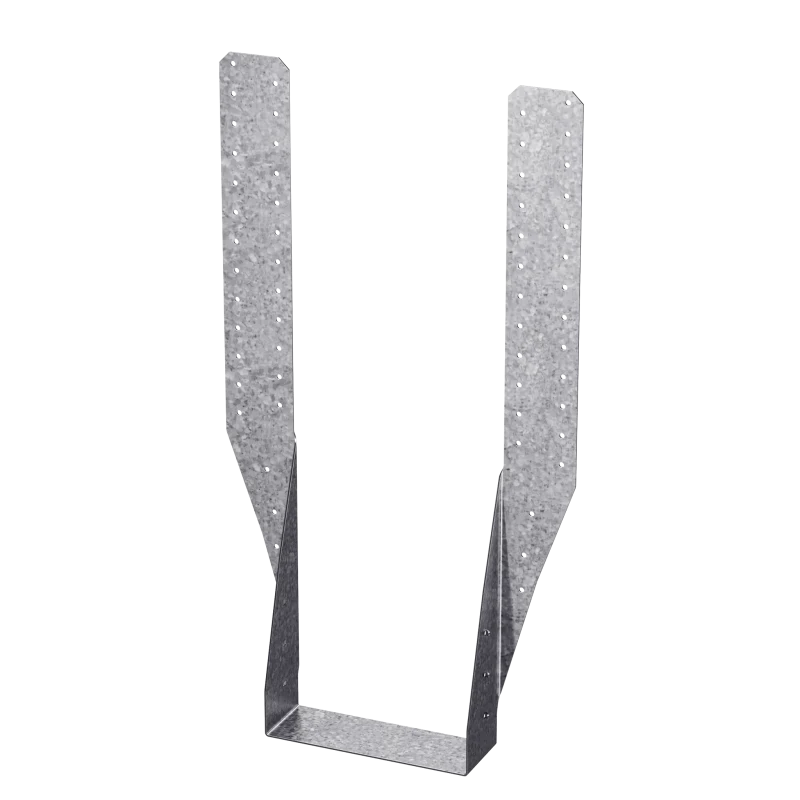

Simpson Strong-Tie THA422-2 THA 22-11/16 in. Galvanized Adjustable Hanger for Double 4x Floor Truss
SKU: THA422-2
Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
Product Description
Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The THA series hangers have extra long straps that can be field-formed to give height adjustability and top-flange hanger convenience.
Available Sizes & Options
Product Details
Key Features
- Extra-long straps for height adjustability and top-flange installation convenience
- Min./max. nailing installation options
- THA4x and THA2x-2 models feature a dense nail pattern in the straps, which provides more installation options and allows for easy top-flange installation
Material
- See table
Finish
- Galvanized. Some products available in ZMAX® coating or HDG. See Corrosion Information.
Installation
- Installation Guide
- Use all specified fasteners; see General Notes.
The following installation methods may be used:
- Top-FIange Installation —The straps must be field formed over the header 2” minimum (2-7/16" for the THA29). Install top and face nails according to the table. Top nails shall not be within 1/4" from the edge of the top-flange members. For all top-flange max conditions, nails used for joist attachment must be driven at an angle so that they penetrate through the joist and into the header. For top-flange min installations (not applicable to the THA29), straighten the double-shear nailing tabs and install the nails straight into the joist. Top-flange max installations require full backing to allow for joist slanted fasteners to be properly installed.
- Face-Mount (Min.) Installation — Install face nails according to the table, with at least half of the required fasteners in the top half of the header. Not all nail holes in the straps will be filled. Nails must have a minimum 1/2" distance from the edge. For nailer and truss-to-truss installation, straighten the double-shear nailing tabs and install the joist nails straight into the joist. The face-mount (min.) installation option accommodates conditions where the supported member hangs either partially or entirely below the header.
- Face-Mount (Max.) Installation — Install face nails according to the table. Not all nail holes in the straps will be filled except for the following models: THA29, THA213, THA218 and THA413. The lowest four face holes must be filled. If needed, the straps may be bent over the top of the carrying member. The required face nail quantity from the table may be distributed between the face and top of the header. Nails used for the joist attachment must be driven at an angle so they completely penetrate the corner of the joist into the header.
