Simpson Strong-Tie THA29 THA 9-11/16 in. Galvanized Adjustable Hanger for 2x Truss
Hangers

Simpson Strong-Tie THA29 THA 9-11/16 in. Galvanized Adjustable Hanger for 2x Truss

SKU: THA29
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

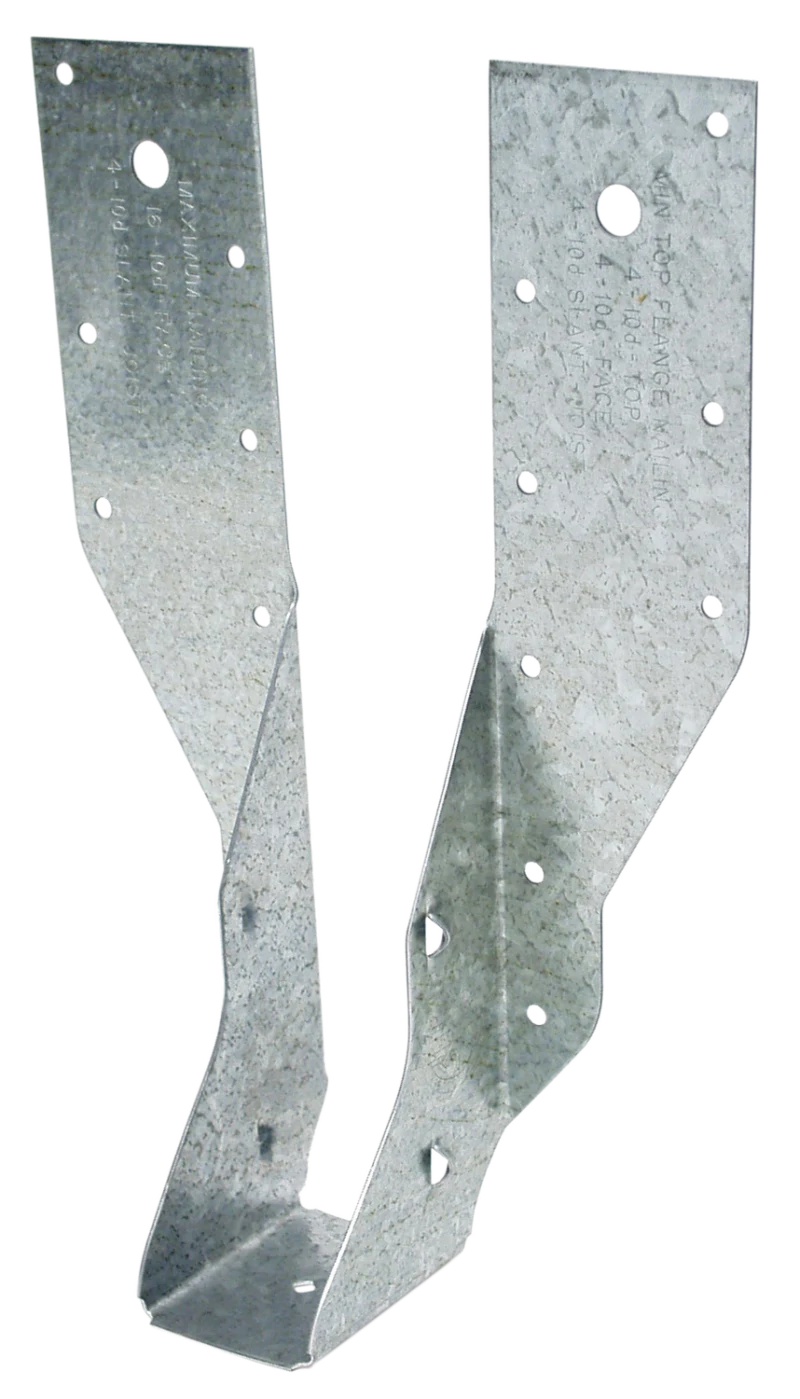

The THA is a wood connector designed to support trusses and beams. This versatile U-shaped truss hanger features long, straight straps for applications where the height location of the truss needs to be adjustable. The field-adjustable THA can be used for top-flange or face-mount installation.

Available Sizes & Options

SKUProductStatus
THA29Simpson Strong-Tie THA29 THA 9-11/16 in. Galvanized Adjustable Hanger for 2x Truss CurrentAvailable
IUS1811188Simpson Strong-Tie 1 3/4 x 11-7/8 I Joist HangerAvailable
HUS18110Simpson Strong-Tie 1 3/4 x 9 1/2 Sloped Face Mount HangerAvailable
SUR18111Simpson Strong-Tie 1-3/4 x 11-7/8 Skew 45 R I-beam/lvlAvailable
IUS18195Simpson Strong-Tie 1-3/4 x 9-1/2 Side Mount SingAvailable
1212HLSimpson Strong-Tie 1212HL HL 12 in. x 12 in. 7-Gauge Galvanized Heavy L StrapAvailable
1212HLHDGSimpson Strong-Tie 1212HLHDG HL 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy L StrapAvailable
1212HLPCSimpson Strong-Tie 1212HLPC HLPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental L StrapAvailable
1212HTSimpson Strong-Tie 1212HT HT 12 in. x 12 in. 7-Gauge Galvanized Heavy T StrapAvailable
1212HTHDGSimpson Strong-Tie 1212HTHDG HT 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1212HTPCSimpson Strong-Tie 1212HTPC HTPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1212LSimpson Strong-Tie 1212L 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212L-RSimpson Strong-Tie 1212L-R 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212TSimpson Strong-Tie 1212T 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
1212T-RSimpson Strong-Tie 1212T-R 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
128TSimpson Strong-Tie 128T 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
128T-RSimpson Strong-Tie 128T-R 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
1616HTSimpson Strong-Tie 1616HT HT 16 in. x 16 in. 7-Gauge Galvanized Heavy T StrapAvailable
1616HTHDGSimpson Strong-Tie 1616HTHDG HT 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1616HTPCSimpson Strong-Tie 1616HTPC HTPC 16 in. x 16 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1616HTQSimpson Strong-Tie 1616HTQ HTQ 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable

Product Details

Key Features

  • Extra-long straps for height adjustability and top-flange installation convenience
  • Min./max. nailing installation options
  • THA4x and THA2x-2 models feature a dense nail pattern in the straps, which provides more installation options and allows for easy top-flange installation

Material

  • See table

Finish

  • Galvanized. Some products available in ZMAX® coating or HDG. See Corrosion Information.

Installation

The following installation methods may be used:

  • Top-FIange Installation —The straps must be field formed over the header 2” minimum (2-7/16" for the THA29). Install top and face nails according to the table. Top nails shall not be within 1/4" from the edge of the top-flange members. For all top-flange max conditions, nails used for joist attachment must be driven at an angle so that they penetrate through the joist and into the header. For top-flange min installations (not applicable to the THA29), straighten the double-shear nailing tabs and install the nails straight into the joist. Top-flange max installations require full backing to allow for joist slanted fasteners to be properly installed.
  • Face-Mount (Min.) Installation — Install face nails according to the table, with at least half of the required fasteners in the top half of the header. Not all nail holes in the straps will be filled. Nails must have a minimum 1/2" distance from the edge. For nailer and truss-to-truss installation, straighten the double-shear nailing tabs and install the joist nails straight into the joist. The face-mount (min.) installation option accommodates conditions where the supported member hangs either partially or entirely below the header.
  • Face-Mount (Max.) Installation — Install face nails according to the table. Not all nail holes in the straps will be filled except for the following models: THA29, THA213, THA218 and THA413. The lowest four face holes must be filled. If needed, the straps may be bent over the top of the carrying member. The required face nail quantity from the table may be distributed between the face and top of the header. Nails used for the joist attachment must be driven at an angle so they completely penetrate the corner of the joist into the header.

Related Links

Catalog Pages

Buy Simpson Strong-Tie THA29 THA 9-11/16 in. Galvanized Adjustable Hanger for 2x Truss in Central New Jersey
