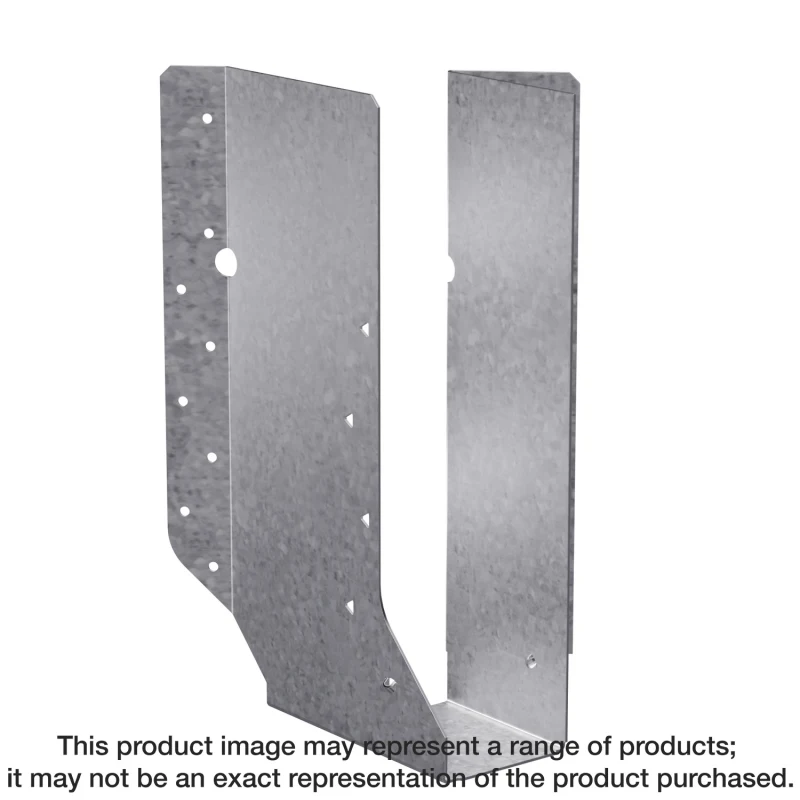

Simpson Strong-Tie SUR5.12/11 SUR Galvanized Joist Hanger for 5 in. x 11-7/8 in. Engineered Wood, Skewed Right
Hangers

Simpson Strong-Tie SUR5.12/11 SUR Galvanized Joist Hanger for 5 in. x 11-7/8 in. Engineered Wood, Skewed Right

SKU: SUR5.12/11
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The SUR/SUL are 45°-skewed hangers designed to support solid sawn and engineered wood products used in wood construction. These U-shaped hangers encapsulate the top flange of the joist, so no web stiffeners are required for standard installation. The SUR and SUL hangers are identical except that they are skewed 45° to the right (SUR) and the left (SUL), respectively.

Available Sizes & Options

SKUProductStatus
SUR5.12/11Simpson Strong-Tie SUR5.12/11 SUR Galvanized Joist Hanger for 5 in. x 11-7/8 in. Engineered Wood, Skewed Right CurrentAvailable
IUS1811188Simpson Strong-Tie 1 3/4 x 11-7/8 I Joist HangerAvailable
HUS18110Simpson Strong-Tie 1 3/4 x 9 1/2 Sloped Face Mount HangerAvailable
SUR18111Simpson Strong-Tie 1-3/4 x 11-7/8 Skew 45 R I-beam/lvlAvailable
IUS18195Simpson Strong-Tie 1-3/4 x 9-1/2 Side Mount SingAvailable
1212HLSimpson Strong-Tie 1212HL HL 12 in. x 12 in. 7-Gauge Galvanized Heavy L StrapAvailable
1212HLHDGSimpson Strong-Tie 1212HLHDG HL 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy L StrapAvailable
1212HLPCSimpson Strong-Tie 1212HLPC HLPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental L StrapAvailable
1212HTSimpson Strong-Tie 1212HT HT 12 in. x 12 in. 7-Gauge Galvanized Heavy T StrapAvailable
1212HTHDGSimpson Strong-Tie 1212HTHDG HT 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1212HTPCSimpson Strong-Tie 1212HTPC HTPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1212LSimpson Strong-Tie 1212L 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212L-RSimpson Strong-Tie 1212L-R 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212TSimpson Strong-Tie 1212T 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
1212T-RSimpson Strong-Tie 1212T-R 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
128TSimpson Strong-Tie 128T 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
128T-RSimpson Strong-Tie 128T-R 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
1616HTSimpson Strong-Tie 1616HT HT 16 in. x 16 in. 7-Gauge Galvanized Heavy T StrapAvailable
1616HTHDGSimpson Strong-Tie 1616HTHDG HT 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1616HTPCSimpson Strong-Tie 1616HTPC HTPC 16 in. x 16 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1616HTQSimpson Strong-Tie 1616HTQ HTQ 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable

Product Details

Key Features

  • Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist
  • These hangers cannot be modified but will accommodate a 40° to 50° skewed joist
  • Features positive-angle nailing for engineered wood sizes to prevent wood splitting and to speed installation
  • Available with the A2 (acute) flange turned in to accommodate end-of-wall installation for solid sawn sizes only (SURC or SULC)

Material

  • 16 gauge

Finish

  • Galvanized. Some products available in ZMAX® coating or stainless steel; see Corrosion Information.

Installation

  • Installation Guide
  • Use all specified fasteners; see General Notes.
  • The joist end may be square cut or bevel cut.
  • Fill all round and obround nail holes with specified fasteners to achieve table loads. Where noted, triangle holes in the joist flange may be filled for additional uplift capacity.
  • For I-joists with flanges less than 1 5/16", web stiffeners are required for all double joist hangers when using hangers that are 14 gauge and lighter.
