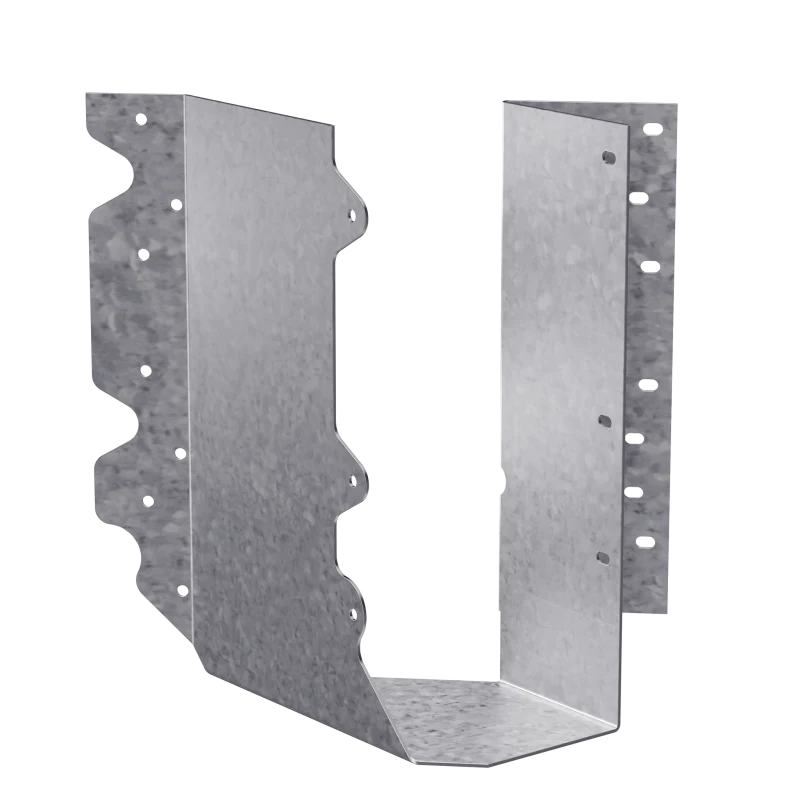

Simpson Strong-Tie SUR210-2 SUR Galvanized Joist Hanger for Double 2x10, Skewed Right
SKU: SUR210-2
Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
Product Description
Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. SUL/SUR hangers provide a 45° connection between a joist and header.
Available Sizes & Options
Product Details
Key Features
- Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist
- These hangers cannot be modified but will accommodate a 40° to 50° skewed joist
- Features positive-angle nailing for engineered wood sizes to prevent wood splitting and to speed installation
- Available with the A2 (acute) flange turned in to accommodate end-of-wall installation for solid sawn sizes only (SURC or SULC)
Material
- 16 gauge
Finish
- Galvanized. Some products available in ZMAX® coating or stainless steel; see Corrosion Information.
Installation
- Installation Guide
- Use all specified fasteners; see General Notes.
- The joist end may be square cut or bevel cut.
- Fill all round and obround nail holes with specified fasteners to achieve table loads. Where noted, triangle holes in the joist flange may be filled for additional uplift capacity.
- For I-joists with flanges less than 1 5/16", web stiffeners are required for all double joist hangers when using hangers that are 14 gauge and lighter.
Catalog Pages
