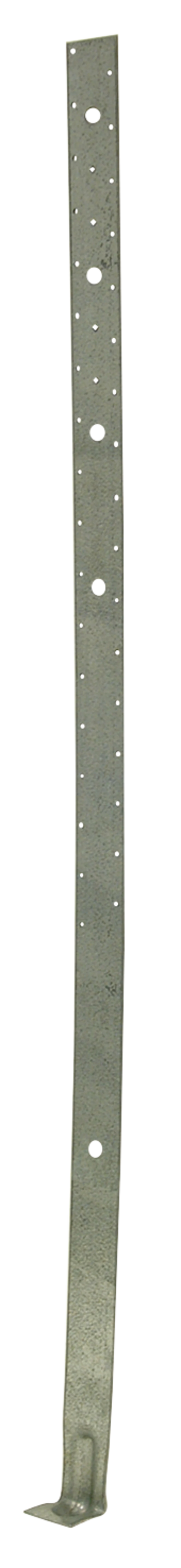

Simpson Strong-Tie PA51Z PA 51 in. 12-Gauge ZMAX® Galvanized Purlin Anchor

SKU: PA51Z
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

The PA is a solution for wood-to-concrete and concrete-block connections. To support code requirements, the PA is designed to connect roof purlins to a masonry exterior wall. This purlin anchor features a dual-embedment line that allows for installation in concrete or concrete block (GFCMU).

Available Sizes & Options

SKUProductStatus
PA51ZSimpson Strong-Tie PA51Z PA 51 in. 12-Gauge ZMAX® Galvanized Purlin Anchor CurrentAvailable
IUS1811188Simpson Strong-Tie 1 3/4 x 11-7/8 I Joist HangerAvailable
HUS18110Simpson Strong-Tie 1 3/4 x 9 1/2 Sloped Face Mount HangerAvailable
SUR18111Simpson Strong-Tie 1-3/4 x 11-7/8 Skew 45 R I-beam/lvlAvailable
IUS18195Simpson Strong-Tie 1-3/4 x 9-1/2 Side Mount SingAvailable
1212HLSimpson Strong-Tie 1212HL HL 12 in. x 12 in. 7-Gauge Galvanized Heavy L StrapAvailable
1212HLHDGSimpson Strong-Tie 1212HLHDG HL 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy L StrapAvailable
1212HLPCSimpson Strong-Tie 1212HLPC HLPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental L StrapAvailable
1212HTSimpson Strong-Tie 1212HT HT 12 in. x 12 in. 7-Gauge Galvanized Heavy T StrapAvailable
1212HTHDGSimpson Strong-Tie 1212HTHDG HT 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1212HTPCSimpson Strong-Tie 1212HTPC HTPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1212LSimpson Strong-Tie 1212L 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212L-RSimpson Strong-Tie 1212L-R 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212TSimpson Strong-Tie 1212T 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
1212T-RSimpson Strong-Tie 1212T-R 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
128TSimpson Strong-Tie 128T 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
128T-RSimpson Strong-Tie 128T-R 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
1616HTSimpson Strong-Tie 1616HT HT 16 in. x 16 in. 7-Gauge Galvanized Heavy T StrapAvailable
1616HTHDGSimpson Strong-Tie 1616HTHDG HT 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1616HTPCSimpson Strong-Tie 1616HTPC HTPC 16 in. x 16 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1616HTQSimpson Strong-Tie 1616HTQ HTQ 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable

Product Details

Key Features

  • Minimum embedment line indicators for both concrete and masonry installations
  • Nailing pattern optimized for narrow face of nominal 3x or double 2x wood member
  • Low design profile minimizes visibility

Material

  • 12 gauge

Finish

  • Galvanized or ZMAX® coating

Installation

  • Use all specified fasteners; some models have extra fastener holes. See General Notes.
  • Purlin anchor must hook around rebar.
  • Allowable loads are for a horizontal installation into the side of a concrete or masonry wall.
  • For vertical installation in the top of GFCMU, refer to engineering letter PA Models - Vertical Installation in the Top of GFCMU (L-C-PAGFCMUUP).
  • PA51/PA68 — for additional length, an MST strap can be attached using 1/2" bolts through existing holes.

Edge Distance — minimum concrete edge distance is 5". Minimum concrete-block left-to-right edge distance is 20".

Concrete Block Wall — the minimum wall specifications are:

A — one #4 vertical rebar, 32" long, 16" each side of anchor
B — two courses of grout-filled block above and below the anchor (no cold joints allowed)
C — a horizontal bond beam with two #4 rebars, 40" long, a maximum of two courses above or below the anchor
D — minimum masonry compressive strength, f'm = 1,500 psi
