Simpson Strong-Tie MTW45-8-R10 MTW™ Mass Timber Angled Washer (10-Qty)
Hangers

Simpson Strong-Tie MTW45-8-R10 MTW™ Mass Timber Angled Washer (10-Qty)

SKU: MTW45-8-R10
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

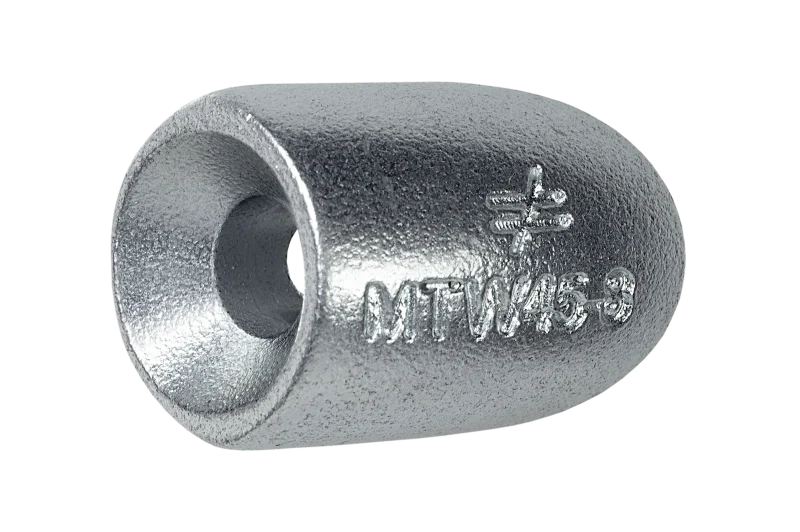

Angled screws greatly increase the strength and stiffness of mass timber connections. The Simpson Strong-Tie MTW45-8 is designed for use with a wide variety of 10 gauge–33 ksi connection plates and 8 mm-diameter Simpson Strong-Tie Strong-Drive® SDCF Timber-CF screws driven at a 45° angle.

Available Sizes & Options

SKUProductStatus
MTW45-8-R10Simpson Strong-Tie MTW45-8-R10 MTW™ Mass Timber Angled Washer (10-Qty) CurrentAvailable
IUS1811188Simpson Strong-Tie 1 3/4 x 11-7/8 I Joist HangerAvailable
HUS18110Simpson Strong-Tie 1 3/4 x 9 1/2 Sloped Face Mount HangerAvailable
SUR18111Simpson Strong-Tie 1-3/4 x 11-7/8 Skew 45 R I-beam/lvlAvailable
IUS18195Simpson Strong-Tie 1-3/4 x 9-1/2 Side Mount SingAvailable
1212HLSimpson Strong-Tie 1212HL HL 12 in. x 12 in. 7-Gauge Galvanized Heavy L StrapAvailable
1212HLHDGSimpson Strong-Tie 1212HLHDG HL 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy L StrapAvailable
1212HLPCSimpson Strong-Tie 1212HLPC HLPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental L StrapAvailable
1212HTSimpson Strong-Tie 1212HT HT 12 in. x 12 in. 7-Gauge Galvanized Heavy T StrapAvailable
1212HTHDGSimpson Strong-Tie 1212HTHDG HT 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1212HTPCSimpson Strong-Tie 1212HTPC HTPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1212LSimpson Strong-Tie 1212L 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212L-RSimpson Strong-Tie 1212L-R 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212TSimpson Strong-Tie 1212T 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
1212T-RSimpson Strong-Tie 1212T-R 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
128TSimpson Strong-Tie 128T 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
128T-RSimpson Strong-Tie 128T-R 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
1616HTSimpson Strong-Tie 1616HT HT 16 in. x 16 in. 7-Gauge Galvanized Heavy T StrapAvailable
1616HTHDGSimpson Strong-Tie 1616HTHDG HT 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1616HTPCSimpson Strong-Tie 1616HTPC HTPC 16 in. x 16 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1616HTQSimpson Strong-Tie 1616HTQ HTQ 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable

Product Details

Key Features

  • Recessed hole provides a clean finish with the SDCF countersunk head
  • Guides screw to an accurate 45°angle
  • High capacity reduces number of screws required in a connection
  • Material: ASTM A27, Grade 70–40
  • Finish: Zinc electroplated

Loads

  • Allowable loads for straps using the MTW45-8 are the responsibility of the designer. See L-MTW45SDCF for design information.

Installation

  • Use all specified MTW45-8 washers and Strong-Drive SDCF Timber-CF screws.
  • Allowable connector plate thickness is 10 gauge (0.134") minimum and 1/2" maximum, with minimum specified tensile properties of Fy = 33 ksi and Fu = 45 ksi.
  • Fabricate plates with obround holes as given in the installation images. If plates are galvanized after holes are punched, oversize holes to account for galvanized thickness.
  • Insert MTW45-8 into obround holes and drive Strong-Drive SDCF Timber-CF screws at a 45° angle in the direction specified by the designer. Countersunk screw heads shall be fully seated into MTW45-8 screw hole.
