Simpson Strong-Tie MMHC MMHC® Hinged Roof Connector for 2x4 and 2x6
Hangers

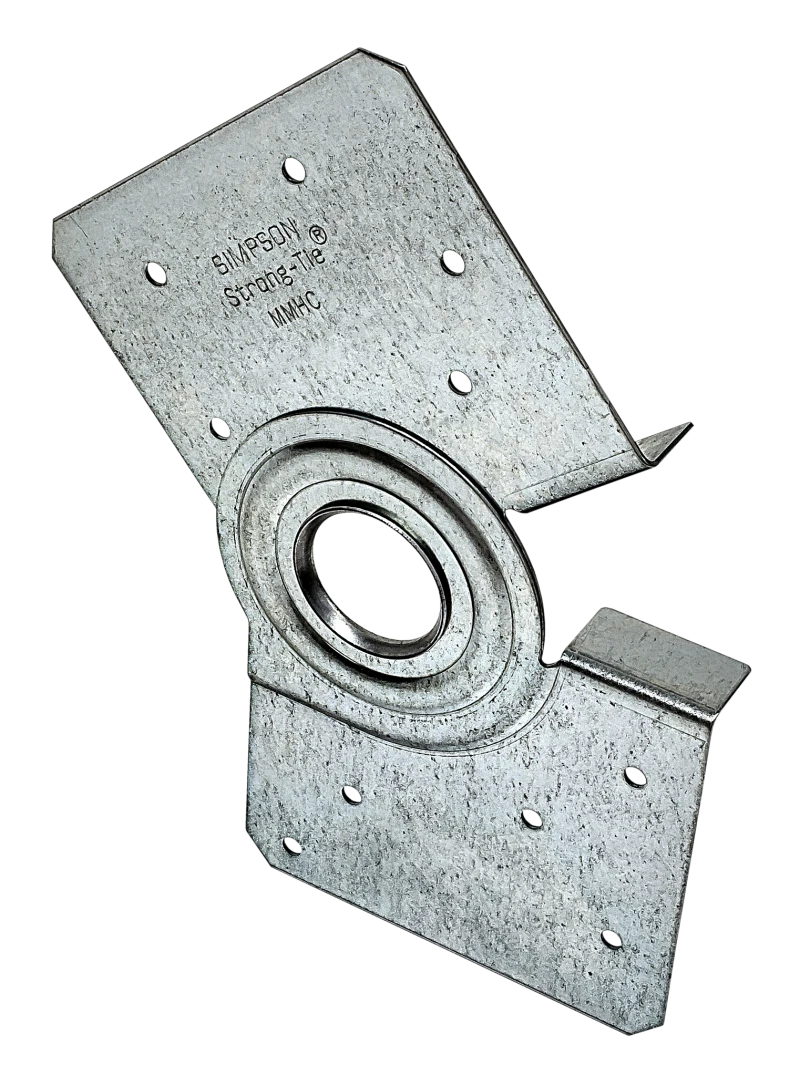

Simpson Strong-Tie MMHC MMHC® Hinged Roof Connector for 2x4 and 2x6

SKU: MMHC
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

The innovative Simpson Strong-Tie® MMHC® hinged roof connector makes it easy to build a stick-frame roof in the factory that can fold flat during shipping. This connector has been tested and load rated in multiple directions. It can be installed on one or both sides of the roof rafter assembly.

Available Sizes & Options

SKUProductStatus
MMHCSimpson Strong-Tie MMHC MMHC® Hinged Roof Connector for 2x4 and 2x6 CurrentAvailable
IUS1811188Simpson Strong-Tie 1 3/4 x 11-7/8 I Joist HangerAvailable
HUS18110Simpson Strong-Tie 1 3/4 x 9 1/2 Sloped Face Mount HangerAvailable
SUR18111Simpson Strong-Tie 1-3/4 x 11-7/8 Skew 45 R I-beam/lvlAvailable
IUS18195Simpson Strong-Tie 1-3/4 x 9-1/2 Side Mount SingAvailable
1212HLSimpson Strong-Tie 1212HL HL 12 in. x 12 in. 7-Gauge Galvanized Heavy L StrapAvailable
1212HLHDGSimpson Strong-Tie 1212HLHDG HL 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy L StrapAvailable
1212HLPCSimpson Strong-Tie 1212HLPC HLPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental L StrapAvailable
1212HTSimpson Strong-Tie 1212HT HT 12 in. x 12 in. 7-Gauge Galvanized Heavy T StrapAvailable
1212HTHDGSimpson Strong-Tie 1212HTHDG HT 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1212HTPCSimpson Strong-Tie 1212HTPC HTPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1212LSimpson Strong-Tie 1212L 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212L-RSimpson Strong-Tie 1212L-R 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212TSimpson Strong-Tie 1212T 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
1212T-RSimpson Strong-Tie 1212T-R 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
128TSimpson Strong-Tie 128T 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
128T-RSimpson Strong-Tie 128T-R 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
1616HTSimpson Strong-Tie 1616HT HT 16 in. x 16 in. 7-Gauge Galvanized Heavy T StrapAvailable
1616HTHDGSimpson Strong-Tie 1616HTHDG HT 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1616HTPCSimpson Strong-Tie 1616HTPC HTPC 16 in. x 16 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1616HTQSimpson Strong-Tie 1616HTQ HTQ 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable

Product Details

Key Features

  • Innovative hinge rotates easily from open position to folded
  • The offset nail pattern allows for installation on both sides
  • Connector tabs make it intuitive to position before nailing
  • Nails in place for easy installation; no bolts required
  • No measuring or predrilling saves installers time

Material

  • 18 gauge

Finish

  • Galvanized

Installation

  1. Arrange members in installed position
  2. Open connector to same position
  3. Place on wood members using tabs as a guide
  4. Install with specified nails
  5. Adjust members for shipping purposes, then reopen at jobsite
  • MMHC does not replace the need for solid blocking
  • MMHC - Minimum 2x6 roof rafter and ceiling joist; minimum 2x4 kneewall stud
  • MMHC23 - Minimum 2x3 kneewall stud

Related Links

Patent Information

  • US Patent 11,131,088

Buy Simpson Strong-Tie MMHC MMHC® Hinged Roof Connector for 2x4 and 2x6 in Central New Jersey
