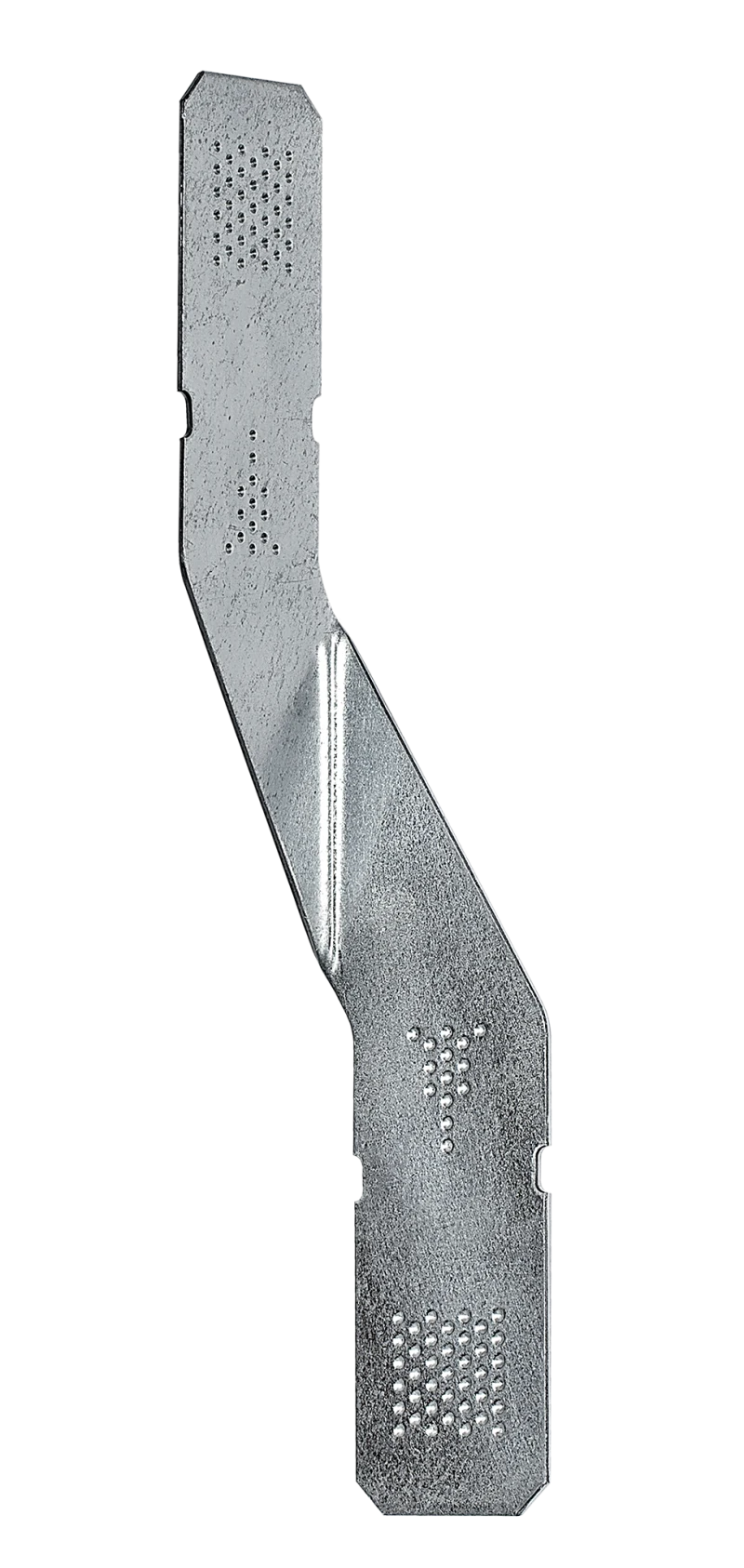

Simpson Strong-Tie MMH8 MMH 8 in. 18-Gauge Hurricane Tie
Hangers

Simpson Strong-Tie MMH8 MMH 8 in. 18-Gauge Hurricane Tie

SKU: MMH8
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

Simpson Strong-Tie connectors make projects easier to build while making them stronger and safer. They are engineered and tested to perform and are manufactured to the highest quality standards. The versatile MMH line of connectors provides uplift resistance for roof trusses and rafters for factory-built structures.

Available Sizes & Options

SKUProductStatus
MMH8Simpson Strong-Tie MMH8 MMH 8 in. 18-Gauge Hurricane Tie CurrentAvailable
IUS1811188Simpson Strong-Tie 1 3/4 x 11-7/8 I Joist HangerAvailable
HUS18110Simpson Strong-Tie 1 3/4 x 9 1/2 Sloped Face Mount HangerAvailable
SUR18111Simpson Strong-Tie 1-3/4 x 11-7/8 Skew 45 R I-beam/lvlAvailable
IUS18195Simpson Strong-Tie 1-3/4 x 9-1/2 Side Mount SingAvailable
1212HLSimpson Strong-Tie 1212HL HL 12 in. x 12 in. 7-Gauge Galvanized Heavy L StrapAvailable
1212HLHDGSimpson Strong-Tie 1212HLHDG HL 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy L StrapAvailable
1212HLPCSimpson Strong-Tie 1212HLPC HLPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental L StrapAvailable
1212HTSimpson Strong-Tie 1212HT HT 12 in. x 12 in. 7-Gauge Galvanized Heavy T StrapAvailable
1212HTHDGSimpson Strong-Tie 1212HTHDG HT 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1212HTPCSimpson Strong-Tie 1212HTPC HTPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1212LSimpson Strong-Tie 1212L 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212L-RSimpson Strong-Tie 1212L-R 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212TSimpson Strong-Tie 1212T 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
1212T-RSimpson Strong-Tie 1212T-R 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
128TSimpson Strong-Tie 128T 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
128T-RSimpson Strong-Tie 128T-R 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
1616HTSimpson Strong-Tie 1616HT HT 16 in. x 16 in. 7-Gauge Galvanized Heavy T StrapAvailable
1616HTHDGSimpson Strong-Tie 1616HTHDG HT 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1616HTPCSimpson Strong-Tie 1616HTPC HTPC 16 in. x 16 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1616HTQSimpson Strong-Tie 1616HTQ HTQ 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable

Product Details

Material

  • 18 gauge

Finish

  • Galvanized

Installation

  • Use all specified fasteners; see General Notes.
  • Hurricane ties do not replace solid blocking.
  • When installing ties on plated trusses (on the side opposite the truss plate) do not fasten through the truss plate from behind. This can force the truss plate off of the truss and compromise truss performance.
  • MMH8 nails must be installed with a power nailer. Full face and eye protection is required. Extreme caution is required when driving nails through the MMH8. To prevent ricochet, drive nails straight through the nailing grid. Follow all safety instructions for the nail tool. Adjust the nail drive by setting the depth-of-drive on the nailer tool so that nail heads are driven into contact with the hanger. Do not over-drive nails, which are indicated by the tops of the nail heads driven below the top surface of the metal connector.
  • MMH8 nails must have a minimum 1/2" center-to-center spacing in the same nailing grid and not split the wood. The square nailing grid must contain a minimum of three nails, and a maximum of five nails. In order for the 1/2" spacing requirement to be met with five nails in the square nailing grid, nails shall be positioned at the four corners of the grid, with the fifth nail positioned in the center of the grid.
