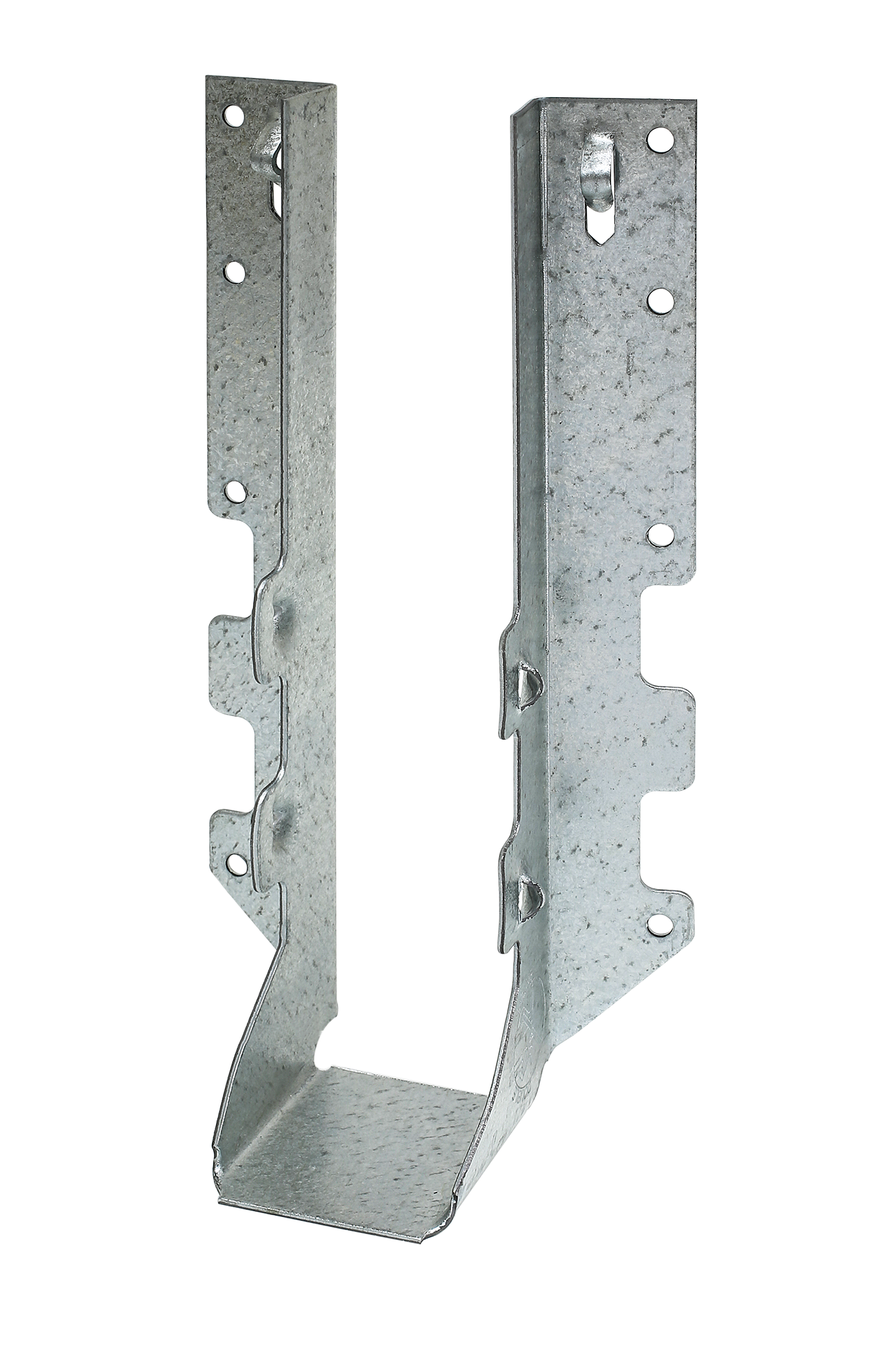

Simpson Strong-Tie LUS210 LUS Galvanized Face-Mount Joist Hanger for 2x10

Name: Simpson Strong-Tie LUS210 LUS Galvanized Face-Mount Joist Hanger for 2x10
Brand: Simpson Strong-Tie
SKU: LUS210
Availability: InStock

SKU: LUS210

Available at Our Yard

Madison Township Lumber • Matawan, NJ

(732) 566-5555

Product Description

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The LUS is an easy-to-install, economical hanger designed for common lumber sizes. This widely used hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation and the use of all common nails for the same connection.

Available Sizes & Options

SKU	Product	Status
LUS210	Simpson Strong-Tie LUS210 LUS Galvanized Face-Mount Joist Hanger for 2x10 Current	Available
LUS410	Simpson Strong-Tie LUS410 LUS Galvanized Face-Mount Joist Hanger for 4x10	Available

Product Details

Key Features

Cannot be modified
Works for a wide range of applications
Features speed prongs used to temporarily position and secure the connector for easier and faster installation
LUS-series hangers are tested, load rated and code compliant

Material

See tables

Finish

Galvanized. Some products available in stainless steel or ZMAX^® coating. See Corrosion Information.

Installation

Installation Guide
Use all specified fasteners; see General Notes.
Joist nails must be driven at an angle through the joist or truss into the header to achieve the table loads.
Not designed for welded or nailer applications.
With 3x carrying members: when 0.162" x 3 1/2" nails are specified, use 0.162" x 2 1/2" nails into the header and 0.162" x 3 1/2" nails into the joist with no load reduction. When 0.148" x 3" nails are specified, use 0.148" x 2 1/2" nails into the header and 0.148" x 3" nails into the joist with no load reduction.
With 2x carrying members: when 0.162" x 3 1/2" nails are specified, use 0.148" x 1 1/2" nails into the header and 0.148" x 3" nails into the joist and reduce the load to 0.64 of the table values. When 0.148" x 3" nails are specified, use 0.148" x 1 1/2" nails into the header and 0.148" x 3" nails into the joist and reduce the load to 0.77 of the table values. See Fastener Design Information.
