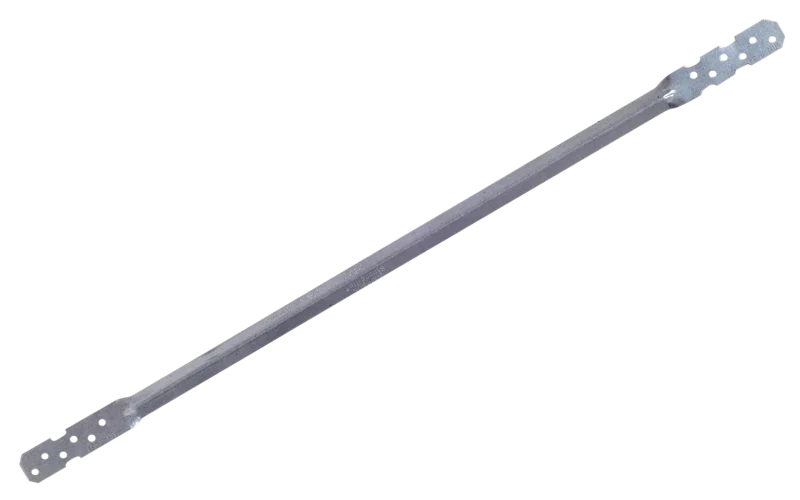

Simpson Strong-Tie LTB20 LTB 19-1/2 in. 22-Gauge Galvanized Tension Bridging
Hangers

Simpson Strong-Tie LTB20 LTB 19-1/2 in. 22-Gauge Galvanized Tension Bridging

SKU: LTB20
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

The Simpson Strong-Tie® LTB provides bracing between floor joists as a critical contribution to the structural strength of a floor. Installed in pairs, this light tension-type bridging keeps joists in place and prevents them from rotating while distributing loads over more than one joist. The LTB features a staggered nail pattern to accommodate 2x8 and 2x10 joists and is designed for maximum nailing flexibility, with the option to use as few as two nail holes on each end, and as many as six.

Available Sizes & Options

SKUProductStatus
LTB20Simpson Strong-Tie LTB20 LTB 19-1/2 in. 22-Gauge Galvanized Tension Bridging CurrentAvailable
IUS1811188Simpson Strong-Tie 1 3/4 x 11-7/8 I Joist HangerAvailable
HUS18110Simpson Strong-Tie 1 3/4 x 9 1/2 Sloped Face Mount HangerAvailable
SUR18111Simpson Strong-Tie 1-3/4 x 11-7/8 Skew 45 R I-beam/lvlAvailable
IUS18195Simpson Strong-Tie 1-3/4 x 9-1/2 Side Mount SingAvailable
1212HLSimpson Strong-Tie 1212HL HL 12 in. x 12 in. 7-Gauge Galvanized Heavy L StrapAvailable
1212HLHDGSimpson Strong-Tie 1212HLHDG HL 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy L StrapAvailable
1212HLPCSimpson Strong-Tie 1212HLPC HLPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental L StrapAvailable
1212HTSimpson Strong-Tie 1212HT HT 12 in. x 12 in. 7-Gauge Galvanized Heavy T StrapAvailable
1212HTHDGSimpson Strong-Tie 1212HTHDG HT 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1212HTPCSimpson Strong-Tie 1212HTPC HTPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1212LSimpson Strong-Tie 1212L 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212L-RSimpson Strong-Tie 1212L-R 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212TSimpson Strong-Tie 1212T 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
1212T-RSimpson Strong-Tie 1212T-R 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
128TSimpson Strong-Tie 128T 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
128T-RSimpson Strong-Tie 128T-R 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
1616HTSimpson Strong-Tie 1616HT HT 16 in. x 16 in. 7-Gauge Galvanized Heavy T StrapAvailable
1616HTHDGSimpson Strong-Tie 1616HTHDG HT 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1616HTPCSimpson Strong-Tie 1616HTPC HTPC 16 in. x 16 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1616HTQSimpson Strong-Tie 1616HTQ HTQ 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable

Product Details

Key Features

  • Galvanized for corrosion resistance
  • Keeps floor system continuity and prevents joist rotation
  • Installation flexibility, with six nail holes on each end and a staggered nail pattern

Material

  • 22 ga. (27 mil)

Finish

  • Galvanized (G90)

Installation

  • Support floor joists with a depth-to-thickness ratio of six or more with bridging at intervals not exceeding 8'. If span is greater than 8', install on 2x8 or larger joists. If span is greater than 16', use more than one pair.
  • Tension bridging works only in tension, so must be used in cross pairs.
  • Install bridging tightly; loose installation may allow floor movement.
  • Requires two 0.113" x 2" nails per end.

Related Links

Catalog Pages

Buy Simpson Strong-Tie LTB20 LTB 19-1/2 in. 22-Gauge Galvanized Tension Bridging in Central New Jersey
