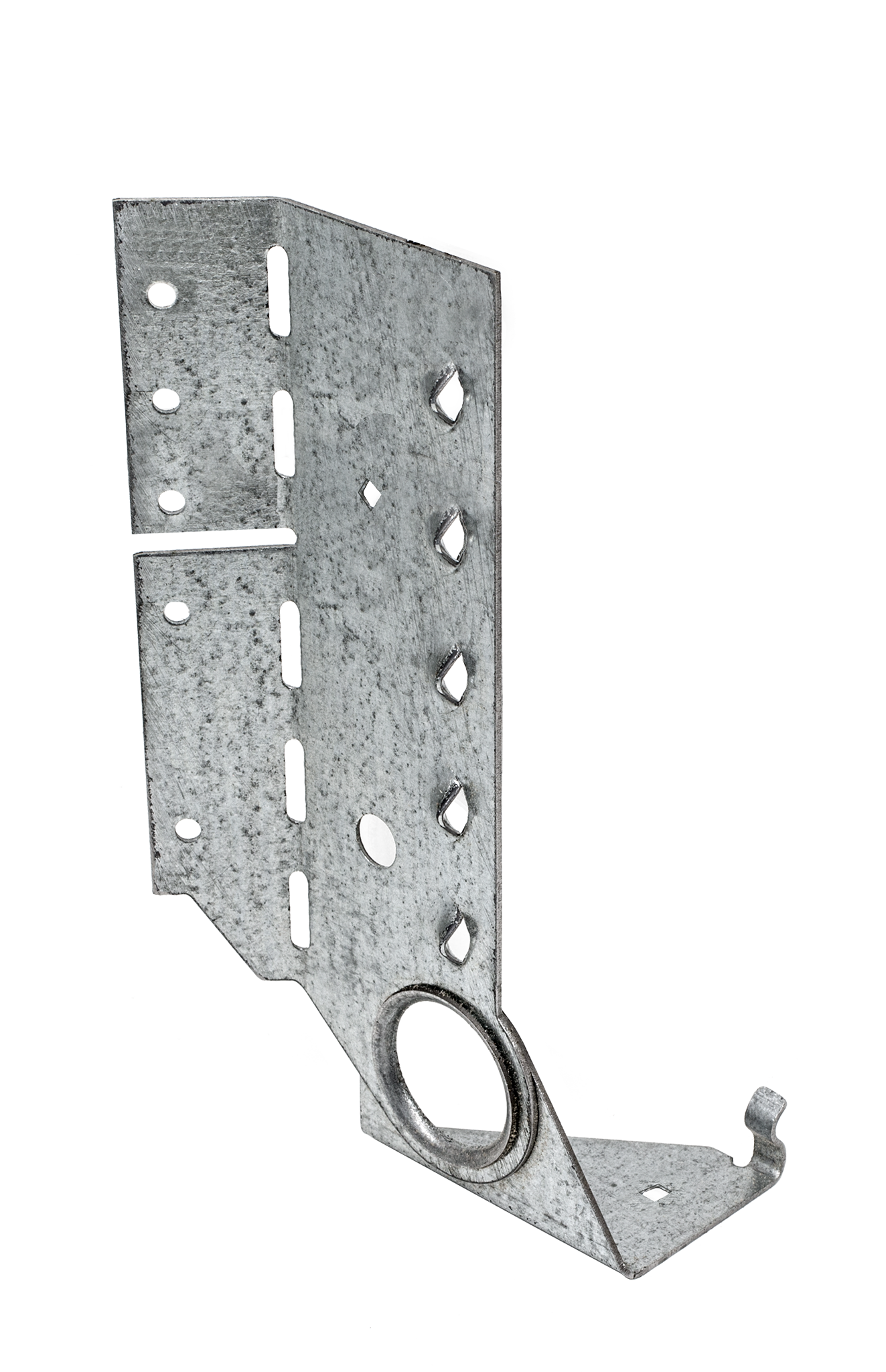

Simpson Strong-Tie LSSJ28LZ LSSJ® ZMAX® Face-Mount Adjustable Light Slopeable/Skewable Jack Hanger for 2x8, Left

Name: Simpson Strong-Tie LSSJ28LZ LSSJ® ZMAX® Face-Mount Adjustable Light Slopeable/Skewable Jack Hanger for 2x8, Left
Brand: Simpson Strong-Tie
SKU: LSSJ28LZ
Availability: InStock

SKU: LSSJ28LZ

Available at Our Yard

Madison Township Lumber • Matawan, NJ

(732) 566-5555

Product Description

The innovative LSSJ® is ideal for connecting jack rafters to hip members. Featuring a one-sided connection point for ease of installation and a versatile, hinged seat, the LSSJ is easily field adjustable to all typical rafter slopes ranging from 0:12 to 12:12. The LSSJ’s header flange allows for easy skew adjustment, from 0° to 45°. It ships pre-bent at 45° so is ready to place for most typical applications.

Available Sizes & Options

SKU	Product	Status
LSSJ28LZ	Simpson Strong-Tie LSSJ28LZ LSSJ® ZMAX® Face-Mount Adjustable Light Slopeable/Skewable Jack Hanger for 2x8, Left Current	Available
IUS1811188	Simpson Strong-Tie 1 3/4 x 11-7/8 I Joist Hanger	Available
HUS18110	Simpson Strong-Tie 1 3/4 x 9 1/2 Sloped Face Mount Hanger	Available
SUR18111	Simpson Strong-Tie 1-3/4 x 11-7/8 Skew 45 R I-beam/lvl	Available
IUS18195	Simpson Strong-Tie 1-3/4 x 9-1/2 Side Mount Sing	Available
1212HL	Simpson Strong-Tie 1212HL HL 12 in. x 12 in. 7-Gauge Galvanized Heavy L Strap	Available
1212HLHDG	Simpson Strong-Tie 1212HLHDG HL 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy L Strap	Available
1212HLPC	Simpson Strong-Tie 1212HLPC HLPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental L Strap	Available
1212HT	Simpson Strong-Tie 1212HT HT 12 in. x 12 in. 7-Gauge Galvanized Heavy T Strap	Available
1212HTHDG	Simpson Strong-Tie 1212HTHDG HT 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy T Strap	Available
1212HTPC	Simpson Strong-Tie 1212HTPC HTPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental T Strap	Available
1212L	Simpson Strong-Tie 1212L 12 in. x 12 in. 14-Gauge Galvanized L Strap	Available
1212L-R	Simpson Strong-Tie 1212L-R 12 in. x 12 in. 14-Gauge Galvanized L Strap	Available
1212T	Simpson Strong-Tie 1212T 12 in. x 12 in. 14-Gauge Galvanized T Strap	Available
1212T-R	Simpson Strong-Tie 1212T-R 12 in. x 12 in. 14-Gauge Galvanized T Strap	Available
128T	Simpson Strong-Tie 128T 12 in. x 8 in. 14-Gauge Galvanized T Strap	Available
128T-R	Simpson Strong-Tie 128T-R 12 in. x 8 in. 14-Gauge Galvanized T Strap	Available
1616HT	Simpson Strong-Tie 1616HT HT 16 in. x 16 in. 7-Gauge Galvanized Heavy T Strap	Available
1616HTHDG	Simpson Strong-Tie 1616HTHDG HT 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T Strap	Available
1616HTPC	Simpson Strong-Tie 1616HTPC HTPC 16 in. x 16 in. 7-Gauge Black Powder-Coated Ornamental T Strap	Available
1616HTQ	Simpson Strong-Tie 1616HTQ HTQ 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T Strap	Available

Product Details

Key Features

Hanger installs from one side with all fastener holes easily accessible
Can be installed as a retrofit
Seat grip makes setting the hanger quick and easy
Accommodates roof pitches from 0:12 to 12:12
Swivel seat adjusts easily and provides more support to joist, allowing for a higher load than fasteners alone

Material

18 gauge

Finish

ZMAX^® coating

Installation

Installation Guide
Use all specified fasteners; see General Notes
For LSSJ26 an extra nail in the seat at load durations (115) and (125) adds 75 lb. to the 0.148" x 1 1/2" nails table downloads
Joist end needs to be bevel cut
Table and illustration shows left and right skews LSSJR/L (LSSJR = skewed right; LSSJL = skewed left)
