Hangers

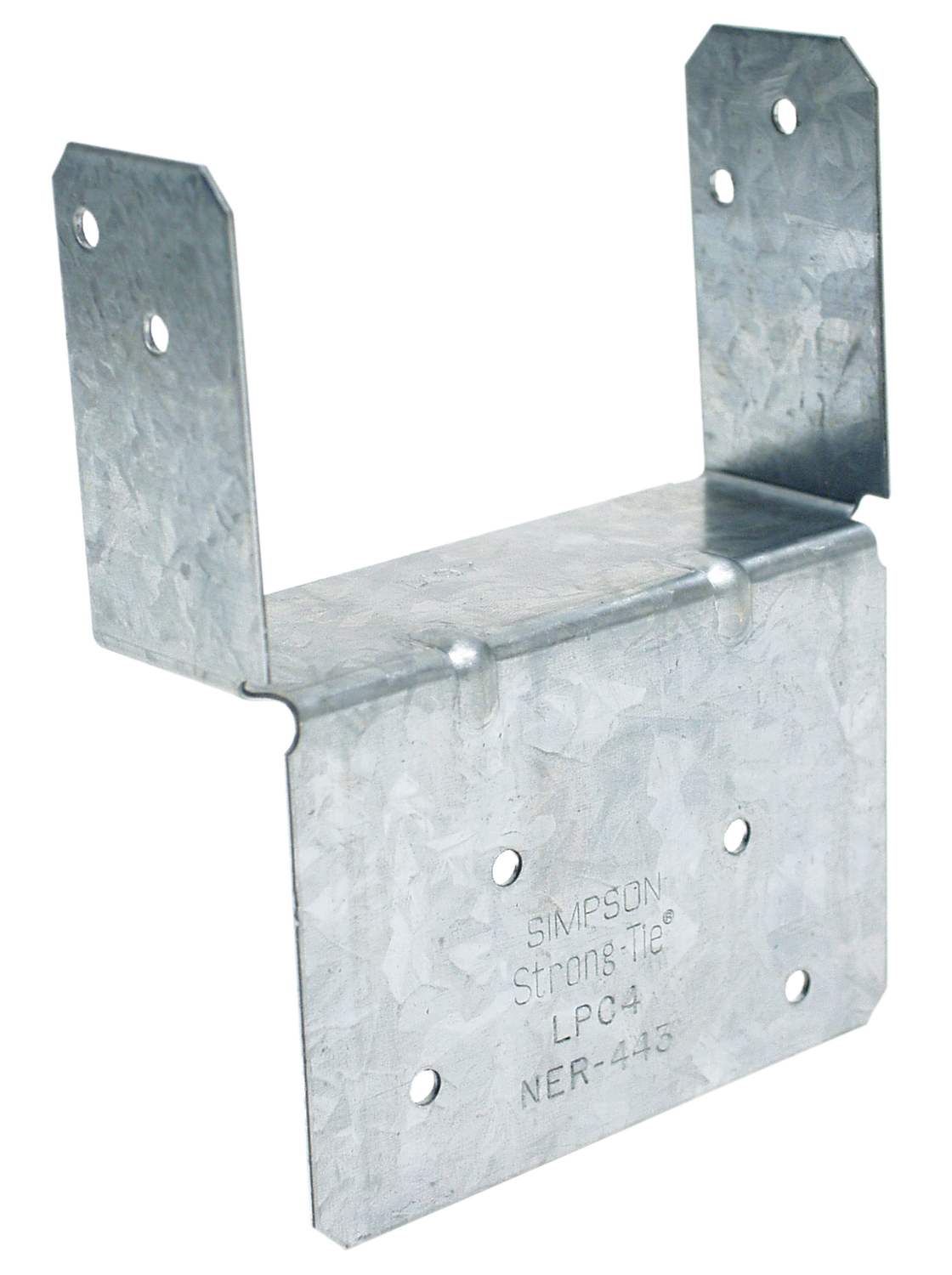

Simpson Strong-Tie LPC4Z LPCZ™ ZMAX® Galvanized Adjustable Post Cap for 4x

Name: Simpson Strong-Tie LPC4Z LPCZ™ ZMAX® Galvanized Adjustable Post Cap for 4x
Brand: Simpson Strong-Tie
SKU: LPC4Z
Availability: InStock

SKU: LPC4Z

Available at Our Yard

Madison Township Lumber • Matawan, NJ

(732) 566-5555

Product Description

Post caps connect tops of posts to members for a secure connection and are ideal for new or retrofit applications where structural support is needed. Post caps are available in a variety of one-piece caps for new construction and two-piece options for retrofit of existing connections. The LPCZ™ provides a connection between a 4x or 6x beam and post. This versatile connector is suitable for a variety of connections with 4x or 6x lumber.

Available Sizes & Options

SKU	Product	Status
LPC4Z	Simpson Strong-Tie LPC4Z LPCZ™ ZMAX® Galvanized Adjustable Post Cap for 4x Current	Available
IUS1811188	Simpson Strong-Tie 1 3/4 x 11-7/8 I Joist Hanger	Available
HUS18110	Simpson Strong-Tie 1 3/4 x 9 1/2 Sloped Face Mount Hanger	Available
SUR18111	Simpson Strong-Tie 1-3/4 x 11-7/8 Skew 45 R I-beam/lvl	Available
IUS18195	Simpson Strong-Tie 1-3/4 x 9-1/2 Side Mount Sing	Available
1212HL	Simpson Strong-Tie 1212HL HL 12 in. x 12 in. 7-Gauge Galvanized Heavy L Strap	Available
1212HLHDG	Simpson Strong-Tie 1212HLHDG HL 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy L Strap	Available
1212HLPC	Simpson Strong-Tie 1212HLPC HLPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental L Strap	Available
1212HT	Simpson Strong-Tie 1212HT HT 12 in. x 12 in. 7-Gauge Galvanized Heavy T Strap	Available
1212HTHDG	Simpson Strong-Tie 1212HTHDG HT 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy T Strap	Available
1212HTPC	Simpson Strong-Tie 1212HTPC HTPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental T Strap	Available
1212L	Simpson Strong-Tie 1212L 12 in. x 12 in. 14-Gauge Galvanized L Strap	Available
1212L-R	Simpson Strong-Tie 1212L-R 12 in. x 12 in. 14-Gauge Galvanized L Strap	Available
1212T	Simpson Strong-Tie 1212T 12 in. x 12 in. 14-Gauge Galvanized T Strap	Available
1212T-R	Simpson Strong-Tie 1212T-R 12 in. x 12 in. 14-Gauge Galvanized T Strap	Available
128T	Simpson Strong-Tie 128T 12 in. x 8 in. 14-Gauge Galvanized T Strap	Available
128T-R	Simpson Strong-Tie 128T-R 12 in. x 8 in. 14-Gauge Galvanized T Strap	Available
1616HT	Simpson Strong-Tie 1616HT HT 16 in. x 16 in. 7-Gauge Galvanized Heavy T Strap	Available
1616HTHDG	Simpson Strong-Tie 1616HTHDG HT 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T Strap	Available
1616HTPC	Simpson Strong-Tie 1616HTPC HTPC 16 in. x 16 in. 7-Gauge Black Powder-Coated Ornamental T Strap	Available
1616HTQ	Simpson Strong-Tie 1616HTQ HTQ 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T Strap	Available

Product Details

Key Features

Always install in pairs; universal design eliminates need for rights and lefts
Stronger than angled nailing or screw fastening; eliminates nailing into end grain
Can be installed after beams have been put in place

Material

LPC4Z — 18 gauge; LPC6Z — 16 gauge

Finish

ZMAX coating

Installation

Use all specified fasteners; see General Notes
Install all models in pairs
2 1/2" beams may be used if 0.148" x 1 1/2" nails are substituted for 0.148" x 3" nails
