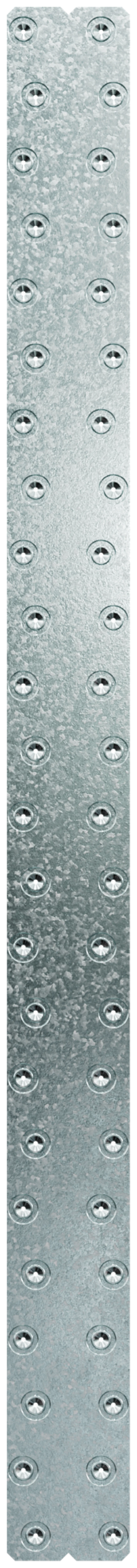

Simpson Strong-Tie LDSS48 LDSS® 3-3/4 in. x 47-1/2 in. 18-Gauge Galvanized Diaphragm Spline Strap

SKU: LDSS48
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

The LDSS® light diaphragm spline strap is designed to be placed directly on top of CLT (cross-laminated timber) and other mass timber panels to connect them together. Unlike plywood splines, the LDSS does not require routing. As part of the Simpson Strong-Tie® complete LDSS spline solution, the steel strap installs easily and safely using our PRO300SG2 Quik Drive® tool and collated Strong-Drive® WSV Subfloor screws. The LDSS features an innovative embossed hole design that helps guide the installation tool and increase fastener capacity.

Available Sizes & Options

SKUProductStatus
LDSS48Simpson Strong-Tie LDSS48 LDSS® 3-3/4 in. x 47-1/2 in. 18-Gauge Galvanized Diaphragm Spline Strap CurrentAvailable
IUS1811188Simpson Strong-Tie 1 3/4 x 11-7/8 I Joist HangerAvailable
HUS18110Simpson Strong-Tie 1 3/4 x 9 1/2 Sloped Face Mount HangerAvailable
SUR18111Simpson Strong-Tie 1-3/4 x 11-7/8 Skew 45 R I-beam/lvlAvailable
IUS18195Simpson Strong-Tie 1-3/4 x 9-1/2 Side Mount SingAvailable
1212HLSimpson Strong-Tie 1212HL HL 12 in. x 12 in. 7-Gauge Galvanized Heavy L StrapAvailable
1212HLHDGSimpson Strong-Tie 1212HLHDG HL 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy L StrapAvailable
1212HLPCSimpson Strong-Tie 1212HLPC HLPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental L StrapAvailable
1212HTSimpson Strong-Tie 1212HT HT 12 in. x 12 in. 7-Gauge Galvanized Heavy T StrapAvailable
1212HTHDGSimpson Strong-Tie 1212HTHDG HT 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1212HTPCSimpson Strong-Tie 1212HTPC HTPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1212LSimpson Strong-Tie 1212L 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212L-RSimpson Strong-Tie 1212L-R 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212TSimpson Strong-Tie 1212T 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
1212T-RSimpson Strong-Tie 1212T-R 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
128TSimpson Strong-Tie 128T 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
128T-RSimpson Strong-Tie 128T-R 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
1616HTSimpson Strong-Tie 1616HT HT 16 in. x 16 in. 7-Gauge Galvanized Heavy T StrapAvailable
1616HTHDGSimpson Strong-Tie 1616HTHDG HT 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1616HTPCSimpson Strong-Tie 1616HTPC HTPC 16 in. x 16 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1616HTQSimpson Strong-Tie 1616HTQ HTQ 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable

Product Details

Key Features

  • No routing required; the strap can be placed directly on top of mass timber panels, reducing manufacturing time and cost
  • Less susceptible to moisture damage than plywood splines, reducing need for expensive repairs
  • Embossed hole helps guide the installation tool into the hold and increases capacity per fastener
  • Tested for in-plane shear values
  • Can be used as part of a complete spline solution throughout a project for faster installation and to save on the total cost of spline connections

Material

  • 18 gauge

Finish

  • Galvanized

Options

  • The LDSS has also been tested with 0.148" x 2 1/2" nails for specifiers or contractors who prefer a nailed connection. The embossed hole allows for the use of a power framing nailer using concentric, full round-head nails.

Installation

  1. Place the strap on the surface of the panels with the centerline notches aligned with joint between adjacent panels.
  2. From a standing position, hold tool perpendicular to the face of the strap and place the noseclip over the embossed feature. Drive the screw. Repeat.
  3. Use all specified fasteners.
