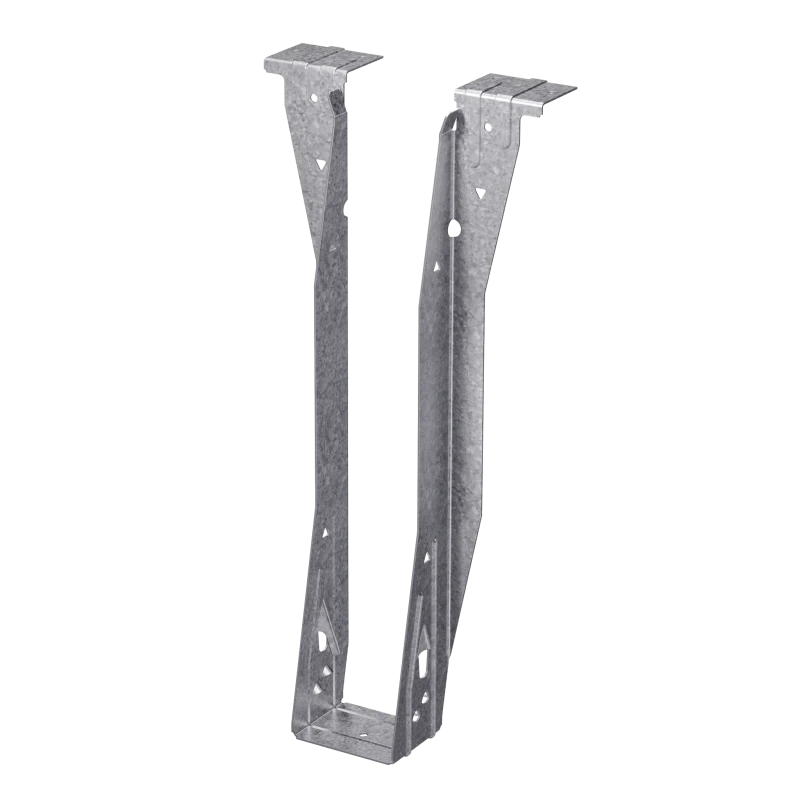

Simpson Strong-Tie ITS2.37/14 ITS Galvanized Top-Flange Joist Hanger for 2-5/16 in. x 14 in. Engineered Wood
SKU: ITS2.37/14
Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
Product Description
Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The innovative ITS sets a new standard for engineered wood top-flange hangers. The ITS installs faster and uses fewer nails than any other EWP top-flange hanger. The new Strong-Grip™ seat and Funnel Flange™ features allow standard joist installation without requiring joist nails resulting in the lowest installed cost.
Available Sizes & Options
Product Details
Key Features
- Cost-effective hanger that installs quickly with a small number of nails
- Features additional triangle holes for additional uplift
- Features optional fastening with PAT for steel applications/header
Material
- 18 gauge
Finish
- Galvanized
Options
- Because these hangers are fully die-formed, they cannot be modified. However, these models will normally accommodate a skew of up to 5°.
Installation
- Installation Guide
- Use all specified fasteners. Verify that the header can take the required fasteners specified in the table.
- See product-specific installation drawings.
- No joist nailing required for standard I-joist installation without web stiffeners. When hanger is used to support I-joists with web stiffeners or rectangular SCL member (2) 0.148" x 1 1/2" nails must be installed into optional triangle joist nail holes for standard installation values.
- Optional triangle nail holes may be used for additional load. See allowable load tables.
- For sloped joists up to 1/4:12, there’s no reduction; from 1/4:12 up to 1/2:12, tests show a 10% reduction in ultimate hanger strength. Local crushing of the bottom flange or excessive deflection may be limiting; check with joist manufacturer for specific limitations on bearing of this type.
Allowable Loads
- Locations are provided for optional nails if additional uplift is needed. Optional uplift nailing requires the addition of properly-secured web stiffeners. See the load tables for minimum required fasteners and allowable uplift loads.
- For attaching to multi-ply headers, refer to technical bulletin Top-Flange Hanger Reductions for Multiple-Ply Headers (T-C-MPLYHEADR).
Patent Information
- US Patent 8,250,827
