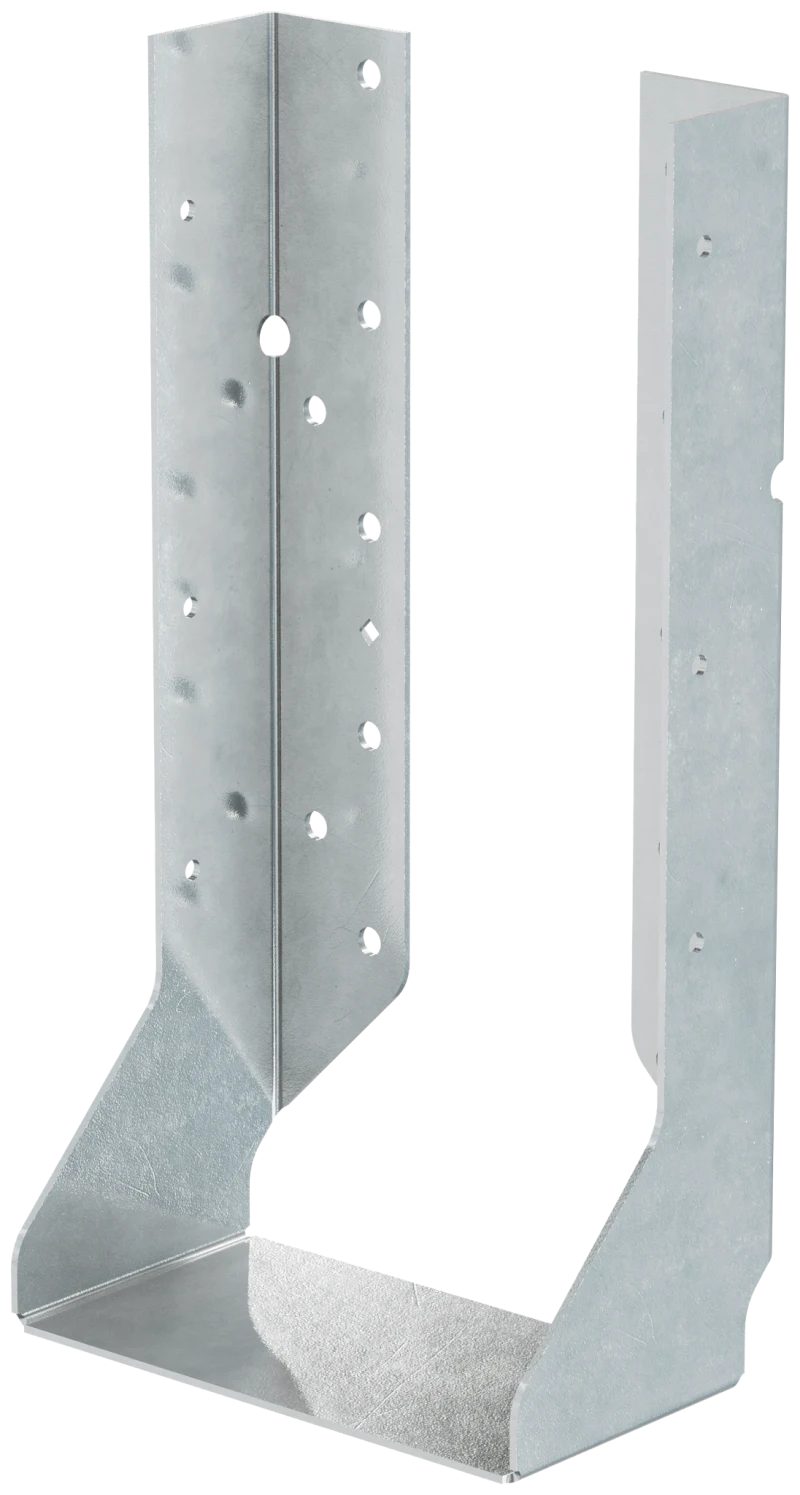

Simpson Strong-Tie HUCQ612SS-SDS HUCQ Stainless-Steel Heavy Face-Mount Concealed-Flange Joist Hanger for 6x12 w/ Screws
Hangers

Simpson Strong-Tie HUCQ612SS-SDS HUCQ Stainless-Steel Heavy Face-Mount Concealed-Flange Joist Hanger for 6x12 w/ Screws

SKU: HUCQ612SS-SDS
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

The HUCQ is designed for structures requiring additional strength and safety factors. These face-mount joist hangers have concealed header flanges and can be installed close to the end of the supporting beam. These heavy-duty hangers install with Simpson Strong-Tie® Strong-Drive® SDS Heavy-Duty Connector screws for high capacity with no predrilling for ease of installation.

Available Sizes & Options

SKUProductStatus
HUCQ612SS-SDSSimpson Strong-Tie HUCQ612SS-SDS HUCQ Stainless-Steel Heavy Face-Mount Concealed-Flange Joist Hanger for 6x12 w/ Screws CurrentAvailable
IUS1811188Simpson Strong-Tie 1 3/4 x 11-7/8 I Joist HangerAvailable
HUS18110Simpson Strong-Tie 1 3/4 x 9 1/2 Sloped Face Mount HangerAvailable
SUR18111Simpson Strong-Tie 1-3/4 x 11-7/8 Skew 45 R I-beam/lvlAvailable
IUS18195Simpson Strong-Tie 1-3/4 x 9-1/2 Side Mount SingAvailable
1212HLSimpson Strong-Tie 1212HL HL 12 in. x 12 in. 7-Gauge Galvanized Heavy L StrapAvailable
1212HLHDGSimpson Strong-Tie 1212HLHDG HL 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy L StrapAvailable
1212HLPCSimpson Strong-Tie 1212HLPC HLPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental L StrapAvailable
1212HTSimpson Strong-Tie 1212HT HT 12 in. x 12 in. 7-Gauge Galvanized Heavy T StrapAvailable
1212HTHDGSimpson Strong-Tie 1212HTHDG HT 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1212HTPCSimpson Strong-Tie 1212HTPC HTPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1212LSimpson Strong-Tie 1212L 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212L-RSimpson Strong-Tie 1212L-R 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212TSimpson Strong-Tie 1212T 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
1212T-RSimpson Strong-Tie 1212T-R 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
128TSimpson Strong-Tie 128T 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
128T-RSimpson Strong-Tie 128T-R 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
1616HTSimpson Strong-Tie 1616HT HT 16 in. x 16 in. 7-Gauge Galvanized Heavy T StrapAvailable
1616HTHDGSimpson Strong-Tie 1616HTHDG HT 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1616HTPCSimpson Strong-Tie 1616HTPC HTPC 16 in. x 16 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1616HTQSimpson Strong-Tie 1616HTQ HTQ 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable

Product Details

Key Features

  • Concealed flanges provide cleaner lines for exposed conditions
  • HUCQ-series hangers are tested, load rated and code compliant
  • Strong-Drive SDS Heavy-Duty Connector screws are included
  • Fire-resistant F (flame) and T (temperature) rated in Intertek Design No. SST/WPCF 120-01.

Material

  • 14 gauge

Finish

  • Galvanized. Most models available in stainless steel or ZMAX® coating.

Options

  • These hangers cannot be modified

Installation

  • Use all specified fasteners; see General Notes.
  • Install 1/4" x 2 1/2" Strong-Drive SDS Heavy-Duty Connector screws, which are provided, in all round holes. (Lag screws will not achieve the same load.)
  • HUCQ hanger can be attached to a steel support. Refer to technical bulletin TEB-C-HUHUCQ, HU/HUC/HUCQ Wood Joist to Supporting Structural Steel Member.
  • For installing HUCQ over drywall, reference engineering letter L-C-FACEMNTFW, Face-Mount Hangers over Two Layers of 5/8" Gypsum Board.
