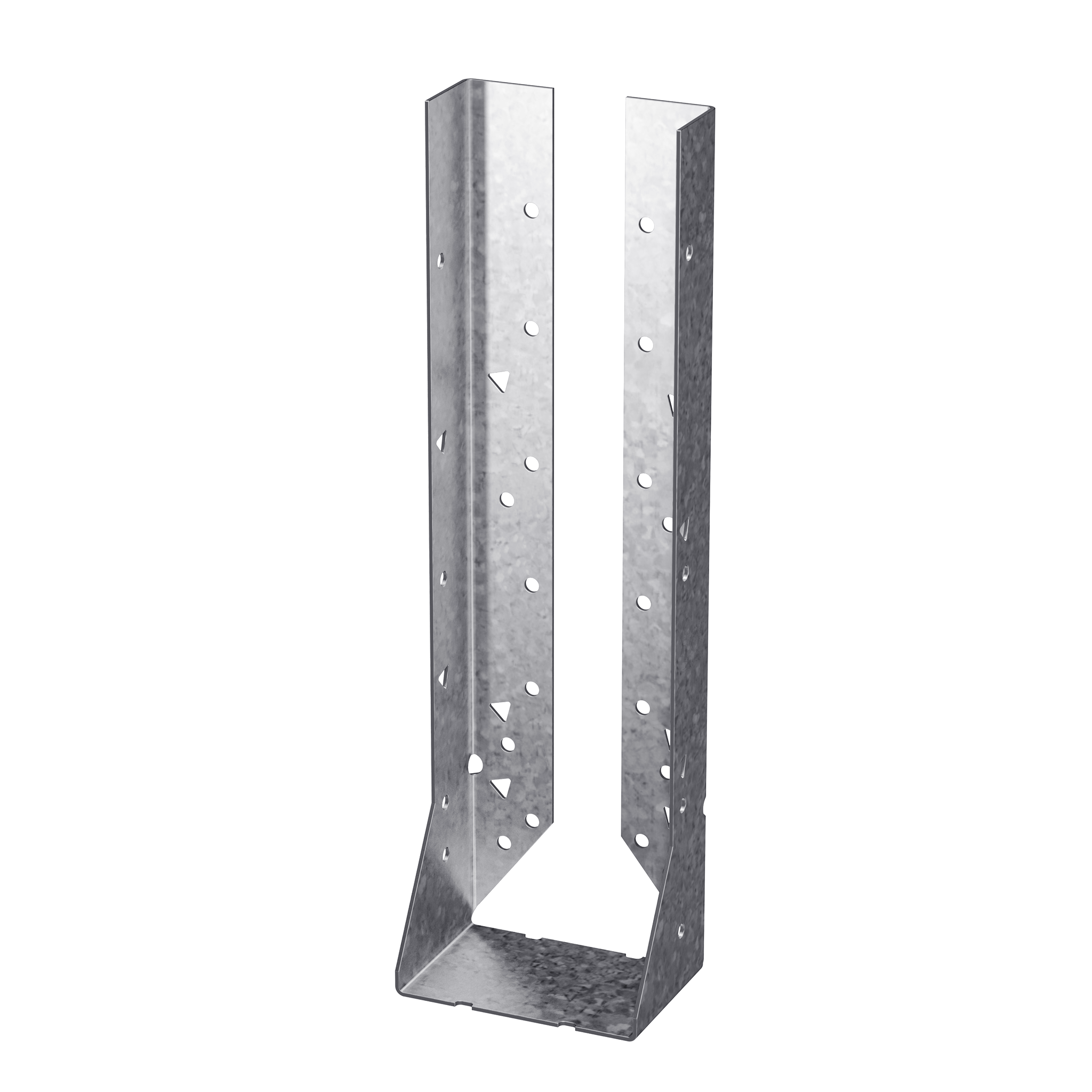

Simpson Strong-Tie HUC414 HUC Galvanized Face-Mount Concealed-Flange Joist Hanger for 4x14

Name: Simpson Strong-Tie HUC414 HUC Galvanized Face-Mount Concealed-Flange Joist Hanger for 4x14
Brand: Simpson Strong-Tie
SKU: HUC414
Availability: InStock

SKU: HUC414

Available at Our Yard

Madison Township Lumber • Matawan, NJ

(732) 566-5555

Product Description

The HUC is designed for structures requiring additional strength and safety factors. These face-mount joist hangers have concealed header flanges providing cleaner visible lines in exposed conditions. Some models of this heavy-duty hanger can be special ordered with a skewable seat and a seat that slopes as far as up to 45°.

Available Sizes & Options

SKU	Product	Status
HUC414	Simpson Strong-Tie HUC414 HUC Galvanized Face-Mount Concealed-Flange Joist Hanger for 4x14 Current	Available
IUS1811188	Simpson Strong-Tie 1 3/4 x 11-7/8 I Joist Hanger	Available
HUS18110	Simpson Strong-Tie 1 3/4 x 9 1/2 Sloped Face Mount Hanger	Available
SUR18111	Simpson Strong-Tie 1-3/4 x 11-7/8 Skew 45 R I-beam/lvl	Available
IUS18195	Simpson Strong-Tie 1-3/4 x 9-1/2 Side Mount Sing	Available
1212HL	Simpson Strong-Tie 1212HL HL 12 in. x 12 in. 7-Gauge Galvanized Heavy L Strap	Available
1212HLHDG	Simpson Strong-Tie 1212HLHDG HL 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy L Strap	Available
1212HLPC	Simpson Strong-Tie 1212HLPC HLPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental L Strap	Available
1212HT	Simpson Strong-Tie 1212HT HT 12 in. x 12 in. 7-Gauge Galvanized Heavy T Strap	Available
1212HTHDG	Simpson Strong-Tie 1212HTHDG HT 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy T Strap	Available
1212HTPC	Simpson Strong-Tie 1212HTPC HTPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental T Strap	Available
1212L	Simpson Strong-Tie 1212L 12 in. x 12 in. 14-Gauge Galvanized L Strap	Available
1212L-R	Simpson Strong-Tie 1212L-R 12 in. x 12 in. 14-Gauge Galvanized L Strap	Available
1212T	Simpson Strong-Tie 1212T 12 in. x 12 in. 14-Gauge Galvanized T Strap	Available
1212T-R	Simpson Strong-Tie 1212T-R 12 in. x 12 in. 14-Gauge Galvanized T Strap	Available
128T	Simpson Strong-Tie 128T 12 in. x 8 in. 14-Gauge Galvanized T Strap	Available
128T-R	Simpson Strong-Tie 128T-R 12 in. x 8 in. 14-Gauge Galvanized T Strap	Available
1616HT	Simpson Strong-Tie 1616HT HT 16 in. x 16 in. 7-Gauge Galvanized Heavy T Strap	Available
1616HTHDG	Simpson Strong-Tie 1616HTHDG HT 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T Strap	Available
1616HTPC	Simpson Strong-Tie 1616HTPC HTPC 16 in. x 16 in. 7-Gauge Black Powder-Coated Ornamental T Strap	Available
1616HTQ	Simpson Strong-Tie 1616HTQ HTQ 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T Strap	Available

Product Details

Key Features

Extra optional triangle holes for additional load
HUC-series hangers are tested, load rated and code compliant

Material

14 ga. (68 mil)

Finish

Galvanized. Some products available in ZMAX^® coating or stainless steel; see Corrosion Information.

Installation

Use all specified fasteners; see General Notes.
Can be installed filling round holes only, or filling round and triangle holes for maximum values.
Joists sloped up to 1/4:12 achieve table loads.
For installations to masonry or concrete, see HUC in Masonry Hangers.
Can be attached to a steel support. Refer to technical bulletin HU/HUC/HUCQ Wood Joist to Supporting Structural Steel Member (TEB-C-HUHUCQ).
When nailing into solid sawn carrying member's end grain, the allowable load is adjusted by a factor of 0.67.
Web stiffeners required for I-joist applications.
