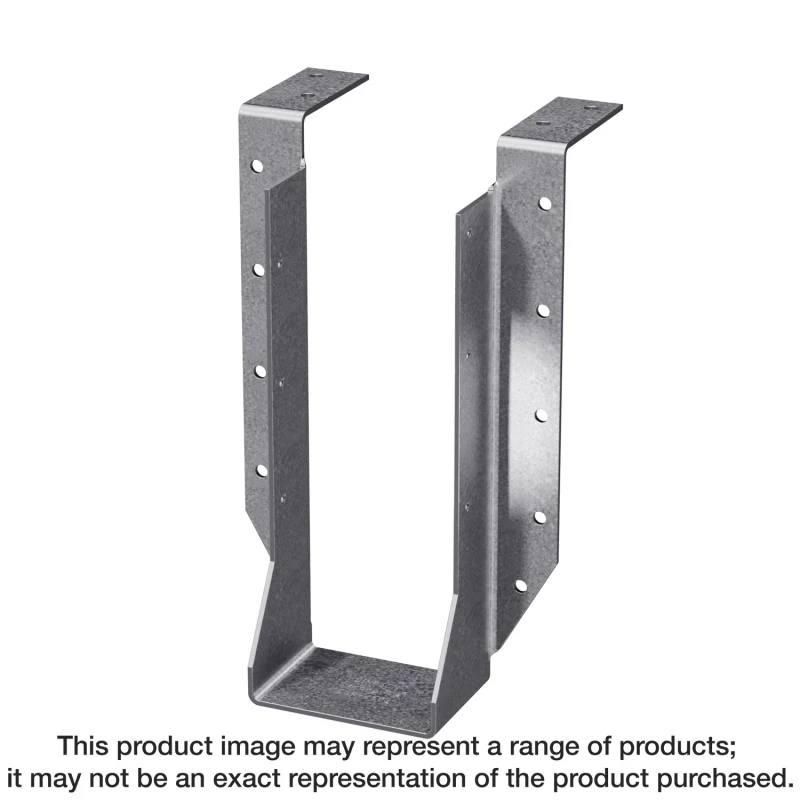

Simpson Strong-Tie Hanger

• Alternate heights and widths available by special order
• Can be skewed or sloped to a maximum of 45°
• HUTF-series hangers are tested, load rated and code listed

• 12 ga.

• Galvanized. Some products available in ZMAX or HDG; see Corrosion Information.

Sloped and/or Skewed Seat

• HUTF can be skewed to a maximum of 45° or sloped to a maximum of 45°. HUTF can be skewed and sloped down only, provided W ≥ 2 3/8". No skew with slope up options available.
• For skews greater than 15°, uplift loads are 0.75 of the table loads. Hangers with a skew greater than 15° may have all the joist nailing on the outside angle.
• For sloped and skewed combinations, the allowable loads are 0.70 of the table loads.
• For sloped-down-only hangers, allowable load is 0.78 of the table load.

Concealed Flange

• HUTF is available with one A flange concealed at 0.85 of the catalog table load.
• HUTF is available with both flanges concealed provided the W dimension is 2 9/16" or greater, at 0.85 of the table load. See HUCTF for both flanges concealed. No skew options available.

• Use all specified fasteners; see General Notes
• Not acceptable for nailer or welded applications
• HUTF — the minimum header or ledger size that can be used with this hanger is 3 1/2"

• Wood Construction Connectors Technical Notes
• General Notes
• Corrosion Information

• C-C-2026 (Wood Construction Connectors), page 141
