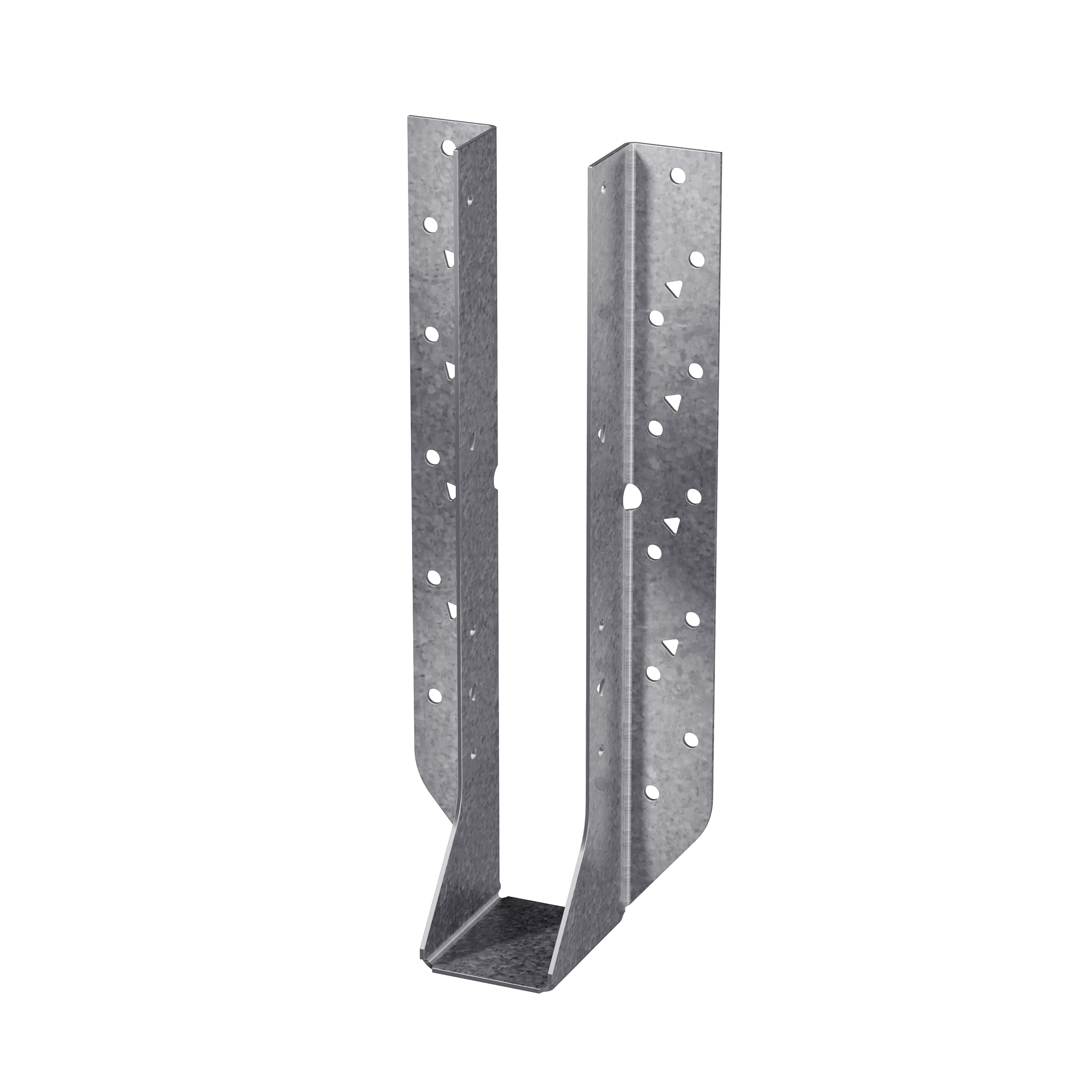

Simpson Strong-Tie HU11 HU Galvanized Face-Mount Joist Hanger for 1-3/4 in. x 11-7/8 in. Engineered Wood

Name: Simpson Strong-Tie HU11 HU Galvanized Face-Mount Joist Hanger for 1-3/4 in. x 11-7/8 in. Engineered Wood
Brand: Simpson Strong-Tie
SKU: HU11
Availability: InStock

SKU: HU11

Available at Our Yard

Madison Township Lumber • Matawan, NJ

(732) 566-5555

Product Description

Simpson Strong-Tie® connectors make projects easier to build while making them stronger and safer. They are engineered and tested to perform and are manufactured to the highest quality standards. Whether working on a home project or building a structure to comply with building codes, go with the choice of engineers and contractors, go with genuine Simpson Strong-Tie connectors. The HU is a heavy-duty face-mount joist hanger designed for structures requiring additional strength and safety factors.

Available Sizes & Options

SKU	Product	Status
HU11	Simpson Strong-Tie HU11 HU Galvanized Face-Mount Joist Hanger for 1-3/4 in. x 11-7/8 in. Engineered Wood Current	Available
HU7	Simpson Strong-Tie HU7 HU Galvanized Face-Mount Joist Hanger for 1-3/4 in. x 7-1/4 in. Engineered Wood	Available
HU48	Simpson Strong-Tie HU48 HU Galvanized Face-Mount Joist Hanger for 4x8	Available
HU410	Simpson Strong-Tie HU410 HU Galvanized Face-Mount Joist Hanger for 4x10	Available
HU412	Simpson Strong-Tie HU412 HU Galvanized Face-Mount Joist Hanger for 4x12	Available
HU414	Simpson Strong-Tie HU414 HU Galvanized Face-Mount Joist Hanger for 4x14	Available
HU416	Simpson Strong-Tie HU416 HU Galvanized Face-Mount Joist Hanger for 4x16	Available
HU610	Simpson Strong-Tie HU610 HU Galvanized Face-Mount Joist Hanger for 6x10	Available
HU4102	Simpson Strong-Tie 4 x 10 Face Mount Hanger Double	Available
HU4122	Simpson Strong-Tie Hu 412-2 Dfm 80/90 Hanger	Available
HU4142	Simpson Strong-Tie Hu 414-2 Dfm Hanger	Available

Product Details

Key Features

Added triangular holes on most models for additional load capacity
HU-series hangers are tested, load rated and code compliant

Material

14 gauge (68 mil)

Finish

Galvanized. Some products available in ZMAX^® coating or stainless steel; see Corrosion Information.

Options

To order sloped, skewed, or sloped/skewed, order HU_X hangers. For both flanges concealed, order HUC.
HU is available with one flange concealed when the W dimension is less than 2 5/16" at 100% of the table load. Specify as an ‘X’ version and specify flange to conceal.
See table-modifications table for available options and associated load capacities for HU hangers.
For ease of ordering, refer to technical bulletin U/HU Hangers (T-C-U-HU-WS).

Installation

Use all specified fasteners; see General Notes.
Can be installed filling round holes only, or filling round and triangle holes for maximum values.
Joists sloped up to 1/4:12 achieve table loads.
For installations to masonry or concrete, see HU in masonry.
Can be attached to a steel support. Refer to technical bulletin HU/HUC/HUCQ Wood Joist to Supporting Structural Steel Member (TEB-C-HUHUCQ).
When nailing into solid sawn carrying member's end grain, the allowable load is adjusted by a factor of 0.67.
Web stiffeners required for I-joist applications.
