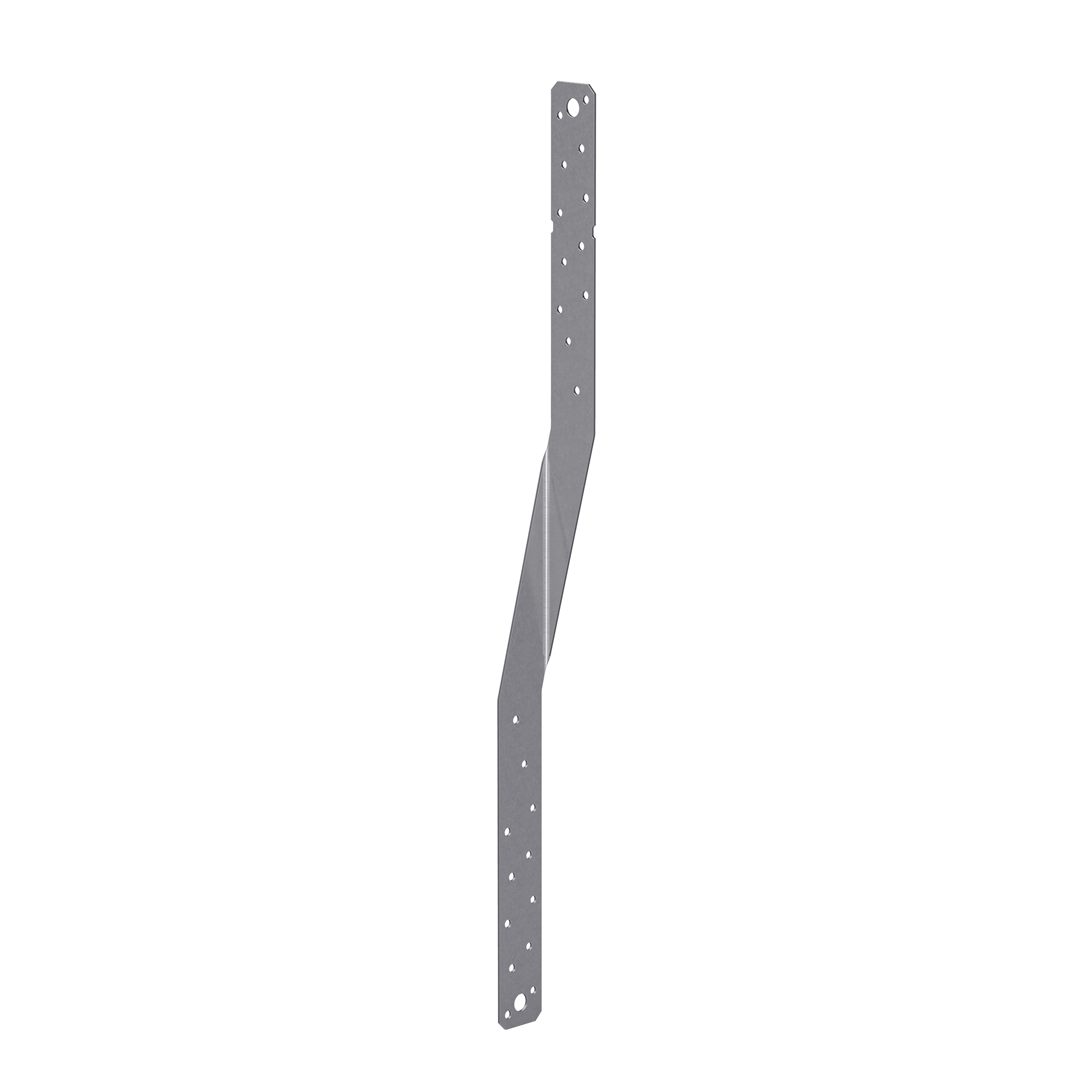

Simpson Strong-Tie HTS20 HTS 20 in. 14-Gauge Galvanized Heavy Twist Strap

Name: Simpson Strong-Tie HTS20 HTS 20 in. 14-Gauge Galvanized Heavy Twist Strap
Brand: Simpson Strong-Tie
SKU: HTS20
Availability: InStock

SKU: HTS20

Available at Our Yard

Madison Township Lumber • Matawan, NJ

(732) 566-5555

Product Description

Simpson Strong-Tie straps and plates join and reinforce joints with simple, versatile solutions for a wide range of connections. The HTS provides a tension connection between two members. This economical twist strap resists heavy uplift loads at the rafter or heel of a truss. The HTS has a small bend section to reduce interference at the transition points between the two members.

Available Sizes & Options

SKU	Product	Status
HTS20	Simpson Strong-Tie HTS20 HTS 20 in. 14-Gauge Galvanized Heavy Twist Strap Current	Available
IUS1811188	Simpson Strong-Tie 1 3/4 x 11-7/8 I Joist Hanger	Available
HUS18110	Simpson Strong-Tie 1 3/4 x 9 1/2 Sloped Face Mount Hanger	Available
SUR18111	Simpson Strong-Tie 1-3/4 x 11-7/8 Skew 45 R I-beam/lvl	Available
IUS18195	Simpson Strong-Tie 1-3/4 x 9-1/2 Side Mount Sing	Available
1212HL	Simpson Strong-Tie 1212HL HL 12 in. x 12 in. 7-Gauge Galvanized Heavy L Strap	Available
1212HLHDG	Simpson Strong-Tie 1212HLHDG HL 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy L Strap	Available
1212HLPC	Simpson Strong-Tie 1212HLPC HLPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental L Strap	Available
1212HT	Simpson Strong-Tie 1212HT HT 12 in. x 12 in. 7-Gauge Galvanized Heavy T Strap	Available
1212HTHDG	Simpson Strong-Tie 1212HTHDG HT 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy T Strap	Available
1212HTPC	Simpson Strong-Tie 1212HTPC HTPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental T Strap	Available
1212L	Simpson Strong-Tie 1212L 12 in. x 12 in. 14-Gauge Galvanized L Strap	Available
1212L-R	Simpson Strong-Tie 1212L-R 12 in. x 12 in. 14-Gauge Galvanized L Strap	Available
1212T	Simpson Strong-Tie 1212T 12 in. x 12 in. 14-Gauge Galvanized T Strap	Available
1212T-R	Simpson Strong-Tie 1212T-R 12 in. x 12 in. 14-Gauge Galvanized T Strap	Available
128T	Simpson Strong-Tie 128T 12 in. x 8 in. 14-Gauge Galvanized T Strap	Available
128T-R	Simpson Strong-Tie 128T-R 12 in. x 8 in. 14-Gauge Galvanized T Strap	Available
1616HT	Simpson Strong-Tie 1616HT HT 16 in. x 16 in. 7-Gauge Galvanized Heavy T Strap	Available
1616HTHDG	Simpson Strong-Tie 1616HTHDG HT 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T Strap	Available
1616HTPC	Simpson Strong-Tie 1616HTPC HTPC 16 in. x 16 in. 7-Gauge Black Powder-Coated Ornamental T Strap	Available
1616HTQ	Simpson Strong-Tie 1616HTQ HTQ 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T Strap	Available

Product Details

Key Features

Available with the bend reversed
Straps do not need to be wrapped over the truss to achieve the allowable load
Versatile with many lengths offered to fit the specific application

Material

14 gauge

Finish

Galvanized. Some products available in ZMAX^®; see Corrosion Information.

Installation

Use all specified fasteners, with half into each member being connected, to achieve the listed loads; see General Notes.
Available with the bend reversed. Specify "-REV" after the model number, such as HTS16-REV.
