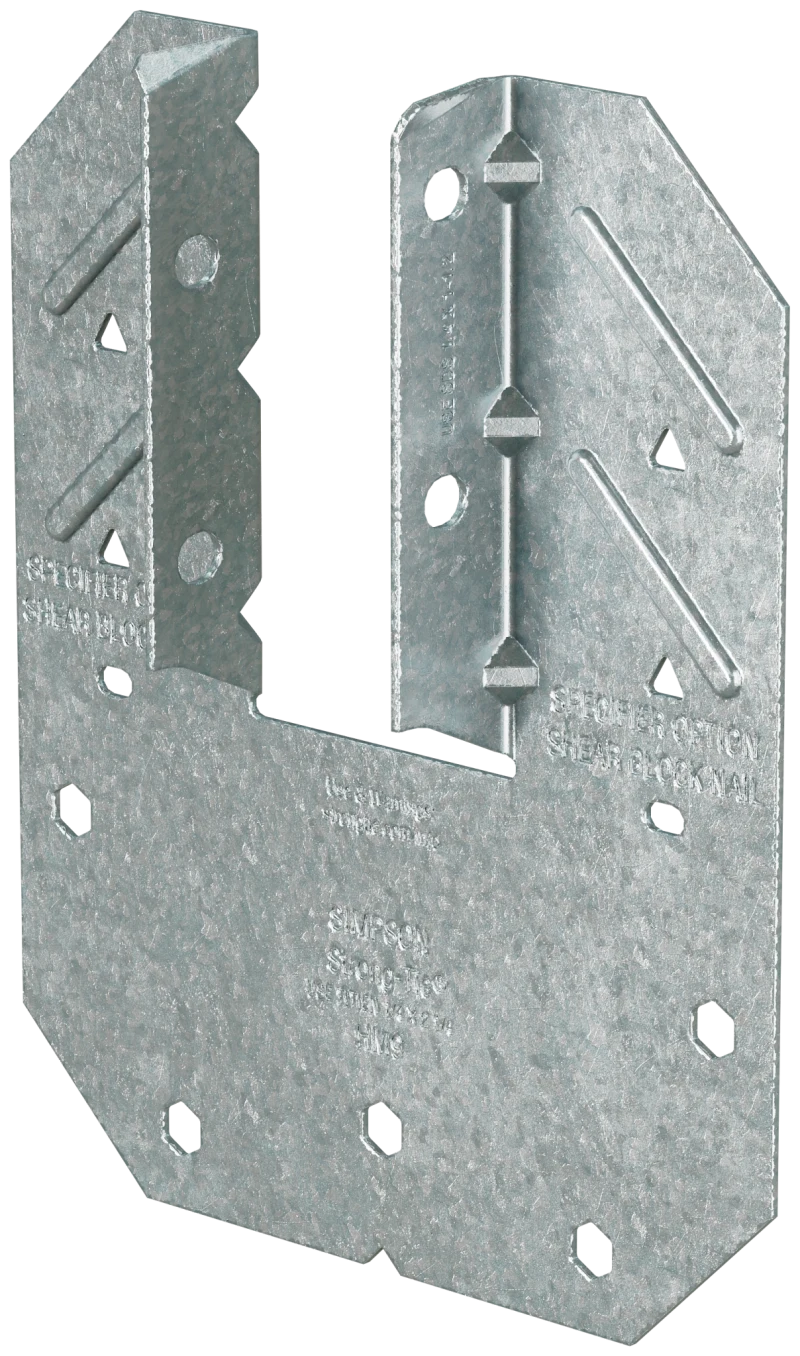

Simpson Strong-Tie HM9KT HM9 18-Gauge Galvanized Hurricane Tie with Screws (20-Qty)
Hangers

Simpson Strong-Tie HM9KT HM9 18-Gauge Galvanized Hurricane Tie with Screws (20-Qty)

SKU: HM9KT
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

Simpson Strong-Tie hurricane ties are designed to resist high winds and seismic forces by positively connecting trusses/rafters to the top of wall of the structure. These ties connect both solid-sawn and engineered lumber across a wide range of applications. Designed to retrofit roof truss/rafters for block construction, the HM9 hurricane tie provides high uplift and lateral capacity using Simpson Strong-Tie® Titen® Turbo concrete and masonry screws.

Available Sizes & Options

SKUProductStatus
HM9KTSimpson Strong-Tie HM9KT HM9 18-Gauge Galvanized Hurricane Tie with Screws (20-Qty) CurrentAvailable
IUS1811188Simpson Strong-Tie 1 3/4 x 11-7/8 I Joist HangerAvailable
HUS18110Simpson Strong-Tie 1 3/4 x 9 1/2 Sloped Face Mount HangerAvailable
SUR18111Simpson Strong-Tie 1-3/4 x 11-7/8 Skew 45 R I-beam/lvlAvailable
IUS18195Simpson Strong-Tie 1-3/4 x 9-1/2 Side Mount SingAvailable
1212HLSimpson Strong-Tie 1212HL HL 12 in. x 12 in. 7-Gauge Galvanized Heavy L StrapAvailable
1212HLHDGSimpson Strong-Tie 1212HLHDG HL 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy L StrapAvailable
1212HLPCSimpson Strong-Tie 1212HLPC HLPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental L StrapAvailable
1212HTSimpson Strong-Tie 1212HT HT 12 in. x 12 in. 7-Gauge Galvanized Heavy T StrapAvailable
1212HTHDGSimpson Strong-Tie 1212HTHDG HT 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1212HTPCSimpson Strong-Tie 1212HTPC HTPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1212LSimpson Strong-Tie 1212L 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212L-RSimpson Strong-Tie 1212L-R 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212TSimpson Strong-Tie 1212T 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
1212T-RSimpson Strong-Tie 1212T-R 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
128TSimpson Strong-Tie 128T 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
128T-RSimpson Strong-Tie 128T-R 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
1616HTSimpson Strong-Tie 1616HT HT 16 in. x 16 in. 7-Gauge Galvanized Heavy T StrapAvailable
1616HTHDGSimpson Strong-Tie 1616HTHDG HT 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1616HTPCSimpson Strong-Tie 1616HTPC HTPC 16 in. x 16 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1616HTQSimpson Strong-Tie 1616HTQ HTQ 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable

Product Details

Key Features

  • Provides a connection between the truss or rafter and the wall of the structure that helps resist wind and seismic forces
  • Provides high uplift and lateral capacity
  • The embossments add stiffness in crucial areas for improved performance

Material

  • 18 ga.

Finish

  • Galvanized (G90)

Installation

  • Use all specified fasteners; see General Notes
  • Connectors attached using Strong-Drive® SDS Heavy-Duty Connector screws and hex-head Titen Turbo™ screws
  • Products shall be installed such that the Titen Turbo screws and Titen HD® screw anchors are not exposed to the exterior environment
  • Attach to grouted concrete block with a minimum one #5 rebar horizontal in the course
  • Hurricane ties do not replace solid blocking
