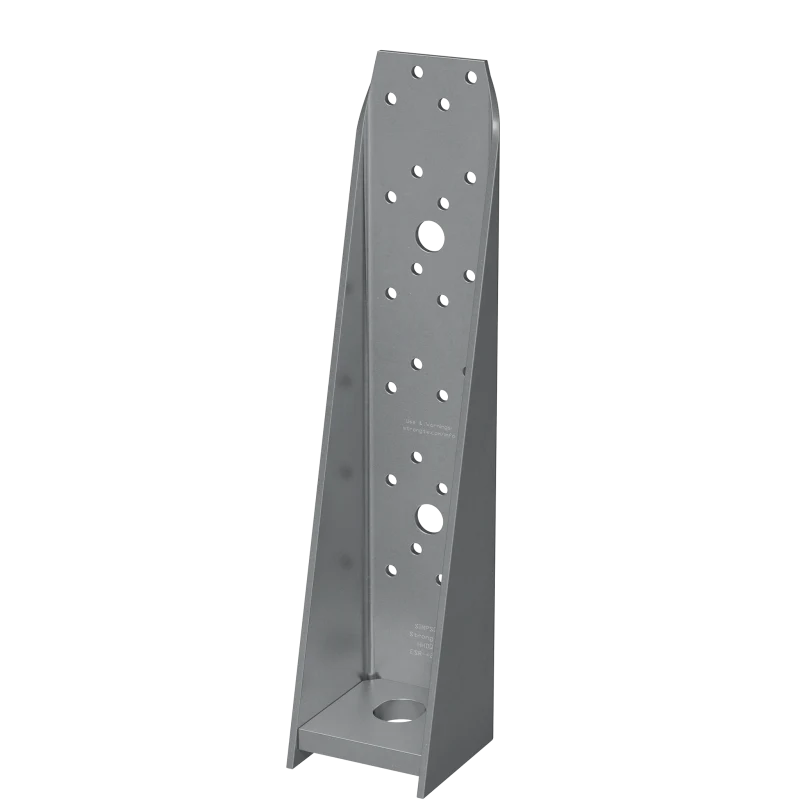

Simpson Strong-Tie HHDQ11-SDS2.5 HHDQ 15-1/8 in. Holdown w/ Strong-Drive® SDS Screws
Hangers

Simpson Strong-Tie HHDQ11-SDS2.5 HHDQ 15-1/8 in. Holdown w/ Strong-Drive® SDS Screws

SKU: HHDQ11-SDS2.5
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

The HHDQ is designed for extra-high loads and provides ease of installation. This heavy holdown comes with Strong-Drive® SDS Heavy-Duty Connector screws, which install easily, reduce fastener slip and provide a greater net section than bolts. The HHDQ is installed directly on the sill plate and is suitable for back-to-back applications where eccentricity is a concern.

Available Sizes & Options

SKUProductStatus
HHDQ11-SDS2.5Simpson Strong-Tie HHDQ11-SDS2.5 HHDQ 15-1/8 in. Holdown w/ Strong-Drive® SDS Screws CurrentAvailable
IUS1811188Simpson Strong-Tie 1 3/4 x 11-7/8 I Joist HangerAvailable
HUS18110Simpson Strong-Tie 1 3/4 x 9 1/2 Sloped Face Mount HangerAvailable
SUR18111Simpson Strong-Tie 1-3/4 x 11-7/8 Skew 45 R I-beam/lvlAvailable
IUS18195Simpson Strong-Tie 1-3/4 x 9-1/2 Side Mount SingAvailable
1212HLSimpson Strong-Tie 1212HL HL 12 in. x 12 in. 7-Gauge Galvanized Heavy L StrapAvailable
1212HLHDGSimpson Strong-Tie 1212HLHDG HL 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy L StrapAvailable
1212HLPCSimpson Strong-Tie 1212HLPC HLPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental L StrapAvailable
1212HTSimpson Strong-Tie 1212HT HT 12 in. x 12 in. 7-Gauge Galvanized Heavy T StrapAvailable
1212HTHDGSimpson Strong-Tie 1212HTHDG HT 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1212HTPCSimpson Strong-Tie 1212HTPC HTPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1212LSimpson Strong-Tie 1212L 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212L-RSimpson Strong-Tie 1212L-R 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212TSimpson Strong-Tie 1212T 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
1212T-RSimpson Strong-Tie 1212T-R 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
128TSimpson Strong-Tie 128T 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
128T-RSimpson Strong-Tie 128T-R 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
1616HTSimpson Strong-Tie 1616HT HT 16 in. x 16 in. 7-Gauge Galvanized Heavy T StrapAvailable
1616HTHDGSimpson Strong-Tie 1616HTHDG HT 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1616HTPCSimpson Strong-Tie 1616HTPC HTPC 16 in. x 16 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1616HTQSimpson Strong-Tie 1616HTQ HTQ 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable

Product Details

Key Features

  • Strong-Drive SDS Heavy-Duty Connector screws are supplied with the holdowns to ensure proper fasteners are used
  • Screws may be installed either flush or raised off the mudsill without a reduction in load value
  • No stud bolts to countersink at openings

Material

  • Body: 7 gauge, washer: 1/2" plate

Finish

  • Simpson Strong-Tie gray paint; HHDQ11 — available in stainless steel; refer to engineering letter L-C-SSHD

Installation

  • See General Notes for Holdowns and Tension Ties
  • Strong-Drive SDS Heavy-Duty Connector screws install best with a low-speed, high-torque drill equipped with a 3/8" hex-head driver
  • No additional washer is required
  • HHDQ14 requires a heavy-hex anchor nut (supplied with holdown)
