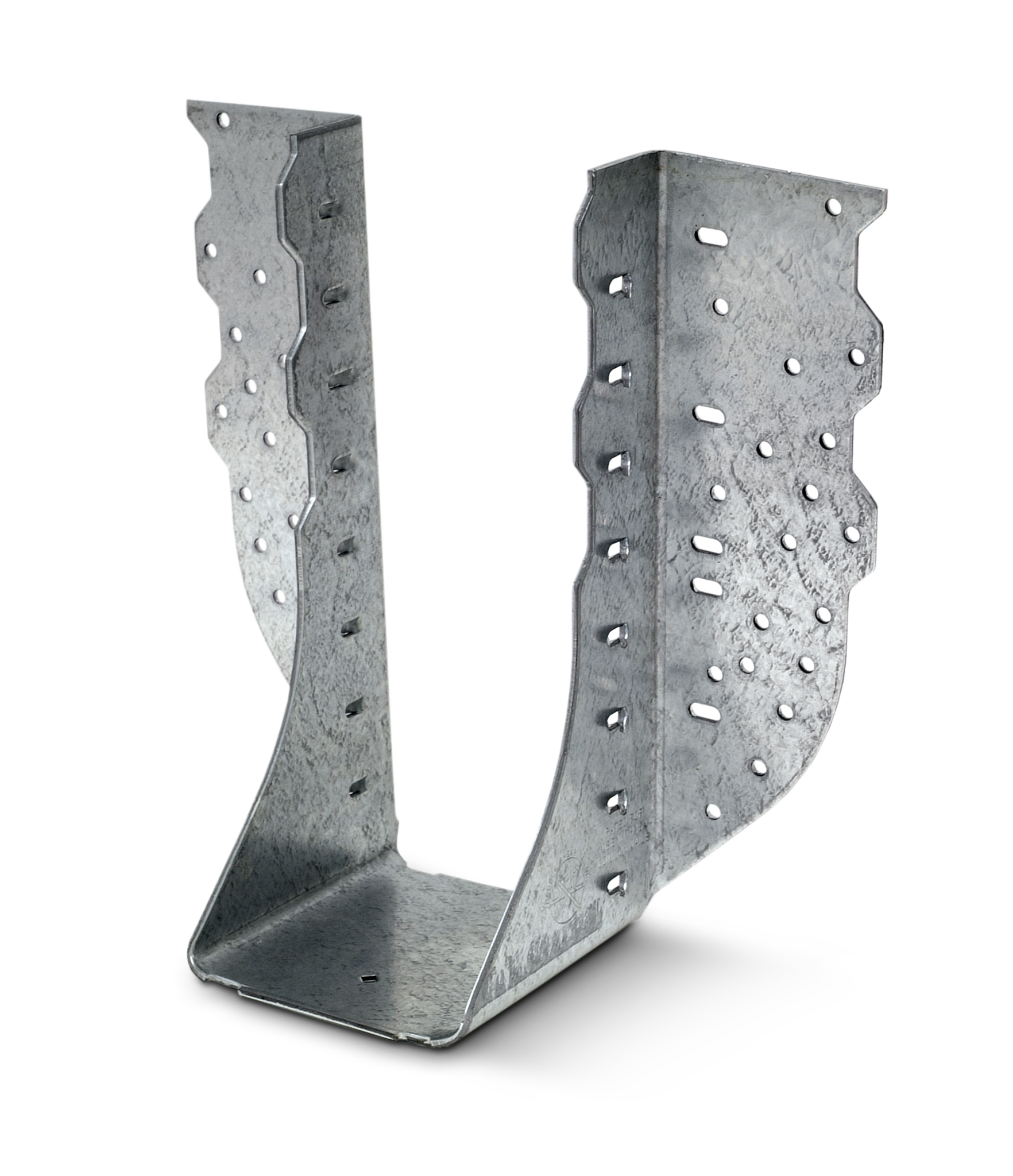

Simpson Strong-Tie HGUS410 HGUS® Galvanized Face-Mount Beam Hanger for 4x10

Name: Simpson Strong-Tie HGUS410 HGUS® Galvanized Face-Mount Beam Hanger for 4x10
Brand: Simpson Strong-Tie
SKU: HGUS410
Availability: InStock

SKU: HGUS410

Available at Our Yard

Madison Township Lumber • Matawan, NJ

(732) 566-5555

Product Description

The HGUS® is an extra-heavy-capacity hanger for applications requiring girder support. This girder hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. Value-engineered, the HGUS is designed to carry high loads for an economical price.

Available Sizes & Options

SKU	Product	Status
HGUS410	Simpson Strong-Tie HGUS410 HGUS® Galvanized Face-Mount Beam Hanger for 4x10 Current	Available
IUS1811188	Simpson Strong-Tie 1 3/4 x 11-7/8 I Joist Hanger	Available
HUS18110	Simpson Strong-Tie 1 3/4 x 9 1/2 Sloped Face Mount Hanger	Available
SUR18111	Simpson Strong-Tie 1-3/4 x 11-7/8 Skew 45 R I-beam/lvl	Available
IUS18195	Simpson Strong-Tie 1-3/4 x 9-1/2 Side Mount Sing	Available
1212HL	Simpson Strong-Tie 1212HL HL 12 in. x 12 in. 7-Gauge Galvanized Heavy L Strap	Available
1212HLHDG	Simpson Strong-Tie 1212HLHDG HL 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy L Strap	Available
1212HLPC	Simpson Strong-Tie 1212HLPC HLPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental L Strap	Available
1212HT	Simpson Strong-Tie 1212HT HT 12 in. x 12 in. 7-Gauge Galvanized Heavy T Strap	Available
1212HTHDG	Simpson Strong-Tie 1212HTHDG HT 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy T Strap	Available
1212HTPC	Simpson Strong-Tie 1212HTPC HTPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental T Strap	Available
1212L	Simpson Strong-Tie 1212L 12 in. x 12 in. 14-Gauge Galvanized L Strap	Available
1212L-R	Simpson Strong-Tie 1212L-R 12 in. x 12 in. 14-Gauge Galvanized L Strap	Available
1212T	Simpson Strong-Tie 1212T 12 in. x 12 in. 14-Gauge Galvanized T Strap	Available
1212T-R	Simpson Strong-Tie 1212T-R 12 in. x 12 in. 14-Gauge Galvanized T Strap	Available
128T	Simpson Strong-Tie 128T 12 in. x 8 in. 14-Gauge Galvanized T Strap	Available
128T-R	Simpson Strong-Tie 128T-R 12 in. x 8 in. 14-Gauge Galvanized T Strap	Available
1616HT	Simpson Strong-Tie 1616HT HT 16 in. x 16 in. 7-Gauge Galvanized Heavy T Strap	Available
1616HTHDG	Simpson Strong-Tie 1616HTHDG HT 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T Strap	Available
1616HTPC	Simpson Strong-Tie 1616HTPC HTPC 16 in. x 16 in. 7-Gauge Black Powder-Coated Ornamental T Strap	Available
1616HTQ	Simpson Strong-Tie 1616HTQ HTQ 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T Strap	Available

Product Details

Key Features

Can be installed after the beam is secured in place
HGUS-series hangers are tested, load rated and code compliant

Material

12 ga.

Finish

Galvanized

Installation

Use all specified fasteners; see General Notes.
Joist nails must be driven at an angle through the joist or truss into the header to achieve the table loads.
Not designed for welded or nailer applications.
Do not use double-shear hangers with I-joists.
With 3x carrying members: when 0.162" x 3 1/2" nails are specified, use 0.162" x 2 1/2" nails into the header and 0.162" x 3 1/2" nails into the joist with no load reduction. When 0.148" x 3" nails are specified, use 0.148" x 2 1/2" nails into the header and 0.148" x 3" nails into the joist with no load reduction.
With 2x carrying members: when 0.162" x 3 1/2" nails are specified, use 0.148" x 1 1/2" nails into the header and 0.148" x 3" nails into the joist and reduce the load to 0.64 of the table values. When 0.148" x 3" nails are specified, use 0.148" x 1 1/2" nails into the header and 0.148" x 3" nails into the joist and reduce the load to 0.77 of the table values. See Fastener Design Information.
