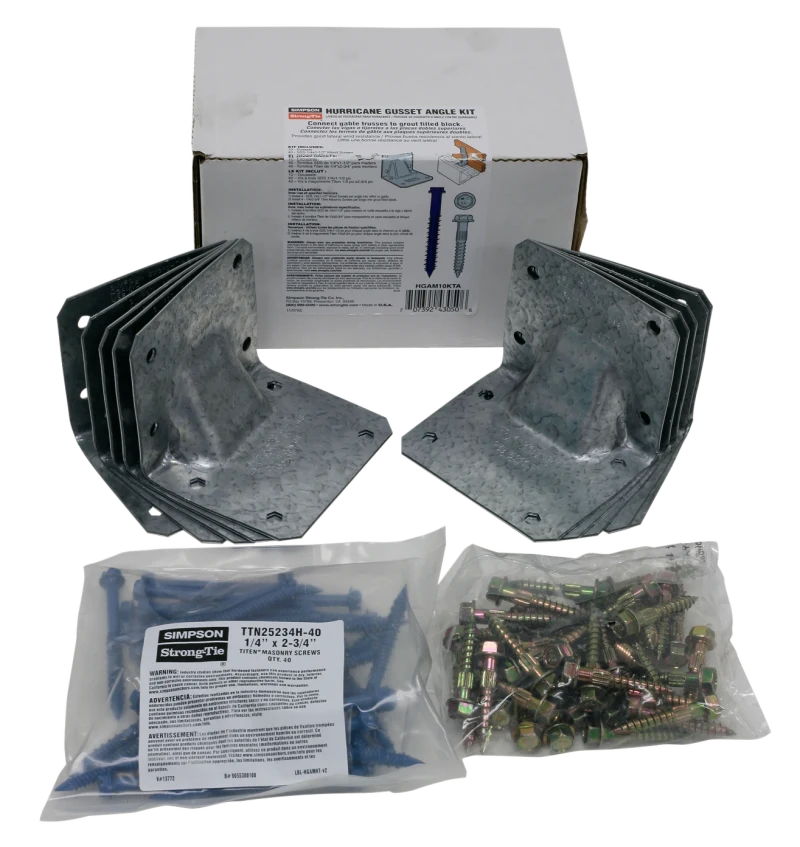

Simpson Strong-Tie HGAM10KTA HGAM Hurricane Gusset Angle for Masonry with Screws (10-Qty)
Hangers

Simpson Strong-Tie HGAM10KTA HGAM Hurricane Gusset Angle for Masonry with Screws (10-Qty)

SKU: HGAM10KTA
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

The HGAM is designed to secure the bottom chord of a gable end truss or other framing member to masonry. The engineered gusset in the angle increases strength for lateral and uplift loads. This hurricane gusset angle installs easily with 1-1/2 in. Strong-Drive® SDS Heavy-Duty Connector screws and Titen Turbo™ masonry screws to concrete or masonry.

Available Sizes & Options

SKUProductStatus
HGAM10KTASimpson Strong-Tie HGAM10KTA HGAM Hurricane Gusset Angle for Masonry with Screws (10-Qty) CurrentAvailable
IUS1811188Simpson Strong-Tie 1 3/4 x 11-7/8 I Joist HangerAvailable
HUS18110Simpson Strong-Tie 1 3/4 x 9 1/2 Sloped Face Mount HangerAvailable
SUR18111Simpson Strong-Tie 1-3/4 x 11-7/8 Skew 45 R I-beam/lvlAvailable
IUS18195Simpson Strong-Tie 1-3/4 x 9-1/2 Side Mount SingAvailable
1212HLSimpson Strong-Tie 1212HL HL 12 in. x 12 in. 7-Gauge Galvanized Heavy L StrapAvailable
1212HLHDGSimpson Strong-Tie 1212HLHDG HL 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy L StrapAvailable
1212HLPCSimpson Strong-Tie 1212HLPC HLPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental L StrapAvailable
1212HTSimpson Strong-Tie 1212HT HT 12 in. x 12 in. 7-Gauge Galvanized Heavy T StrapAvailable
1212HTHDGSimpson Strong-Tie 1212HTHDG HT 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1212HTPCSimpson Strong-Tie 1212HTPC HTPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1212LSimpson Strong-Tie 1212L 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212L-RSimpson Strong-Tie 1212L-R 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212TSimpson Strong-Tie 1212T 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
1212T-RSimpson Strong-Tie 1212T-R 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
128TSimpson Strong-Tie 128T 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
128T-RSimpson Strong-Tie 128T-R 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
1616HTSimpson Strong-Tie 1616HT HT 16 in. x 16 in. 7-Gauge Galvanized Heavy T StrapAvailable
1616HTHDGSimpson Strong-Tie 1616HTHDG HT 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1616HTPCSimpson Strong-Tie 1616HTPC HTPC 16 in. x 16 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1616HTQSimpson Strong-Tie 1616HTQ HTQ 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable

Product Details

Key Features

  • Engineered for increased loads in high-wind or seismic events
  • Also available in kits with Strong-Drive SDS and Titen Turbo screws
  • Strong-Drive SDS screws are high-strength structural screws that install with no predrilling because of their patented, easy driving Type-17 point

Material

  • 14 ga.

Finish

  • Galvanized

Installation

  • Use all specified fasteners; see General Notes
  • Connectors attached using hex-head Titen Turbo screws
  • Products shall be installed such that the Titen Turbo screws are not exposed to the exterior environment
  • Attach to grout-filled CMU with a minimum one #5 rebar horizontal in the course
  • Hurricane ties do not replace solid blocking
