Product Description

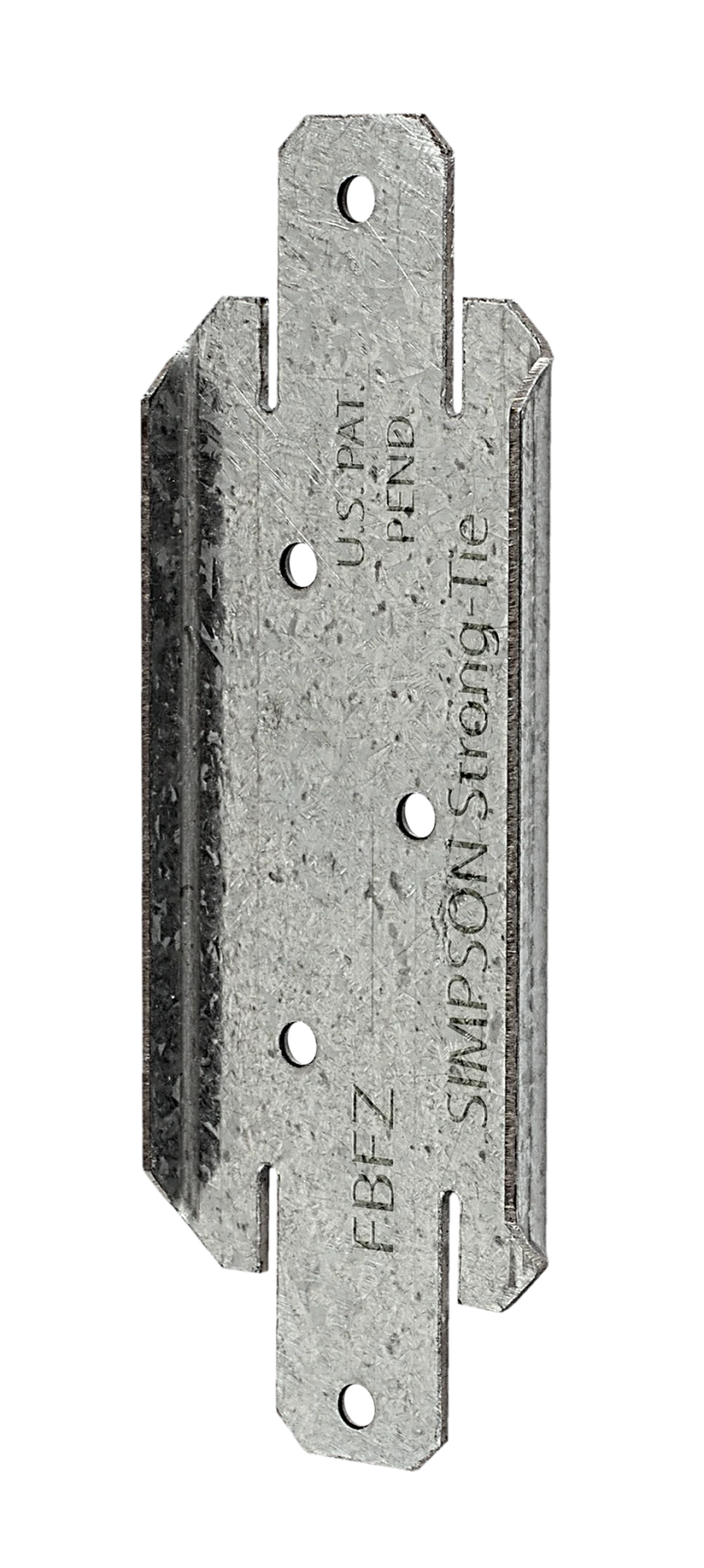

The FBFZ is designed to provide a sturdy, concealed connection between rails and posts. The design of this flat fence rail bracket provides strong, simple connections without the need for toe nails or screws. The flat-plate design of the FBFZ both eases installation and provides a clean appearance.

Available Sizes & Options

SKUProductStatus
FBFZSimpson Strong-Tie FBFZ FBFZ™ ZMAX® Galvanized Flat Rail Fence Bracket for 2x4 CurrentAvailable
IUS1811188Simpson Strong-Tie 1 3/4 x 11-7/8 I Joist HangerAvailable
HUS18110Simpson Strong-Tie 1 3/4 x 9 1/2 Sloped Face Mount HangerAvailable
SUR18111Simpson Strong-Tie 1-3/4 x 11-7/8 Skew 45 R I-beam/lvlAvailable
IUS18195Simpson Strong-Tie 1-3/4 x 9-1/2 Side Mount SingAvailable
1212HLSimpson Strong-Tie 1212HL HL 12 in. x 12 in. 7-Gauge Galvanized Heavy L StrapAvailable
1212HLHDGSimpson Strong-Tie 1212HLHDG HL 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy L StrapAvailable
1212HLPCSimpson Strong-Tie 1212HLPC HLPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental L StrapAvailable
1212HTSimpson Strong-Tie 1212HT HT 12 in. x 12 in. 7-Gauge Galvanized Heavy T StrapAvailable
1212HTHDGSimpson Strong-Tie 1212HTHDG HT 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1212HTPCSimpson Strong-Tie 1212HTPC HTPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1212LSimpson Strong-Tie 1212L 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212L-RSimpson Strong-Tie 1212L-R 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212TSimpson Strong-Tie 1212T 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
1212T-RSimpson Strong-Tie 1212T-R 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
128TSimpson Strong-Tie 128T 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
128T-RSimpson Strong-Tie 128T-R 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
1616HTSimpson Strong-Tie 1616HT HT 16 in. x 16 in. 7-Gauge Galvanized Heavy T StrapAvailable
1616HTHDGSimpson Strong-Tie 1616HTHDG HT 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1616HTPCSimpson Strong-Tie 1616HTPC HTPC 16 in. x 16 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1616HTQSimpson Strong-Tie 1616HTQ HTQ 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable

Product Details

Key Features

  • Clean, versatile connections make planning and building fences, deck/porch railings and louvers fast and easy
  • Can be used for handrail attachments for porch and deck railings that are 30" or closer to ground level
  • Bendable tabs on each end of the bracket allow for slight adjustments when wood rails are cut too short and provide a secure connection when wood expands and contracts
  • Flexible hole design can accommodate multiple fastener types, including nails and Strong-Drive® SD Connector screws

Material

  • 18 ga.

Finish

  • ZMAX® coating; see Corrosion Information

Installation

  • Install the FBFZ using 0.131" x 1 1/2" nails or #9 x 1 1/2" Strong-Drive SD Connector screws.
  • Position the bracket on the end of the 2x4 rail. Install fasteners into all (3) holes. Slide the rail into place against the post or other wood supporting member. Install (1) fastener through both the top and bottom holes into the supporting member.
