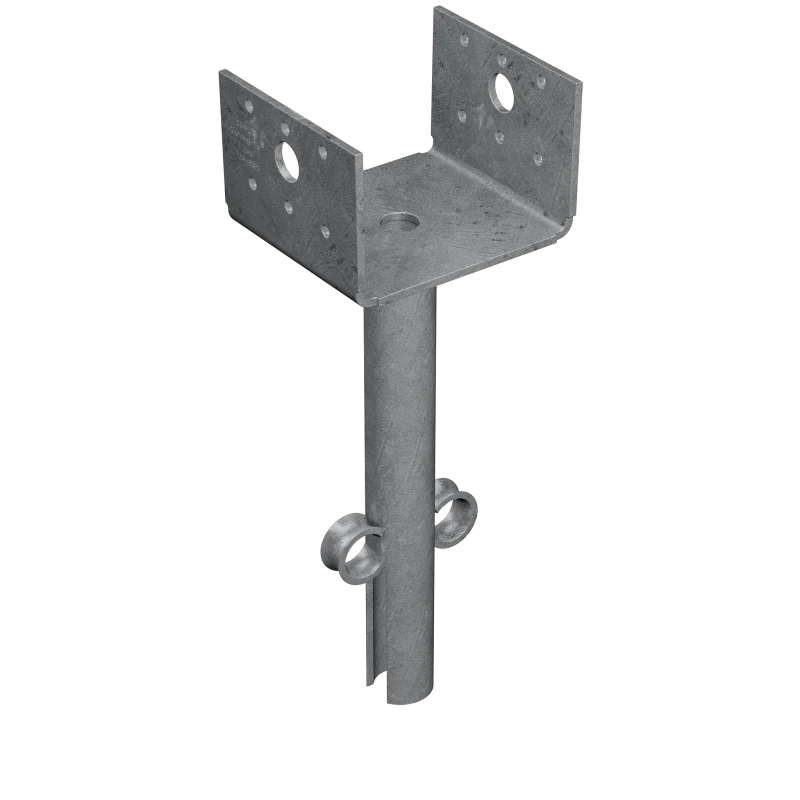

Simpson Strong-Tie EPB44HDGMB EPB Hot-Dip Galvanized Elevated Post Base for 4x4 (50-Qty)
Hangers

Simpson Strong-Tie EPB44HDGMB EPB Hot-Dip Galvanized Elevated Post Base for 4x4 (50-Qty)

SKU: EPB44HDGMB
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

Post and column bases secure the bottom of posts or columns to concrete and are perfect for decks or patio covers. Models are available for attaching to existing hardened concrete, wet concrete, as well as wood. The cast-in-place EPB series provides a secure connection to the concrete and the code-required 1 in. standoff to help prevent rot at the post end.

Available Sizes & Options

SKUProductStatus
EPB44HDGMBSimpson Strong-Tie EPB44HDGMB EPB Hot-Dip Galvanized Elevated Post Base for 4x4 (50-Qty) CurrentAvailable
IUS1811188Simpson Strong-Tie 1 3/4 x 11-7/8 I Joist HangerAvailable
HUS18110Simpson Strong-Tie 1 3/4 x 9 1/2 Sloped Face Mount HangerAvailable
SUR18111Simpson Strong-Tie 1-3/4 x 11-7/8 Skew 45 R I-beam/lvlAvailable
IUS18195Simpson Strong-Tie 1-3/4 x 9-1/2 Side Mount SingAvailable
1212HLSimpson Strong-Tie 1212HL HL 12 in. x 12 in. 7-Gauge Galvanized Heavy L StrapAvailable
1212HLHDGSimpson Strong-Tie 1212HLHDG HL 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy L StrapAvailable
1212HLPCSimpson Strong-Tie 1212HLPC HLPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental L StrapAvailable
1212HTSimpson Strong-Tie 1212HT HT 12 in. x 12 in. 7-Gauge Galvanized Heavy T StrapAvailable
1212HTHDGSimpson Strong-Tie 1212HTHDG HT 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1212HTPCSimpson Strong-Tie 1212HTPC HTPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1212LSimpson Strong-Tie 1212L 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212L-RSimpson Strong-Tie 1212L-R 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212TSimpson Strong-Tie 1212T 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
1212T-RSimpson Strong-Tie 1212T-R 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
128TSimpson Strong-Tie 128T 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
128T-RSimpson Strong-Tie 128T-R 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
1616HTSimpson Strong-Tie 1616HT HT 16 in. x 16 in. 7-Gauge Galvanized Heavy T StrapAvailable
1616HTHDGSimpson Strong-Tie 1616HTHDG HT 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1616HTPCSimpson Strong-Tie 1616HTPC HTPC 16 in. x 16 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1616HTQSimpson Strong-Tie 1616HTQ HTQ 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable

Product Details

Material

  • EPB44A — 14 gauge; EPB44, EPB46, EPB66 — 12-gauge base plate, 1 1/16" OD x 8" pipe; EPB44PHDG — 12-gauge base, threaded rod support 3/4" x 6" (nut and washer are shipped assembled)

Finish

  • EPB44A — galvanized; EPB44, EPB46, EPB66 — Simpson Strong-Tie gray paint (may be ordered HDG); EPB44PHDG — HDG. See Corrosion Information.

Options

  • 12" pipe available for EPB44, 46, 66; specify "-12" after model number

Installation

EPB44A/EPB44/EPB46/EPB66

  • Use all specified fasteners; see General Notes.
  • Allows 1" to 2 1/2" clearance above concrete, 2" for EPB44A.

EPB44PHDG

Secured with Anchoring Adhesive:

  • Drill a 7/8"-diameter hole 4" deep minimum and fill the hole halfway with anchoring adhesive (per installation instructions). Insert the EPB44PHDG and adjust to the desired height. The threaded rod shall be embedded a minimum of 3 1/2". Minimum sidecover is 3" from the center of the threaded rod for both products.
  • See SET-3G™ and AT-3G™ anchoring adhesives for additional information on hole cleaning procedures and cure times.

Supported by a Nut:

  • Drill a 1"-diameter hole 3 1/2" deep minimum. Insert the EPB44PHDG and adjust to the desired height.

Cast-in-Place:

  • Embedded end to have a nut and bearing plate with a minimum embedment of 4" from top of concrete to the top of plate.
  • Minimum sidecover is 3" from the center of the threaded rod.
  • Fully engage at least three threads in the base.

Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non-top-supported installations (such as fences or unbraced carports).
