Simpson Strong-Tie ECCLR444 ECCLL L-Shape End Column Cap for 4x Beams, 4x Post, Skewed Right

SKU: ECCLR444
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

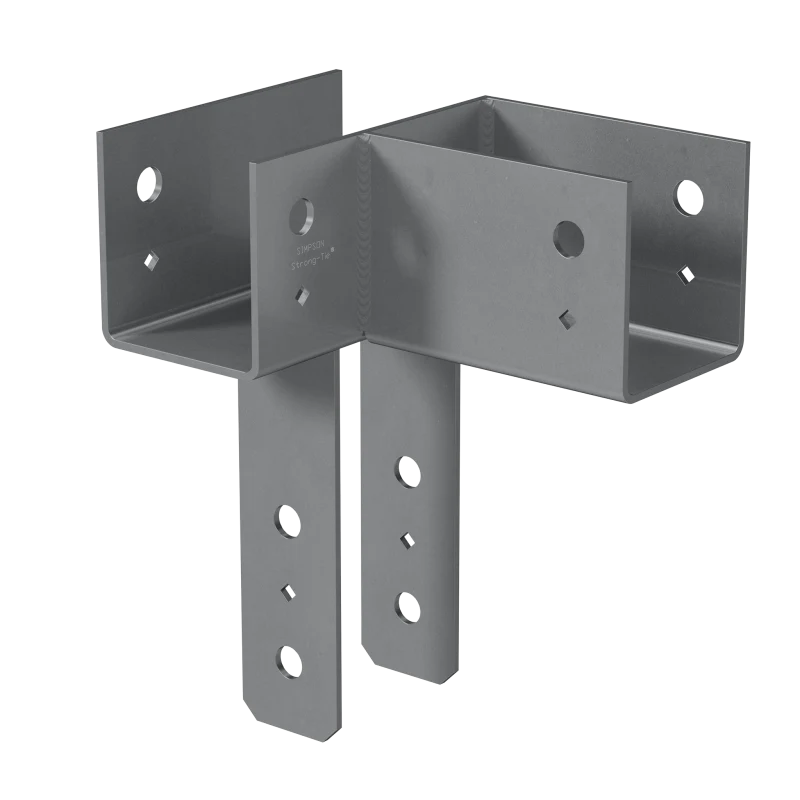

Simpson Strong-Tie® column caps come in a variety of sizes to accommodate any project, generally eliminating the need for additional brackets or braces. The ECCL is designed to provide strong column-to-beam connections in end-of-beam applications when two beams intersect in an “L” formation on top of a column. When properly installed, this column cap helps to distribute the load from the beams and provides support for the connection. End column caps are sized to the specific plan details or needs to accommodate the many combinations of beam and post sizes.

Available Sizes & Options

SKUProductStatus
ECCLR444Simpson Strong-Tie ECCLR444 ECCLL L-Shape End Column Cap for 4x Beams, 4x Post, Skewed Right CurrentAvailable
IUS1811188Simpson Strong-Tie 1 3/4 x 11-7/8 I Joist HangerAvailable
HUS18110Simpson Strong-Tie 1 3/4 x 9 1/2 Sloped Face Mount HangerAvailable
SUR18111Simpson Strong-Tie 1-3/4 x 11-7/8 Skew 45 R I-beam/lvlAvailable
IUS18195Simpson Strong-Tie 1-3/4 x 9-1/2 Side Mount SingAvailable
1212HLSimpson Strong-Tie 1212HL HL 12 in. x 12 in. 7-Gauge Galvanized Heavy L StrapAvailable
1212HLHDGSimpson Strong-Tie 1212HLHDG HL 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy L StrapAvailable
1212HLPCSimpson Strong-Tie 1212HLPC HLPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental L StrapAvailable
1212HTSimpson Strong-Tie 1212HT HT 12 in. x 12 in. 7-Gauge Galvanized Heavy T StrapAvailable
1212HTHDGSimpson Strong-Tie 1212HTHDG HT 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1212HTPCSimpson Strong-Tie 1212HTPC HTPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1212LSimpson Strong-Tie 1212L 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212L-RSimpson Strong-Tie 1212L-R 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212TSimpson Strong-Tie 1212T 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
1212T-RSimpson Strong-Tie 1212T-R 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
128TSimpson Strong-Tie 128T 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
128T-RSimpson Strong-Tie 128T-R 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
1616HTSimpson Strong-Tie 1616HT HT 16 in. x 16 in. 7-Gauge Galvanized Heavy T StrapAvailable
1616HTHDGSimpson Strong-Tie 1616HTHDG HT 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1616HTPCSimpson Strong-Tie 1616HTPC HTPC 16 in. x 16 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1616HTQSimpson Strong-Tie 1616HTQ HTQ 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable

Product Details

Key Features

  • Certified welds for confidence in strength and loading
  • Bolt spacing that meets NDS code requirements to ensure optimal performance
  • Diamond holes to provide temporary fastening

Material

  • 7 gauge or 3 gauge depending on size

Finish

  • Simpson Strong-Tie gray paint. Also available in HDG; see Corrosion Information.

Options

  • The download shall be determined from the allowable loads for the unmodified product (see ECC column caps). The side beam can take a maximum of 40% of the download and shall not exceed 10,665 lb. The sum of the loads for the side beam(s) and main beam cannot exceed the table load.
  • Uplift loads do not apply for ECCL caps.
  • The column width in the direction of the main beam width must be the same as the main beam width (W1).
  • Specify the stirrup height from the top of the cap. The minimum side stirrup heights (H2 or H3) is 6 1/2" (3 1/2" for models ending in “44”).
  • The L dimension may vary depending on the width of the side stirrup (W3 or W4).
  • Column caps may be ordered without the column straps for field welding to a steel column. Specify “No Straps” when ordering. Weld by designer. Full loads apply for the beam and the post cap.
  • Straps may be rotated where W1 ≥ W2.

Installation

  • Use all specified fasteners; see General Notes
  • Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than bolt diameter (per 2015 and 2018 NDS 12.1.3.2)

Ordering Information

Ordering Example:

  • An ECCLR66 with W3 = 3 5/8", H2 = 7 1/2" is an ECC66 end column cap with a 4x beam on the right side (specify direction left or right for stirrup) and stirrup seat 1" below the cap seat
  • Configurations for many different beams or beam-to-beam combinations can be manufactured (refer to Post-to-Beam Selector).
