Simpson Strong-Tie ECCLQM5.50G-KT ECCLQM™ 5-1/2 in. L-Shape End Column Cap for Masonry w/ SDS Screws
Hangers

Simpson Strong-Tie ECCLQM5.50G-KT ECCLQM™ 5-1/2 in. L-Shape End Column Cap for Masonry w/ SDS Screws

SKU: ECCLQM5.50G-KT
📦 Available to Order — Add to Quote
Madison Township Lumber • Matawan, NJ
(732) 566-5555
Share

Product Description

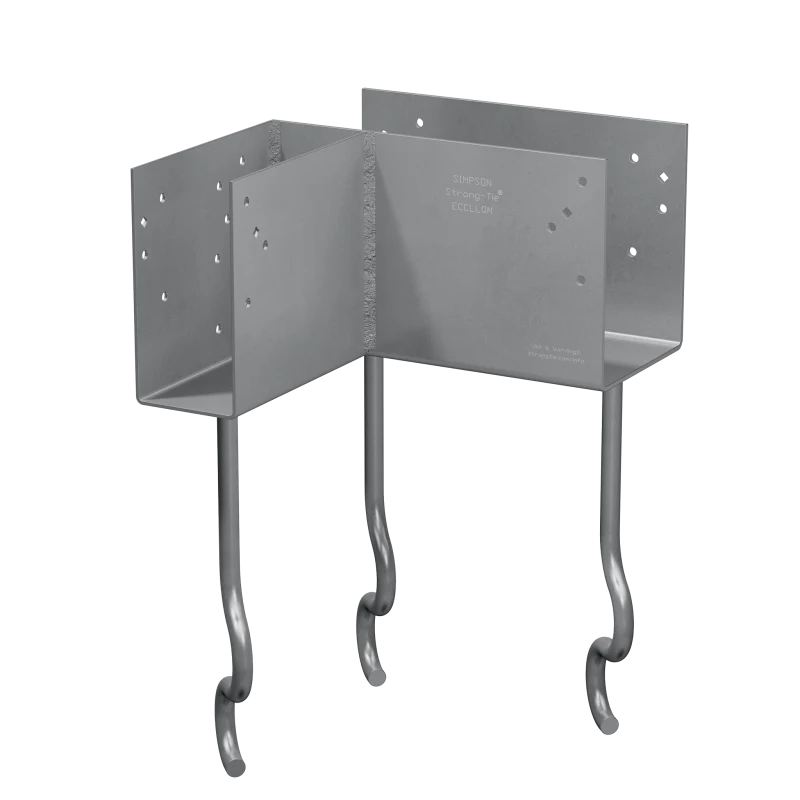

The ECCLQM embedded column cap is designed for use in raised pier foundations and applications where heavy timbers rest on concrete or concrete block columns. The heavy-gauge beam seat and unique Simpson Strong-Tie® SSTB® anchor bolts provide the high uplift and lateral resistance needed to help resist high-wind events. The ECCLQM-KT is intended for use at the building corners.

Available Sizes & Options

SKUProductStatus
ECCLQM5.50G-KTSimpson Strong-Tie ECCLQM5.50G-KT ECCLQM™ 5-1/2 in. L-Shape End Column Cap for Masonry w/ SDS Screws CurrentAvailable
IUS1811188Simpson Strong-Tie 1 3/4 x 11-7/8 I Joist HangerAvailable
HUS18110Simpson Strong-Tie 1 3/4 x 9 1/2 Sloped Face Mount HangerAvailable
SUR18111Simpson Strong-Tie 1-3/4 x 11-7/8 Skew 45 R I-beam/lvlAvailable
IUS18195Simpson Strong-Tie 1-3/4 x 9-1/2 Side Mount SingAvailable
1212HLSimpson Strong-Tie 1212HL HL 12 in. x 12 in. 7-Gauge Galvanized Heavy L StrapAvailable
1212HLHDGSimpson Strong-Tie 1212HLHDG HL 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy L StrapAvailable
1212HLPCSimpson Strong-Tie 1212HLPC HLPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental L StrapAvailable
1212HTSimpson Strong-Tie 1212HT HT 12 in. x 12 in. 7-Gauge Galvanized Heavy T StrapAvailable
1212HTHDGSimpson Strong-Tie 1212HTHDG HT 12 in. x 12 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1212HTPCSimpson Strong-Tie 1212HTPC HTPC 12 in. x 12 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1212LSimpson Strong-Tie 1212L 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212L-RSimpson Strong-Tie 1212L-R 12 in. x 12 in. 14-Gauge Galvanized L StrapAvailable
1212TSimpson Strong-Tie 1212T 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
1212T-RSimpson Strong-Tie 1212T-R 12 in. x 12 in. 14-Gauge Galvanized T StrapAvailable
128TSimpson Strong-Tie 128T 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
128T-RSimpson Strong-Tie 128T-R 12 in. x 8 in. 14-Gauge Galvanized T StrapAvailable
1616HTSimpson Strong-Tie 1616HT HT 16 in. x 16 in. 7-Gauge Galvanized Heavy T StrapAvailable
1616HTHDGSimpson Strong-Tie 1616HTHDG HT 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable
1616HTPCSimpson Strong-Tie 1616HTPC HTPC 16 in. x 16 in. 7-Gauge Black Powder-Coated Ornamental T StrapAvailable
1616HTQSimpson Strong-Tie 1616HTQ HTQ 16 in. x 16 in. 7-Gauge Hot-Dip Galvanized Heavy T StrapAvailable

Product Details

Key Features

  • MSTQM straps to make the connection from the ECCLQM to the wall framing
  • Screws are configured to provide high uplift design values
  • Certified welds for confidence in strength and loading
  • SSTB offset allows flush installation to edge of pier
  • SSTBs spaced to fit in standard CMU cells

Material

  • 7 gauge

Finish

  • Column caps — hot-dip galvanized or Simpson Strong-Tie gray paint; strap (MSTQM) — galvanized (ZMAX®)

Options

  • Available in widths up to nominal 7-1/8" width.
  • For variable widths on side stirrups, specify W3 (3 1/4" to 7 1/8") and add an “X” to the end of the core model name. Example: ECCLQM5.50GX-KT, W3 = 3 5/8".

Installation

  • Install 1/4" x 2 1/2" Strong-Drive® SDS Heavy-Duty Connector screws (provided) in all round holes. (Lag screws will not achieve the same load.)
  • Min. (4) #7 vertical rebar (total for pier).
  • No additional welding is allowed.

Ordering Information

  • Configurations for many different beams or beam-to-beam combinations can be manufactured (refer to Post-to-Beam Selector).
